MTU 4000 PARTS | X59414100022 | RESTRICTOR

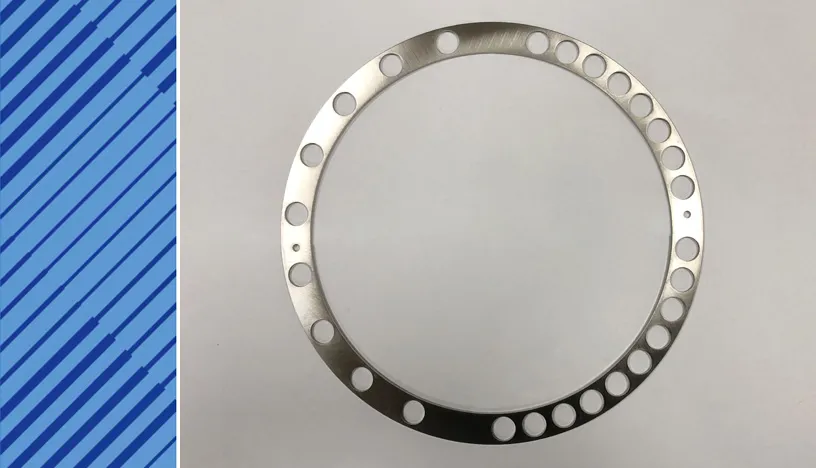

X59414100022 RESTRICTOR

Other
OtherX52601600011 GASKETX59407700021 ADAPTATEUR P. CONDUITE HPX59499100015 HOSE FOR AIR COMPRESSORX59499100014 HOSE FOR AIR COMPRESSOREX59403800070/42 CONROD0005357333 SPEED SENSOR0005357833 SPEED SENSORX00E50207196 PRESSURE SENSORX00E50207217 PRESSURE SENSOR0005358133 SPEED SENSOR5241420057 SEALING RINGX54707700072 RELIEF VALVE FOR 4-CYL HP PUMP0005357633 SPEED SENSORX59417200010 STARTER ELECTRIC5249900705 BOLT HEX FLG11506101 NUT23524783 SEAL5244920181 SEALING RING5240382550 BUSHING CONROD SIZE 0XP59612300047 INSULATIONX54920200040/87 WATER PUMP HIGH-TEMPX52499100022 GASKETX54999100010 GASKETX59399100031 GASKETX00008172 GROMMETX59399100033 GROMMET5240111480 GASKET5241880180 GASKETX00004135 GASKETX00038531 HOSE TURBO OIL SUPPL000125013012 WASHER0001800015 PRESSURE REDUCING VA LVE ASSYX52408100007 LINK915005020001 SEALING CONE000912010014 BOLT HEX SOC HD700223010000 BOLT BANJO A125319970245 SEALING RING000908030002 THREAD PLUG5249900605 BOLT HEX CAPXP52799101135 SEAL RING0000160119 SEALING RING5240160153 TUBE INJECTORXP56918300055 OVERFLOW VALVE0005357533 SPEED SENSORX59407700023 HP FUEL LINE5240780824 CONN FUEL RAIL REARX52808100014 FUEL DELIVERY PUMPX52404200043 GASKET FOR CYLINDER HEAD0035352231 PRESSURE SENSOR0049976736 VALVE DRAINX00007116 V-BAND CLAMPX59399100141 BELLOWSX00E50207213 PRESSURE SENSORX57508300091 FUEL FILTER SPIN-ON5240530830 VALVE GUIDEX52404200010 VALVE GUIDEEX52407500064 INJECTORX54799101554 NON-RETURN VALVE WITH BAFFLEX52414700025 INSULATING MAT FOR EXH PIPEX52414100123 GASKET F.EXHAUST MANIFOLDX52412400138 GASKET0090374419 KEYSTONE COMPR RING5260160153 SLEEVEX00011779 GASKETXP52414800015 SEALING RINGX00E50203606/S0002 KNOCKING MODULEX52404200071 GASKET FOR CYLINDER HEADS-20056163 SEALING RINGX52607700009 ADAPTER JACKETEDEX59403700072 PISTONX59403800071/42 CONNECTING ROD5241420780 GASKET23540304/A1 GASKET KIT5240384210 CONROD BEARING SIZE 0-1X00043219 CONROD BEARING SIZE 0-15240332730 CRANKSHAFT BEARING DRIVINGX00016599 BEARING BUSHINGX59301300049 CYLINDER LINER STAGE 0XP59501800123 FILTER ELEMENT5260200305 HOUSING+ROTATING ASM5272010505 SHAFT WAT PUMPX59607700020 ADAPTER FOR HP LINEEX00035690 PISTONEX00008371 PISTONX00E50201372 TEMPERATURE SENSORX52404500056 SPARKPLUGX00E50200176 CONNECTION INTERFACE0001424957 RING EXH MANIFX52408300025 FUEL HAND PUMP5240980281 HOSEX52420300037 THERMAL ACTUATOR5240333407 BEARING THRUST/0-1/LO/SPT5240332608 BEARING THRUST/0-1/UP/RIL5110850960 PISTON RING X52499100815 4/2-WAY SOL. VALVEXP52712100006 FILTER ELEMENTXP52712100005 FILTER ELEMENTXP52712100003 FILTER ELEMENTXP52712100002 FILTER ELEMENT5205304069 SPEED TRANSMITTERX52421300004 ALTERNATOR0219976547 SEAL RING CRANKSHAFT FRONT0219976647 SEAL RING CRANKSHAFT REARXP59408300054 FILTER CARTRIDGEXP59400600004 GASKET KITXP52718300064 GASKET KITXP52718300065 CIRCLIP KITXP52718300060 PAPER INSERTX52808100004 FUEL DELIVERY PUMP8691840027 ROTOR COMPLETE5240530905 EXHAUST VALVE5240531101 INLET VALVE5240550550 BUSHINGX52499100259 ADJUSTING SCREWX52405400013 PUSHROD0000530926 VALVE KEEPER WEDGE5240530120 VALVE SPRING OUTER5240530122 VALVE SPRING INNER5240530805 EXHAUST VALVEX52404100226 INLET VALVEX52404200037 GASKET FOR CYLINDER HEADX52404200052 SEAL RING5240380471 CONROD BOLT0120373618 OIL CONTROL RING0090375019 TAPER FACE COMP RINGX00009806 RECTANGLR-SECT RING5240336702 CRANKSHAFT BEARING SIZE 0-15110804420 TURBINE WHEELX52403100003 CRANKSHAFT BEARING SIZE 0-15240336602 CRANKSHAFT BEARING LOWER HALFX00016024 CRANKSHAFT BEARING SIZE 0-05240332630 CRANKSHAFT BEARING AUX PTO END5240111380 GASKETX00027830 CYLINDER LINER SIZE 0 C235240510110 BEARING CAMSHAFT STD23540455 CENTRIFUGAL OIL FILTER ASM5240114210 CYLINDER LINER SIZE 0X59620600007 THERMAL ACTUATORX59699101095 BANJO SCREWX59620700004 SEAL CARRIERXP00A36400005 FILTER ELEMENTX52407800004 FLOW RESTRICT VALVE0299976748 O-RINGX52499100774 SUPPORT PLATEX52420200075 ROTARY SEALX51699100327 SHAFT SEAL RINGXP59420700027 IMPELLERX59407700014 ADAPTER5272010153 SPACER SLEEVEX00040012 SPEED SENSORX59610100061 BEARING BODY5110251976 WASHERX59610100101 THRUST BEARING8695860572 GASKET KITXP59420300091 SEAL RING5241870380 GASKETX52414100132 GASKET FOR EXHAUST PIPEX56912300043 ACTUATING CYLINDERX59420200235 RESTRICTORX59420200234 RESTRICTORX59420200233 RESTRICTORX59420200238 RESTRICTOR5240384110 CONROD BEARING UPPER HALFXP58420400009 GASKETX00041552 COOLER PLATE X52403800001 CONROD BEARINGXP52618300032 OIL FILTER ELEMENTX00008369 PISTON5410180233 DIAPHRAGM700429038003 O-RINGXP59307500002 O-RINGX52405500190 PROFILE GASKET F CYLINDX00044065 SLEEVE RUBBER
PART NUMBER X59414100022
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION RESTRICTOR
DIMENSIONS N/A
UNIT WEIGHT 0.133 KG
HS CODE 84099900
NATO-VERS.-NR. 4730124003587
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 4000 DIESEL ENGINE PARTS X59414100022 RESTRICTOR

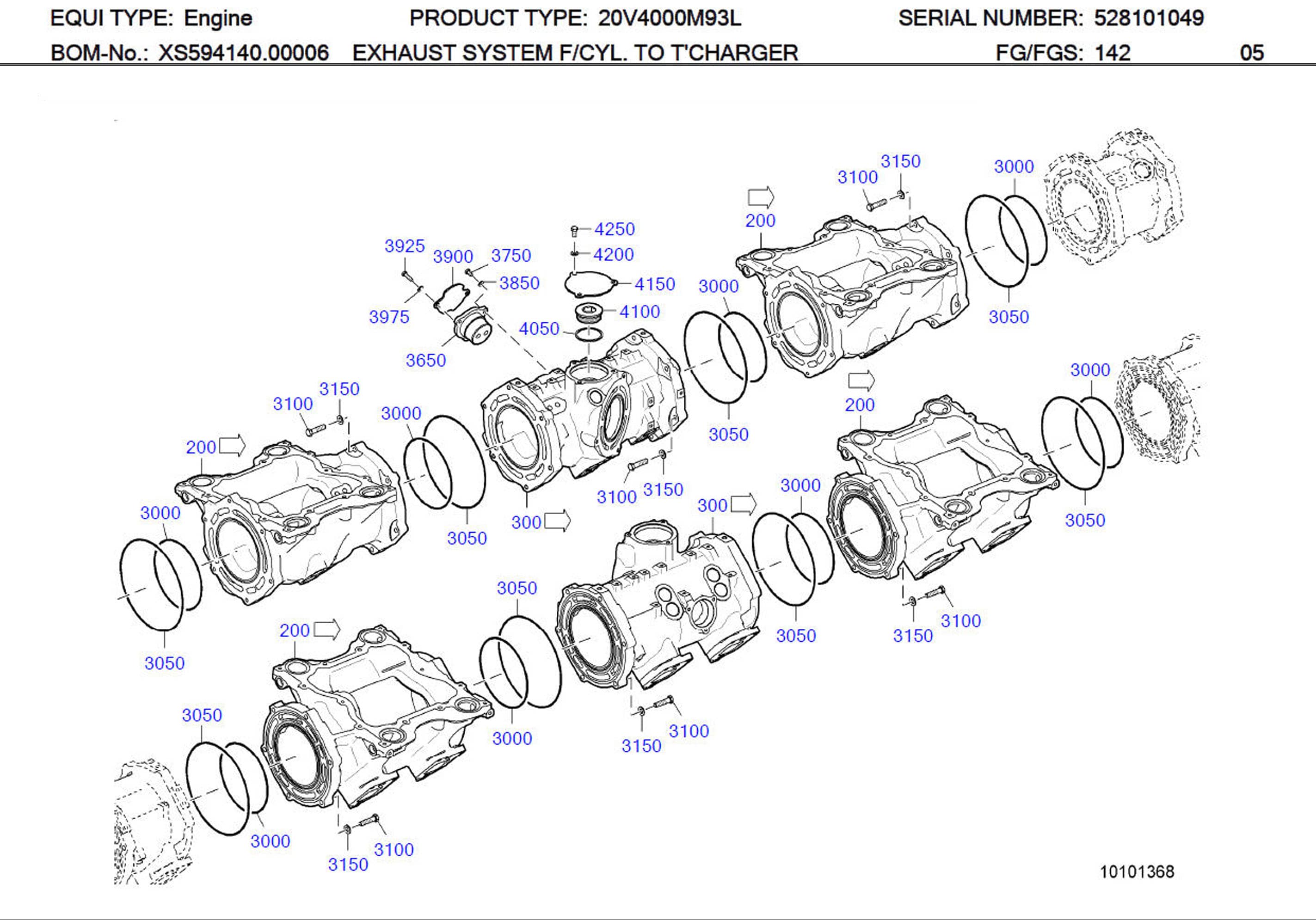

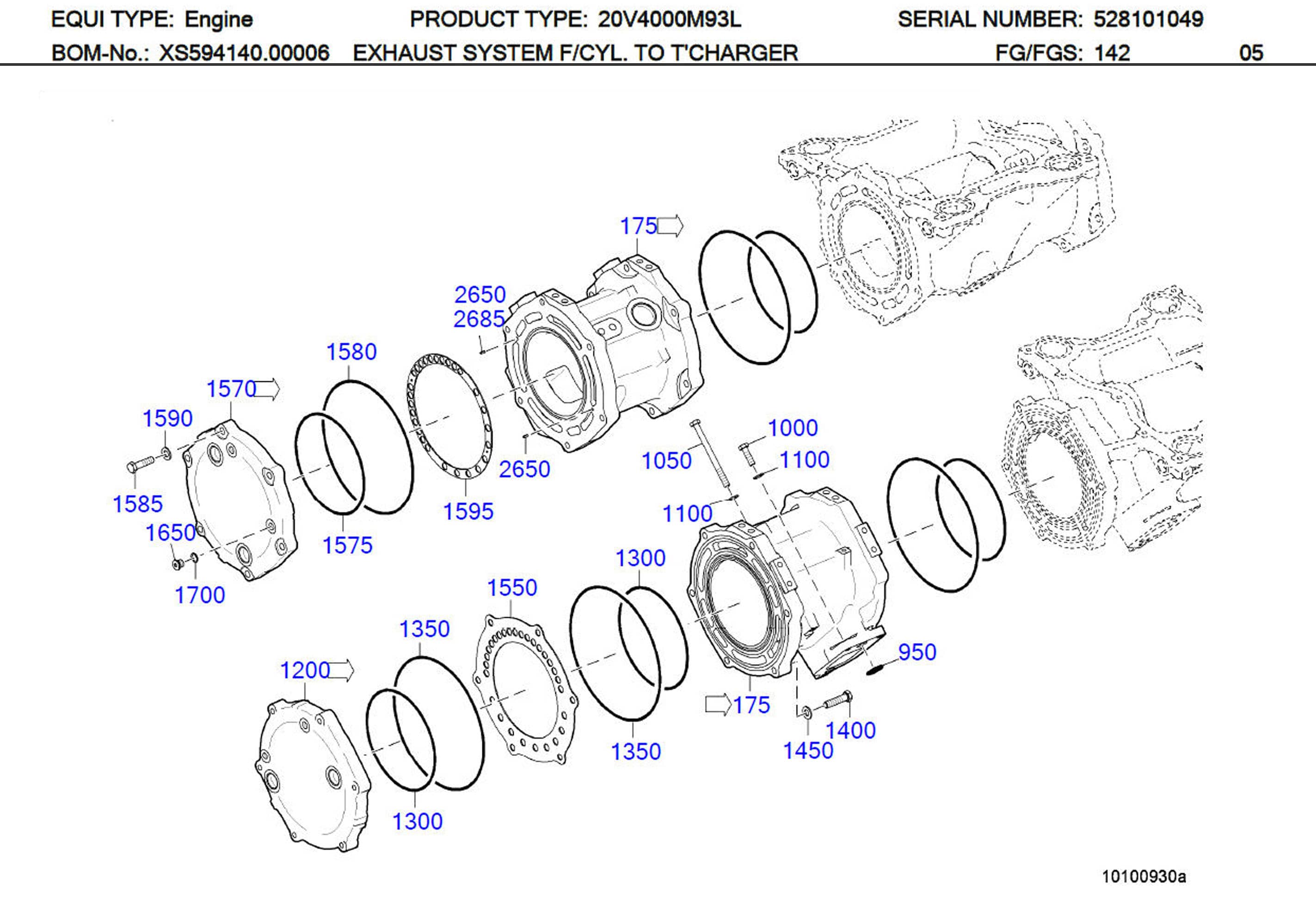

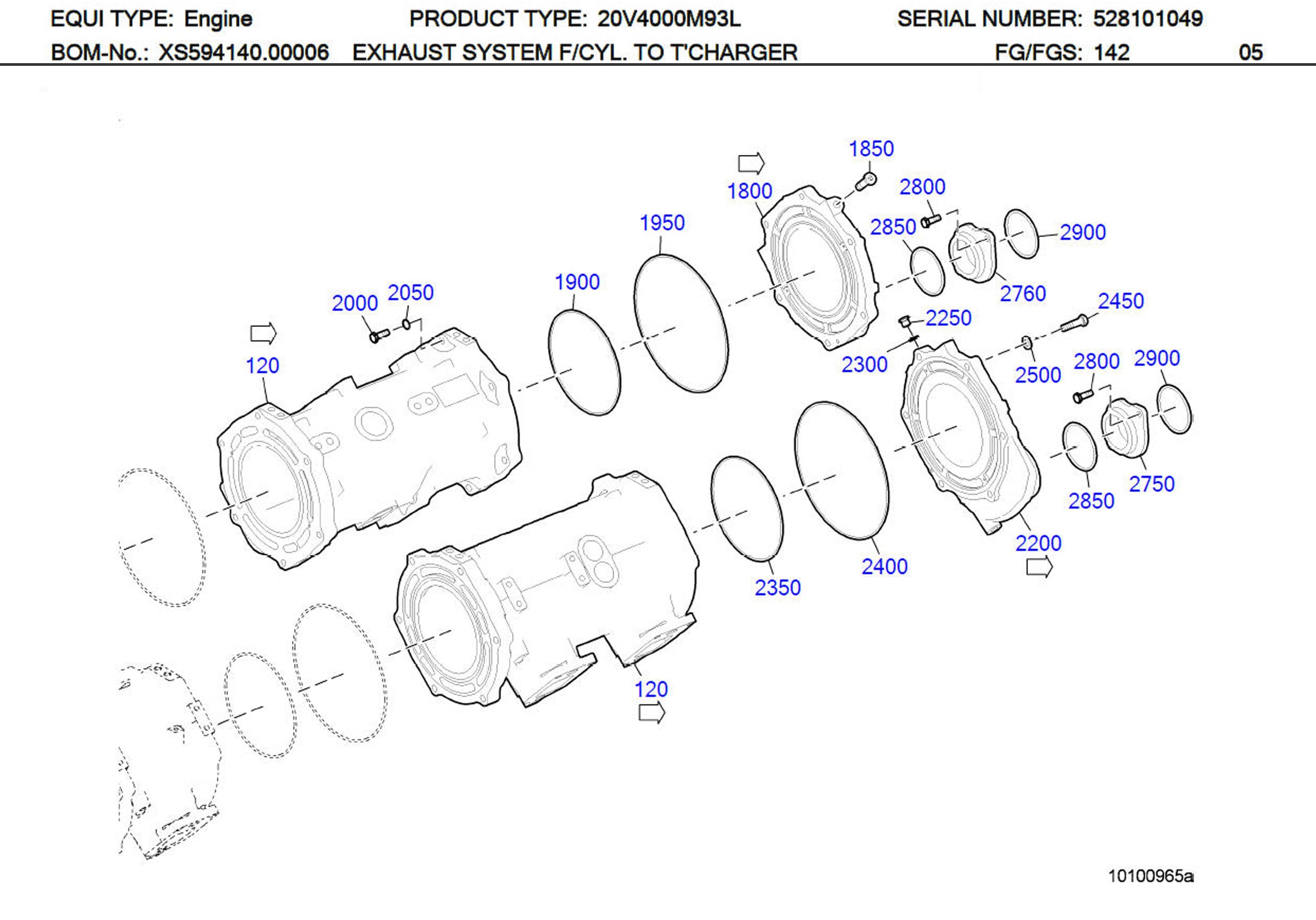

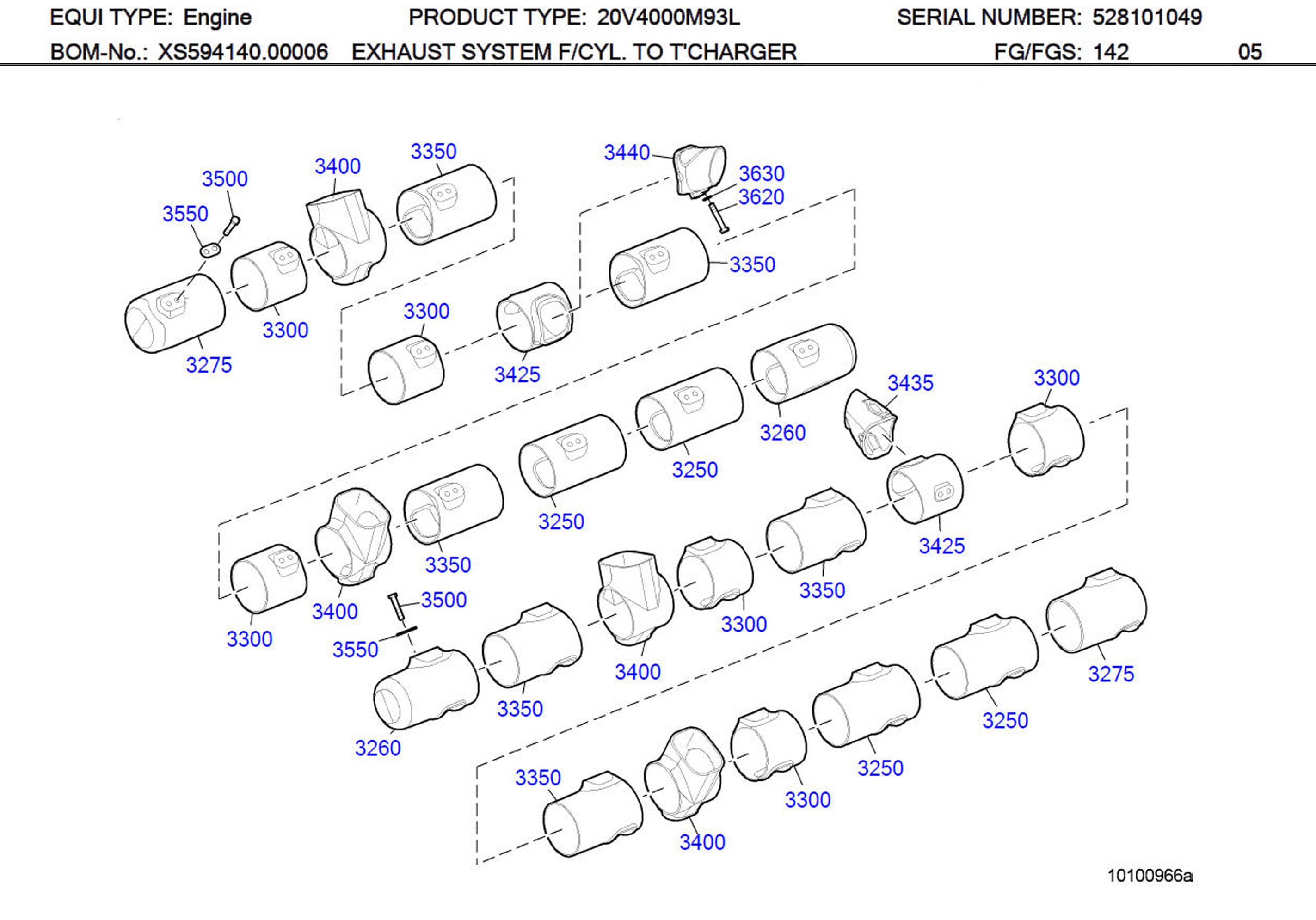

MTU X59414100022 Technical Engineering Exploded View MTU 700429258000 Technical Engineering Exploded View MTU 700429083000 Technical Engineering Exploded View MTU X59414100012 Technical Engineering Exploded View

MTU 4000 DIESEL ENGINE PARTS X59414100022 RESTRICTOR

C/N Description Part-Number Qty
120 EXHAUST HOUSING X59414100003 002
175 EXHAUST HOUSING FOR 1 CYLINDER X59414100005 004
200 EXHAUST HOUSING X59414100007 004
300 EXHAUST HOUSING X59414100009 002
950 O-RING 700429024000 020
1000 HEX SCREW 000000003326 040
1050 HEX SCREW 000000004400 020
1100 WASHER 000125010524 060
1200 END COVER X59414100020 001
1300 O-RING 700429194000 002
1350 O-RING 700429258000 002
1400 HEX SCREW 000000003437 006
1450 WASHER 000125013012 006
1550 RESTRICTOR X59414100023 001
1570 END COVER X59414100029 001
1575 O-RING 700429194000 001
1580 O-RING 700429258000 001
1585 HEX SCREW 000000004743 006
1590 WASHER 000125013012 006
1595 RESTRICTOR X59414100022 001
1650 THREAD PLUG 000908014001 004
1700 COPPER SEALING RING 007603014102 004
1800 CONNECTING PIECE X59414100018 001
1850 PLUG 735210018000 001
1900 O-RING 700429194000 001
1950 O-RING 700429258000 001
2000 HEX SCREW 000000003437 006
2050 WASHER 000125013012 006
2200 CONNECTING PIECE X59414100016 001
2250 THREAD PLUG 000908014001 001
2300 COPPER SEALING RING 007603014102 001
2350 O-RING 700429194000 001
2400 O-RING 700429258000 001
2450 HEX SCREW 000000004743 006
2500 WASHER 000125013012 006
2650 PIN SPRING 18-8 000000003948 002
2685 SPRING PIN 001481004029 002
2750 FLANGE 5262030539 001
2760 FLANGE X52620300004 001
2800 HEX SCREW 000000003021 004
2850 O-RING 700429080001 002
2900 O-RING 700429083000 002
3000 O-RING 700429194000 010
3050 O-RING 700429258000 010
3100 HEX SCREW 000000003437 060
3150 WASHER 000125013012 060
3250 EXHAUST LINE INNER ELEMENT X59414100011 004
3260 EXHAUST LINE INNER ELEMENT X59414100027 002
3275 EXHAUST LINE INNER ELEMENT X59414100028 002
3300 EXHAUST PIPE X59414100012 006
3350 EXHAUST PIPE X59414100013 006
3400 EXHAUST PIPE TO TURBOCHARGER X52814100016 004
3425 EXHAUST LINE X59414100015 002
3435 EXHAUST PIPE X59414100024 001
3440 EXHAUST PIPE X59414100025 001
3500 HEX SCREW 204017012032 052
3550 SPACER X59614100003 026
3620 HEX SCREW 000000001710 004
3630 WASHER 8379902540 004
3650 RETAINER FOR EXH. PIPE X59414100035 002
3750 HEX SCREW 304017008081 006
3850 WASHER 000125008427 006
3900 COVER PLATE X59414100038 002
3925 HEX SCREW 204017008022 004
3975 WASHER 000125008427 004
4050 SEALING RING 007603065100 001
4100 PLUG 000908064000 001
4150 BLIND FLANGE X59614100002 001
4200 WASHER 000125010524 003
4250 HEX SCREW 000000003020 003

MTU 4000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 4000 M63 1000 1800 170/210 (6.7/8.3)
12V 4000 M63 1500 1800 170/210 (6.7/8.3)
12V 4000 M65L 1680 1800 170/210 (6.7/8.3)
16V 4000 M63L 2240 1800 170/210 (6.7/8.3)
16V 4000 M65L 2240 1800 170/210 (6.7/8.3)
8V 4000 M54R 746 1600 170/210 (6.7/8.3)
8V 4000 M55RN 746 1600 170/210 (6.7/8.3)
8V 4000 M54 895 1800 170/210 (6.7/8.3)
8V 4000 M53 950 1800 170/210 (6.7/8.3)
12V 4000 M55R 1119 1600 170/210 (6.7/8.3)
12V 4000 M53R 1140 1600 170/210 (6.7/8.3)
12V 4000 M54 1193 1800 170/210 (6.7/8.3)
12V 4000 M64 1398 1800 130/150 (5.1/5.9)
12V 4000 M93 2340 2100 165/190 (6.5/7.5)
12V 4000 M73L 2160 2050 170/210 (6.7/8.3)
16V 4000 M73 2560 1970 170/210 (6.7/8.3)
12V 4000 M93L 2580 2100 170/210 (6.7/8.3)
20V 4000 M65L 2800 1800 170/210 (6.7/8.3)
