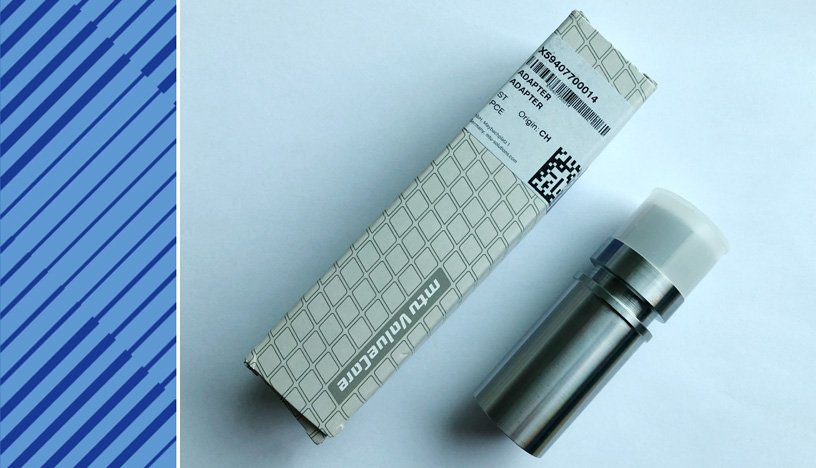

PART NUMBER X59407700014
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION ADAPTER
DIMENSIONS DROSSEL-DURCHM 1,1MM
UNIT WEIGHT 0.337 KG
HS CODE 84219990
NATO-VERS.-NR. 2910123891978
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 4000 ENGINE SPARE PARTS X59407700014 ADAPTER

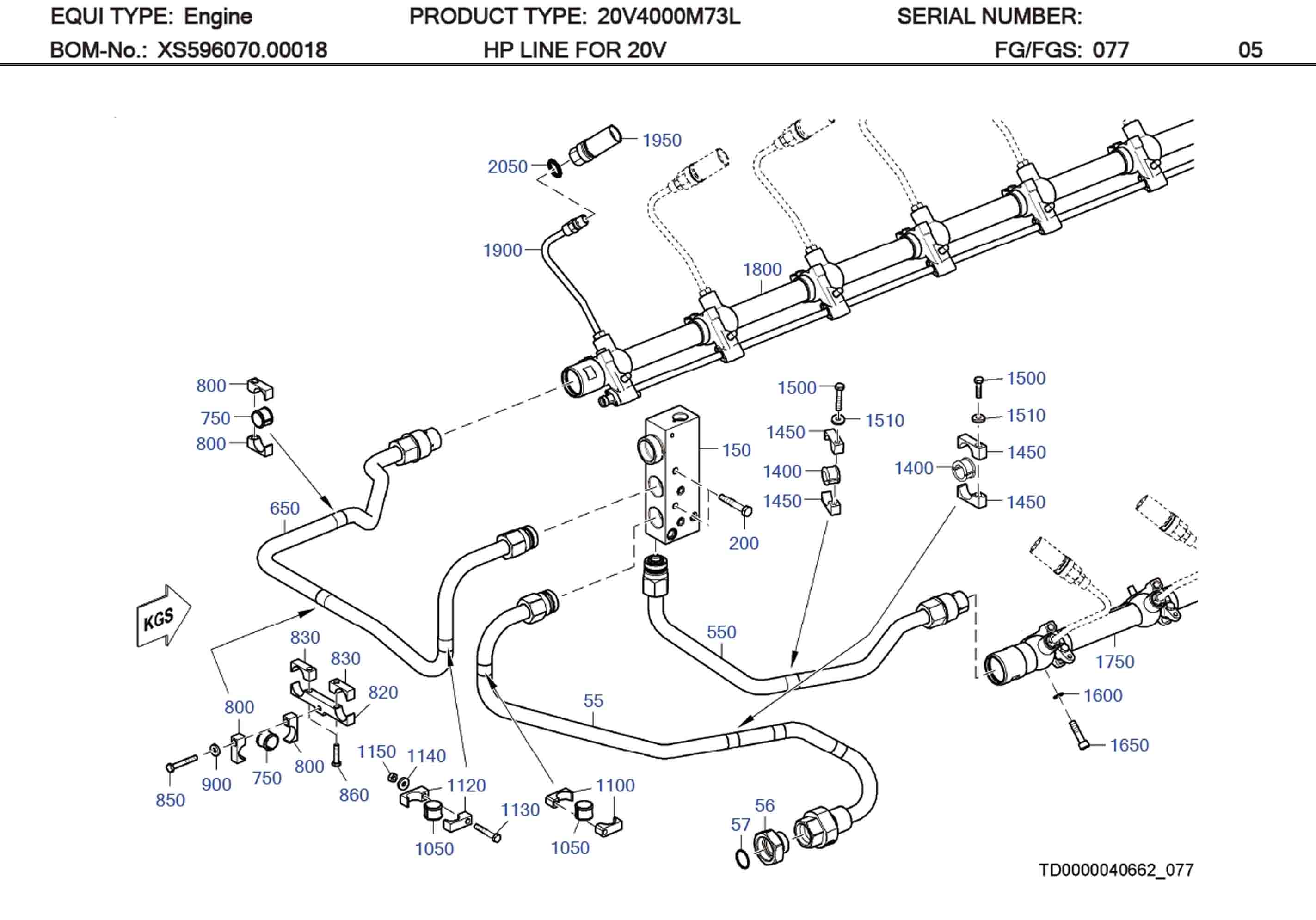

MTU X59407700014 Technical Engineering Exploded View

MTU 4000 ENGINE SPARE PARTS X59407700014 ADAPTER

C/N Description Part-Number Qty
50 HP FUEL LINE FROM HP PUMP X59507700029 001
56 ADAPTER FOR HP LINE X59407700021 001
57 O-RING 700429028004 001
150 FUEL DISTRIBUTOR X59407700038 001
200 HEX SCREW 304017010032 002
550 HP FUEL LINE DOUBLE-WALLED, LEFT X59507700027 001
650 HP FUEL LINE DOUBLE-WALLED, RIGH X59507700028 001
750 GROMMET X00027974 002
800 CLAMP HALF TUBE 1/1 D9-28 X59399100003 004
820 RETAINER FOR HP LINE X52607700002 001
830 RETAINER X52607700003 002
850 HEX SCREW 304017008088 001
860 HEX SCREW 304017008084 002
900 WASHER 007349008002 001
1050 GROMMET X00027974 002
1100 PIPE HALF-CLAMP X59399100211 002
1120 CLAMP HALF TUBE 1/1 D9-28 700325028100 002
1130 HEX SCREW 304017008088 001
1140 WASHER 007349008002 001
1150 NUT HEX 8 A3C 304032008014 001
1400 GROMMET X59399100008 002
1450 CLAMP HALF TUBE 56 X C 21X16 X59399100007 004
1500 HEX SCREW 000000004164 002
1510 WASHER 007349008002 002
1600 WASHER 200433010500 020
1750 HP ACCUMULATOR DOUBLE-WALLED, LEFT X59607700002 001
1800 HP ACCUMULATOR DOUBLE-WALLED, RIGH X59607700001 001
1900 HP FUEL LINE X59407700023 020
1950 ADAPTER X59407700014 020
2050 O-RING 700429024000 020

X59407700014 SUPERSEDED PART AND EFFECTIVE DATE

X59407700014 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 X59407700014 X52607700001 N/A
02 X59407700014 X59407700014 2009/07/01

MTU 4000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 4000 M63 1000 1800 170/210 (6.7/8.3)
12V 4000 M63 1500 1800 170/210 (6.7/8.3)
12V 4000 M65L 1680 1800 170/210 (6.7/8.3)
16V 4000 M63L 2240 1800 170/210 (6.7/8.3)
16V 4000 M65L 2240 1800 170/210 (6.7/8.3)
8V 4000 M54R 746 1600 170/210 (6.7/8.3)
8V 4000 M55RN 746 1600 170/210 (6.7/8.3)
8V 4000 M54 895 1800 170/210 (6.7/8.3)
8V 4000 M53 950 1800 170/210 (6.7/8.3)
12V 4000 M55R 1119 1600 170/210 (6.7/8.3)
12V 4000 M53R 1140 1600 170/210 (6.7/8.3)
12V 4000 M54 1193 1800 170/210 (6.7/8.3)
12V 4000 M64 1398 1800 130/150 (5.1/5.9)
12V 4000 M93 2340 2100 165/190 (6.5/7.5)
12V 4000 M73L 2160 2050 170/210 (6.7/8.3)
16V 4000 M73 2560 1970 170/210 (6.7/8.3)
12V 4000 M93L 2580 2100 170/210 (6.7/8.3)
20V 4000 M65L 2800 1800 170/210 (6.7/8.3)
