X00040012 SPEED SENSOR

Other
Other XP00A36400005 FILTER ELEMENT X52407800004 FLOW RESTRICT VALVE 0299976748 O-RING X52499100774 SUPPORT PLATE X52420200075 ROTARY SEAL X51699100327 SHAFT SEAL RING XP59420700027 IMPELLER 5272010153 SPACER SLEEVE X59407700014 ADAPTER 23540455 CENTRIFUGAL OIL FILTER ASM X00040012 SPEED SENSOR 5110251976 WASHER X59610100061 BEARING BODY X59610100101 THRUST BEARING 8695860572 GASKET KIT XP59420300091 SEAL RING 5241870380 GASKET X52414100132 GASKET FOR EXHAUST PIPE X56912300043 ACTUATING CYLINDER X59420200235 RESTRICTOR X59420200234 RESTRICTOR X59420200233 RESTRICTOR X59420200238 RESTRICTOR 5240384110 CONROD BEARING UPPER HALF XP58420400009 GASKET X00041552 COOLER PLATE X52403800001 CONROD BEARING XP52618300032 OIL FILTER ELEMENT X00008369 PISTON 5410180233 DIAPHRAGM 700429038003 O-RING XP59307500002 O-RING X52405500190 PROFILE GASKET F CYLIND EX59403700072 PISTON X59403800071/42 CONNECTING ROD 5241420780 GASKET 23540304/A1 GASKET KIT 5240384210 CONROD BEARING SIZE 0-1 X00043219 CONROD BEARING SIZE 0-1 5240332730 CRANKSHAFT BEARING DRIVING X00016599 BEARING BUSHING X59301300049 CYLINDER LINER STAGE 0 XP59501800123 FILTER ELEMENT 5260200305 HOUSING+ROTATING ASM EX00008371 PISTON X00E50201372 TEMPERATURE SENSOR X52404500056 SPARKPLUG X00E50200176 CONNECTION INTERFACE 0001424957 RING EXH MANIF X52408300025 FUEL HAND PUMP 5240980281 HOSE X00044065 SLEEVE RUBBER X52420300037 THERMAL ACTUATOR 5240333407 BEARING THRUST/0-1/LO/SPT 5240332608 BEARING THRUST/0-1/UP/RIL 5110850960 PISTON RING X52499100815 4/2-WAY SOL. VALVE XP52712100006 FILTER ELEMENT XP52712100005 FILTER ELEMENT XP52712100003 FILTER ELEMENT XP52712100002 FILTER ELEMENT 5205304069 SPEED TRANSMITTER X52421300004 ALTERNATOR 0219976547 SEAL RING CRANKSHAFT FRONT 0219976647 SEAL RING CRANKSHAFT REAR 5240114210 CYLINDER LINER SIZE 0 XP59408300054 FILTER CARTRIDGE XP59400600004 GASKET KIT XP52718300064 GASKET KIT XP52718300065 CIRCLIP KIT XP52718300060 PAPER INSERT X52808100004 FUEL DELIVERY PUMP 8691840027 ROTOR COMPLETE 5240530905 EXHAUST VALVE 5240531101 INLET VALVE 5240550550 BUSHING X52499100259 ADJUSTING SCREW X52405400013 PUSHROD 0000530926 VALVE KEEPER WEDGE 5240530120 VALVE SPRING OUTER 5240530122 VALVE SPRING INNER 5240530805 EXHAUST VALVE X52404100226 INLET VALVE X52404200037 GASKET FOR CYLINDER HEAD X52404200052 SEAL RING 5240380471 CONROD BOLT 0120373618 OIL CONTROL RING 0090375019 TAPER FACE COMP RING X00009806 RECTANGLR-SECT RING 5240336702 CRANKSHAFT BEARING SIZE 0-1 X52403100003 CRANKSHAFT BEARING SIZE 0-1 5240336602 CRANKSHAFT BEARING LOWER HALF X00016024 CRANKSHAFT BEARING SIZE 0-0 5240332630 CRANKSHAFT BEARING AUX PTO END 5240111380 GASKET X00027830 CYLINDER LINER SIZE 0 C23 5240510110 BEARING CAMSHAFT STD
PART NUMBER X00040012
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION SPEED SENSOR
DIMENSIONS N/A
UNIT WEIGHT 0.122 KG
HS CODE 90292038
NATO-VERS.-NR. N/A
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 4000 Parts X00040012 SPEED SENSOR

MTU 4000 Parts X00040012 SPEED SENSOR

MTU 4000 Parts X00040012 SPEED SENSOR

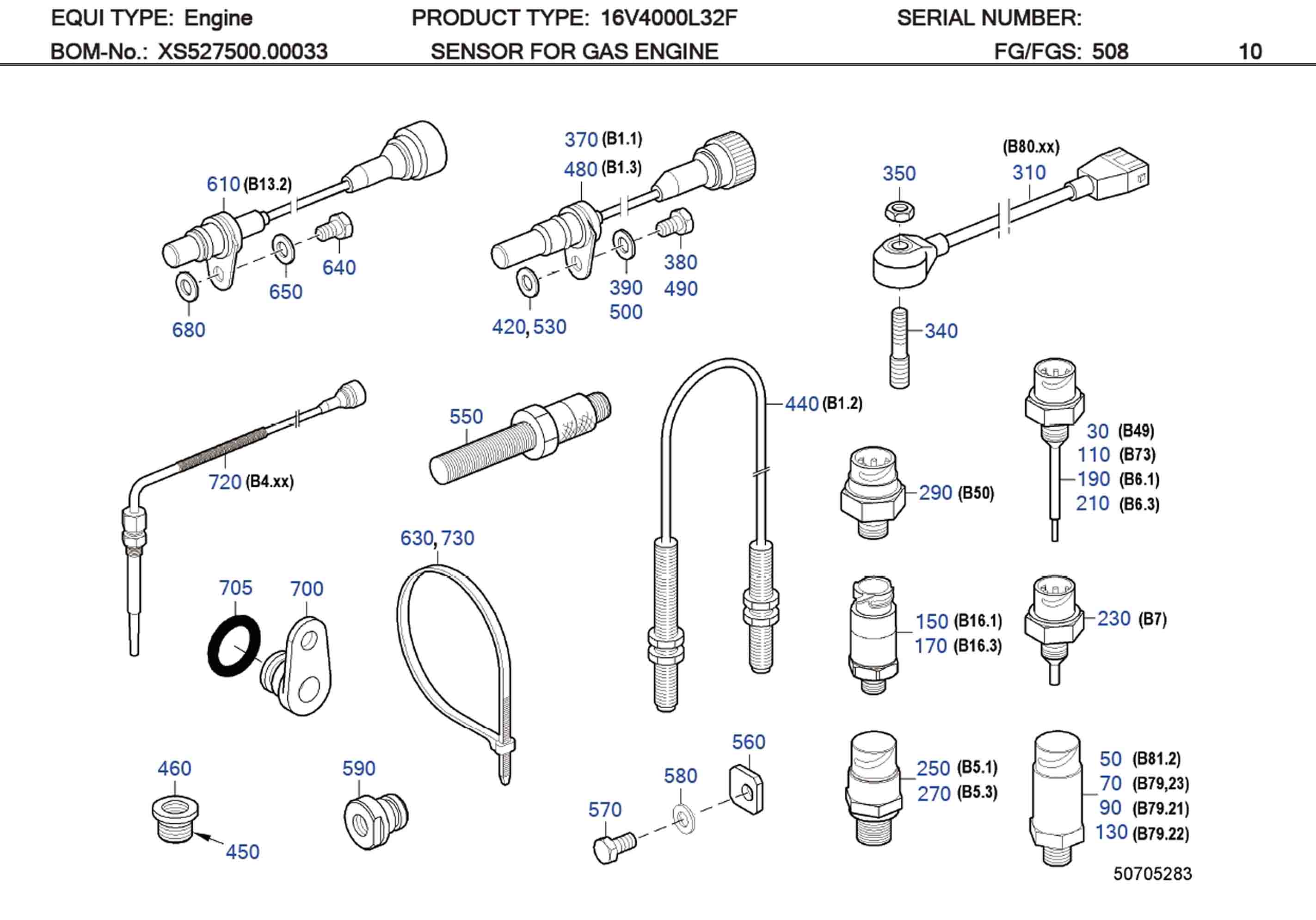

C/N Description Part-Number Qty
30 TEMPERATURE SENSOR X00010488 001
50 PRESSURE SENSOR X00E50201940 001
70 PRESSURE SENSOR X00E50208387 001
90 PRESSURE SENSOR X00E50208387 001
110 TEMPERATURE SENSOR X00010488 001
130 PRESSURE SENSOR X00E50208387 001
150 PRESSURE SENSOR X00E50208388 001
170 PRESSURE SENSOR X00E50208388 001
190 TEMPERATURE SENSOR X00010488 001
210 TEMPERATURE SENSOR X00010488 001
230 TEMPERATURE SENSOR 0005356430 001
250 PRESSURE SENSOR X00E50207201 001
270 PRESSURE SENSOR X00E50207201 001
290 PRESSURE SENSOR 0035352231 001
310 KNOCK SENSOR X00003469 016
340 THREADED PIN X52750700023 016
350 NUT HEX 8 A3C 304032008014 016
370 SPEED SENSOR 0005357533 001
380 HEX SCREW 304017008077 001
390 WASHER 000125008427 001
420 WASHER ADJUSTING 000988008020 002
440 SPEED SENSOR X00E50207476 001
450 SEALANT PIPE THREAD LOCTITE 586 40033 001
460 THREADED BUSHING X52499100050 001
480 SPEED SENSOR 0005357533 001
490 HEX SCREW 304017008077 001
500 WASHER 000125008427 001
530 WASHER ADJUSTING 000988008020 002
550 SPEED SENSOR X00040012 001
560 RETAINER PLATE S-20053795 001
570 HEX SCREW 304017008077 001
580 WASHER 000125008427 001
590 ADAPTER X52401600003 001
610 SPEED SENSOR 0005357433 001
630 QUICK-CATCH CLAMP 0035315081 002
640 HEX SCREW 304017008077 003
650 WASHER 000125008427 003
680 WASHER ADJUSTING 000988008020 002
700 PLUG 5369970635 002
705 O-RING 700429015000 002
720 TEMPERATURE SENSOR X00E50209610 016
730 QUICK-CATCH CLAMP 0035315081 032

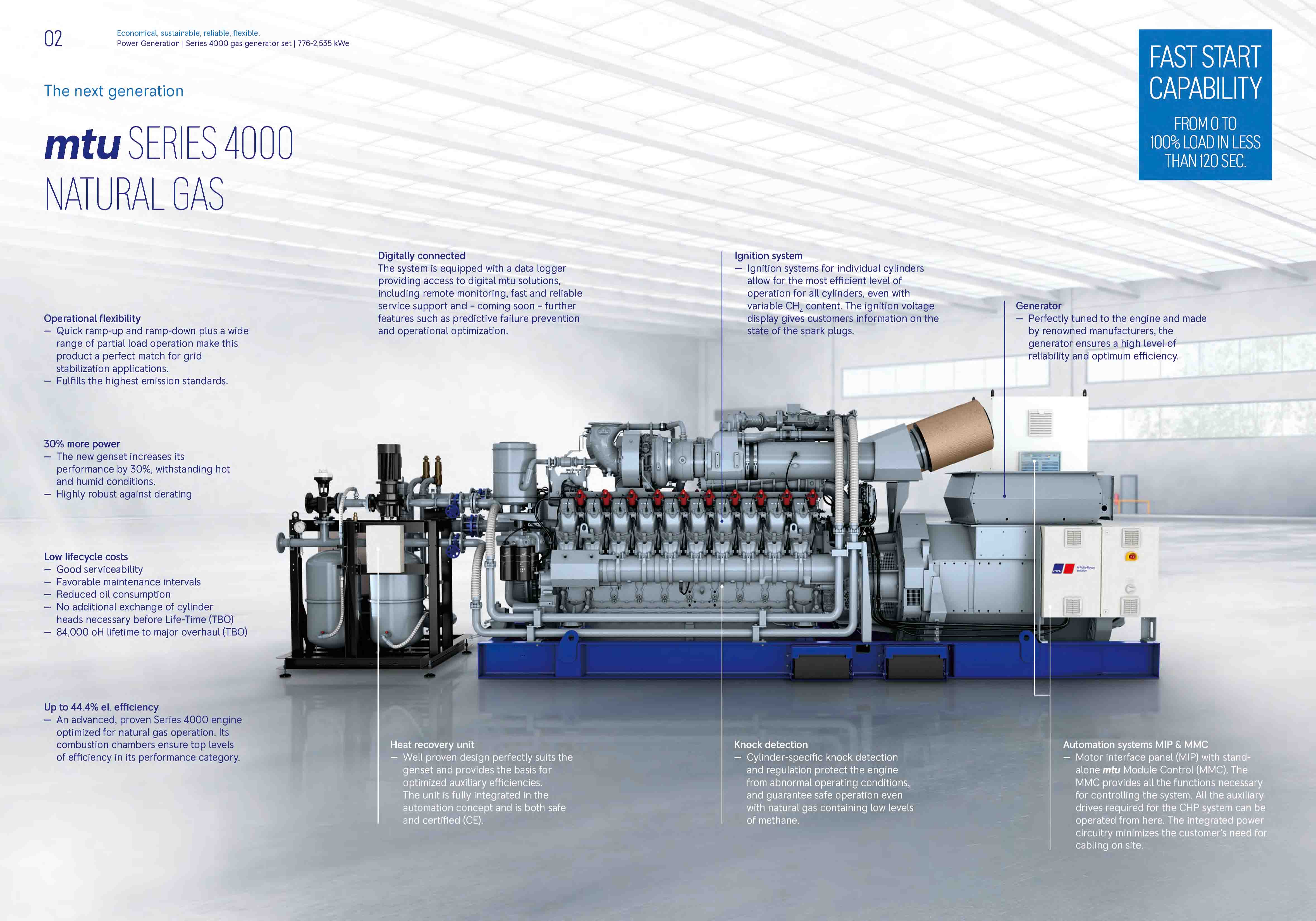

MTU 4000 GAS Engine Models & Specifications

MTU 4000 GAS Family

MTU 4000 GAS Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
16V 4000 L32 1542 1500 170/210 (6.7/8.3)
16V 4000 L33 1542 1500 170/210 (6.7/8.3)
16V 4000 L64FNER 2014 1500 170/210 (6.7/8.3)
12V 4000 L64FB 2106 1500 170/210 (6.7/8.3)
8V 4000 L33 764 1500 170/210 (6.7/8.3)
12V 4000 L33 1272 1500 170/210 (6.7/8.3)
8V 4000 L32 764 1500 170/210 (6.7/8.3)
20V 4000 L64FNER 2516 1500 170/210 (6.7/8.3)
16V 4000 L64FB 1507 1500 170/210 (6.7/8.3)
20V 4000 L32 1934 1500 170/210 (6.7/8.3)
20V 4000 L33 2120 1500 170/210 (6.7/8.3)
