| PART NUMBER | XP59307500002 |
| ENGINE TYPE | MTU 4000 ENGINE |

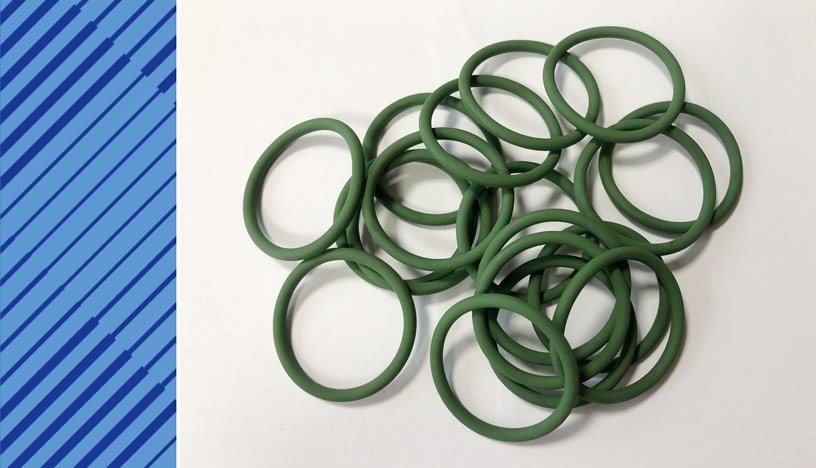

| DESCRIPTION | O-RING |
| DIMENSIONS | 36,0±0,4 X 3,6±0,11 |
| UNIT WEIGHT | 3.000 GRM |
| HS CODE | 40169300 |
| NATO-VERS.-NR. | 5331123937649 |

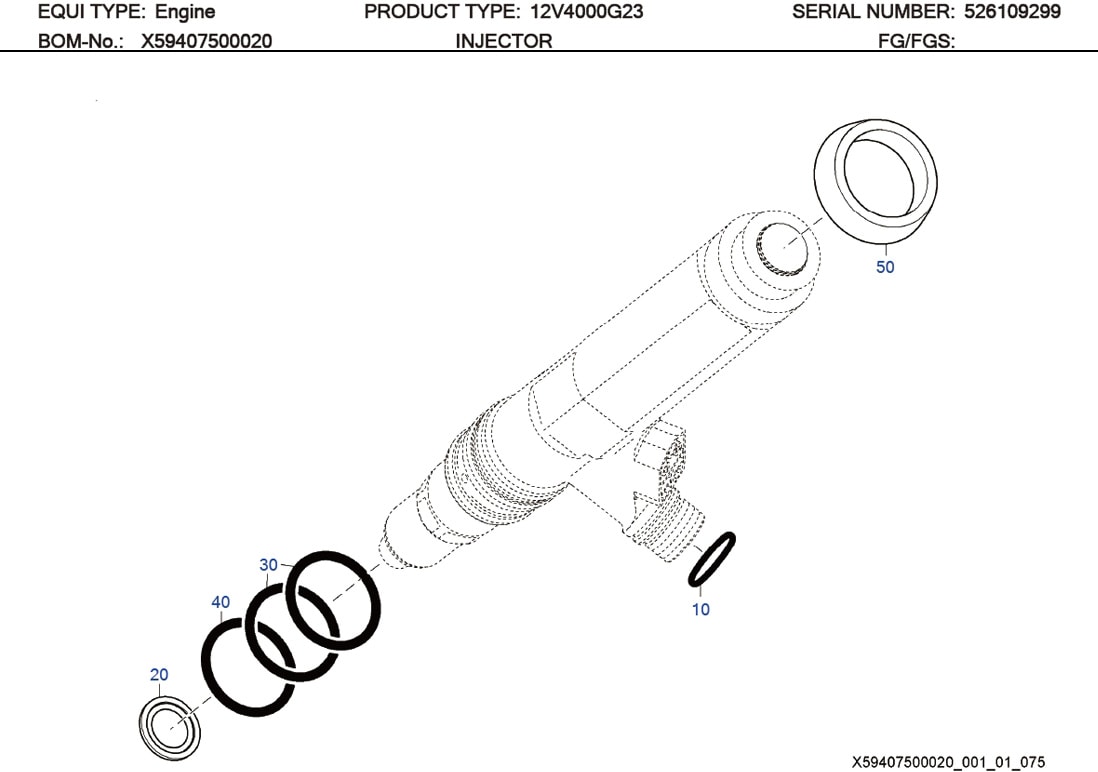

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 10 | O-RING | 700429021001 | 001 |
| 20 | SEALING RING | 0000160119 | 001 |
| 30 | O-RING | 700429038003 | 002 |
| 40 | O-RING | XP59307500002 | 001 |
| 50 | DAMPER RING FOR INJECTOR | X00009196 | 001 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | XP59307500002 | XP59307500002 | N/A |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 4000 R43 | 1000 | 1800 | 170/210 (6.7/8.3) |
| 8V 4000 R43L | 1200 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R43 | 1500 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R43L | 1800 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 R43R | 2000 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 R43 | 2200 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 R43L | 2400 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R43 | 2700 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R43L | 3000 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R63R | 2700 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R63 | 3000 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R63L | 3300 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R54 | 1800 | 1800 | 130/150 (5.1/5.9) |
| 16V 4000 C11 | 1715 | 1500 | 165/190 (6.5/7.5) |
| 16V 4000 R54 | 2400 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R64 | 1500 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R84 | 1800 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 R64 | 2000 | 1800 | 170/210 (6.7/8.3) |
