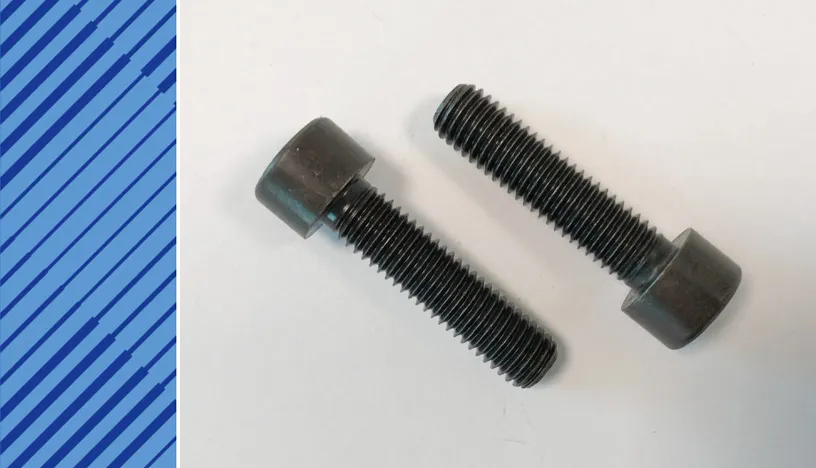

MTU 4000 PARTS | 000912010014 | BOLT HEX SOC HD

000912010014 BOLT HEX SOC HD

Other
Other X00008172 GROMMET X59399100033 GROMMET X59414100022 RESTRICTOR 5240111480 GASKET 5241880180 GASKET X00004135 GASKET X00038531 HOSE TURBO OIL SUPPL 000125013012 WASHER 0001800015 PRESSURE REDUCING VA LVE ASSY X52408100007 LINK 915005020001 SEALING CONE 700223010000 BOLT BANJO A12 5319970245 SEALING RING 000908030002 THREAD PLUG 5249900605 BOLT HEX CAP XP52799101135 SEAL RING 0000160119 SEALING RING 5240160153 TUBE INJECTOR XP56918300055 OVERFLOW VALVE 0005357533 SPEED SENSOR X59407700023 HP FUEL LINE 5240780824 CONN FUEL RAIL REAR X52808100014 FUEL DELIVERY PUMP X52404200043 GASKET FOR CYLINDER HEAD 0035352231 PRESSURE SENSOR 0049976736 VALVE DRAIN X00007116 V-BAND CLAMP X59399100141 BELLOWS X00E50207213 PRESSURE SENSOR X57508300091 FUEL FILTER SPIN-ON 5240530830 VALVE GUIDE X52404200010 VALVE GUIDE EX52407500064 INJECTOR X54799101554 NON-RETURN VALVE WITH BAFFLE X52414700025 INSULATING MAT FOR EXH PIPE X52414100123 GASKET F.EXHAUST MANIFOLD X52412400138 GASKET 0090374419 KEYSTONE COMPR RING 5260160153 SLEEVE X00011779 GASKET XP52414800015 SEALING RING X00E50203606/S0002 KNOCKING MODULE X52404200071 GASKET FOR CYLINDER HEAD S-20056163 SEALING RING X52607700009 ADAPTER JACKETED EX59403700072 PISTON X59403800071/42 CONNECTING ROD 5241420780 GASKET 23540304/A1 GASKET KIT 5240384210 CONROD BEARING SIZE 0-1 X00043219 CONROD BEARING SIZE 0-1 5240332730 CRANKSHAFT BEARING DRIVING X00016599 BEARING BUSHING X59301300049 CYLINDER LINER STAGE 0 XP59501800123 FILTER ELEMENT 5260200305 HOUSING+ROTATING ASM 5272010505 SHAFT WAT PUMP X59607700020 ADAPTER FOR HP LINE EX00035690 PISTON EX00008371 PISTON X00E50201372 TEMPERATURE SENSOR X52404500056 SPARKPLUG X00E50200176 CONNECTION INTERFACE 0001424957 RING EXH MANIF X52408300025 FUEL HAND PUMP 5240980281 HOSE X52420300037 THERMAL ACTUATOR 5240333407 BEARING THRUST/0-1/LO/SPT 5240332608 BEARING THRUST/0-1/UP/RIL 5110850960 PISTON RING X52499100815 4/2-WAY SOL. VALVE XP52712100006 FILTER ELEMENT XP52712100005 FILTER ELEMENT XP52712100003 FILTER ELEMENT XP52712100002 FILTER ELEMENT 5205304069 SPEED TRANSMITTER X52421300004 ALTERNATOR 0219976547 SEAL RING CRANKSHAFT FRONT 0219976647 SEAL RING CRANKSHAFT REAR XP59408300054 FILTER CARTRIDGE XP59400600004 GASKET KIT XP52718300064 GASKET KIT XP52718300065 CIRCLIP KIT XP52718300060 PAPER INSERT X52808100004 FUEL DELIVERY PUMP 8691840027 ROTOR COMPLETE 5240530905 EXHAUST VALVE 5240531101 INLET VALVE 5240550550 BUSHING X52499100259 ADJUSTING SCREW X52405400013 PUSHROD 0000530926 VALVE KEEPER WEDGE 5240530120 VALVE SPRING OUTER 5240530122 VALVE SPRING INNER 5240530805 EXHAUST VALVE X52404100226 INLET VALVE X52404200037 GASKET FOR CYLINDER HEAD X52404200052 SEAL RING 5240380471 CONROD BOLT 0120373618 OIL CONTROL RING 0090375019 TAPER FACE COMP RING X00009806 RECTANGLR-SECT RING 5240336702 CRANKSHAFT BEARING SIZE 0-1 5110804420 TURBINE WHEEL X52403100003 CRANKSHAFT BEARING SIZE 0-1 5240336602 CRANKSHAFT BEARING LOWER HALF X00016024 CRANKSHAFT BEARING SIZE 0-0 5240332630 CRANKSHAFT BEARING AUX PTO END 5240111380 GASKET X00027830 CYLINDER LINER SIZE 0 C23 5240510110 BEARING CAMSHAFT STD 23540455 CENTRIFUGAL OIL FILTER ASM 5240114210 CYLINDER LINER SIZE 0 X59620600007 THERMAL ACTUATOR X59699101095 BANJO SCREW X59620700004 SEAL CARRIER XP00A36400005 FILTER ELEMENT X52407800004 FLOW RESTRICT VALVE 0299976748 O-RING X52499100774 SUPPORT PLATE X52420200075 ROTARY SEAL X51699100327 SHAFT SEAL RING XP59420700027 IMPELLER X59407700014 ADAPTER 5272010153 SPACER SLEEVE X00040012 SPEED SENSOR X59610100061 BEARING BODY 5110251976 WASHER X59610100101 THRUST BEARING 8695860572 GASKET KIT XP59420300091 SEAL RING 5241870380 GASKET X52414100132 GASKET FOR EXHAUST PIPE X56912300043 ACTUATING CYLINDER X59420200235 RESTRICTOR X59420200234 RESTRICTOR X59420200233 RESTRICTOR X59420200238 RESTRICTOR 5240384110 CONROD BEARING UPPER HALF XP58420400009 GASKET X00041552 COOLER PLATE X52403800001 CONROD BEARING XP52618300032 OIL FILTER ELEMENT X00008369 PISTON 5410180233 DIAPHRAGM 700429038003 O-RING XP59307500002 O-RING X52405500190 PROFILE GASKET F CYLIND X00044065 SLEEVE RUBBER
PART NUMBER 000912010014
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION BOLT HEX SOC HD
DIMENSIONS M 10 X 40
UNIT WEIGHT 0.032 KG
HS CODE 73181568
NATO-VERS.-NR. 5305121436853
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 4000 ENGINE PARTS 000912010014 BOLT HEX SOC HD

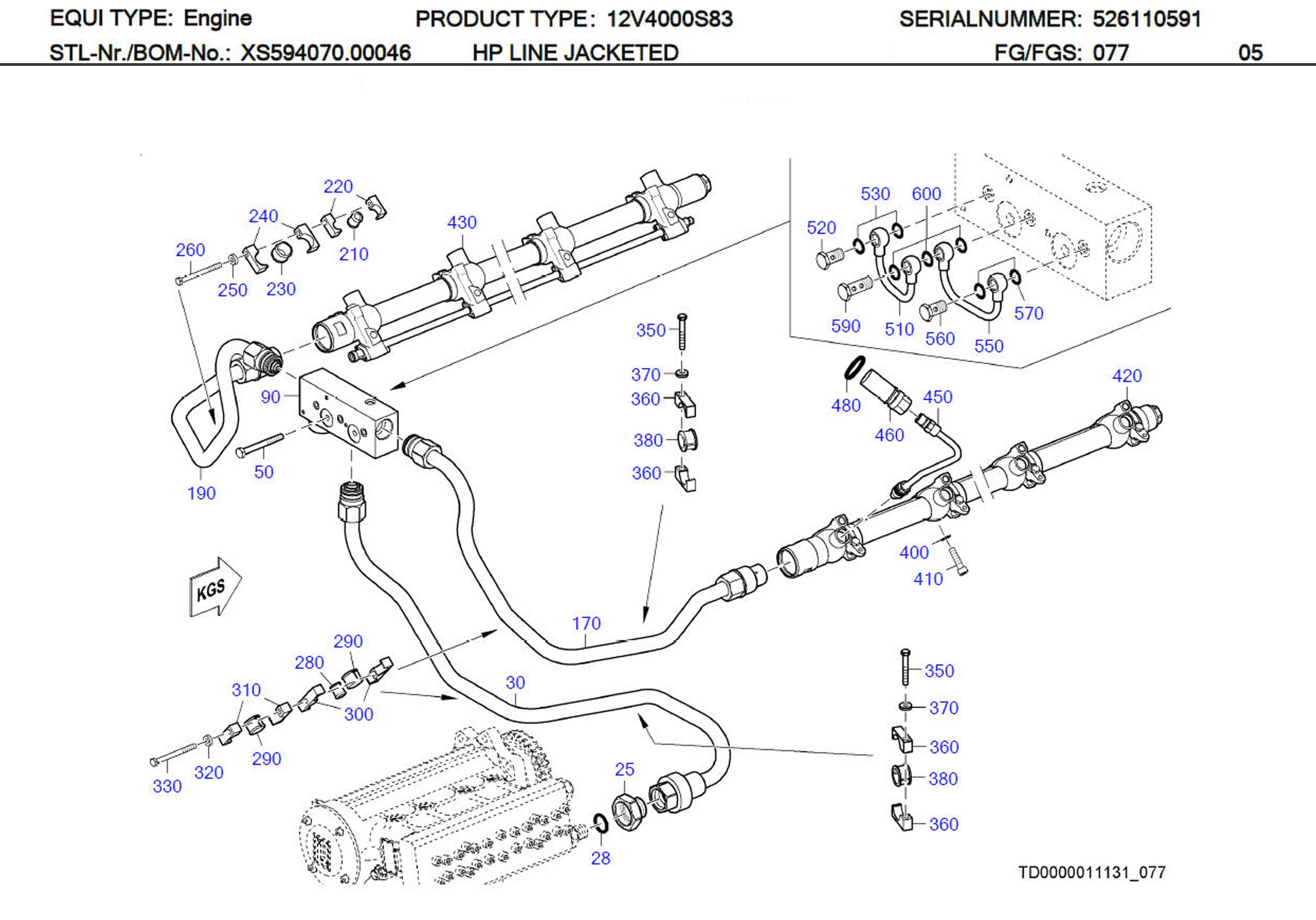

MTU 000912010014 Technical Engineering Exploded View

MTU 4000 ENGINE PARTS 000912010014 BOLT HEX SOC HD

C/N Description Part-Number Qty
25 ADAPTER FOR HP LINE X59407700021 001
28 O-RING 700429028004 001
30 HP FUEL LINE FROM HP PUMP X59407700079 001
50 HEX SCREW 000931010122 002
90 FUEL DISTRIBUTOR X59407700039 001
170 HP FUEL LINE DOUBLE-WALLED, LEFT X59407700077 001
190 HP FUEL LINE DOUBLE-WALLED, RIGH X59407700078 001
210 GROMMET 700327012000 001
220 CLAMP HALF TUBE 1/1 D9-18 700325018100 002
230 GROMMET X00027974 001
240 CLAMP HALF TUBE 1/1 D9-28 X59399100003 002
250 WASHER 007349008002 001
260 HEX SCREW 000000001463 001
280 GROMMET 700327012000 001
290 GROMMET X00027974 002
300 CLAMP HALF TUBE 66 X C 18X16 X59399100002 002
310 CLAMP HALF TUBE 1/1 D9-28 X59399100003 002
320 WASHER 007349008002 001
330 HEX SCREW 000000003496 001
350 HEX SCREW 000000004164 002
360 CLAMP HALF TUBE 56 X C 21X16 X59399100007 004
370 WASHER 007349008002 002
380 GROMMET X59399100008 002
400 WASHER 200433010500 012
410 BOLT HEX SOC HD 000912010014 012
420 HP ACCUMULATOR DOUBLE-WALLED, LEFT X59407700035 001
430 HP ACCUMULATOR DOUBLE-WALLED, RIGH X59407700034 001
450 HP FUEL LINE X59407700023 012
460 ADAPTER JACKETED X52607700009 012
480 O-RING 700429024000 012
510 TUBE FUEL RETURN 2 B ANJO X00039528 001
520 BANJO SCREW 915011004102 001
530 WASHER A COP 007603010110 002
550 TUBE FUEL RETURN DOU BLE BANJO USHAPE X00039530 001
560 BANJO SCREW 915011004102 001
570 WASHER A COP 007603010110 002
590 BOLT BANJO B 6 ADEC 915047006202 001
600 WASHER A COP 007603010110 003

MTU 4000 Series Engines: Oilfield Models and Specifications

MTU 4000 S83 Family

MTU 4000 Series Engines: Oilfield Models and Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
12V 4000 S83 1680 1900 170/210 (6.7/8.3)
12V 4000 S83L 1865 1900 170/210 (6.7/8.3)
16V 4000 S83 2237 1900 170/210 (6.7/8.3)
16V 4000 S83L 2461 1900 170/210 (6.7/8.3)
12V 4000 S81 1678 1900 165/190 (6.5/7.5)
16V 4000 S81 2237 1900 165/190 (6.5/7.5)
12V 4000 T95R 1678 1900 170/210 (6.7/8.3)
12V 4000 T95 1864 1900 170/210 (6.7/8.3)
12V 4000 T95L 1939 1900 170/210 (6.7/8.3)
16V 4000 T95 2237 1900 170/210 (6.7/8.3)
12V 4000 S23 1425 1800 170/210 (6.7/8.3)
16V 4000 S23 1865 1800 170/210 (6.7/8.3)
20V 4000 S53L 3000 1800 170/210 (6.7/8.3)
12V 4000 P63 1350 1500 170/210 (6.7/8.3)
16V 4000 P63 1800 1500 170/210 (6.7/8.3)
20V 4000 P63 2245 1500 170/210 (6.7/8.3)
20V 4000 P83 2425 1800 170/210 (6.7/8.3)
