MTU 4000 Parts | X52407800004 | FLOW RESTRICT VALVE

X52407800004 FLOW RESTRICT VALVE

Other
OtherX52601600011 GASKETX59407700021 ADAPTATEUR P. CONDUITE HPX59499100015 HOSE FOR AIR COMPRESSORX59499100014 HOSE FOR AIR COMPRESSOREX59403800070/42 CONROD0005357333 SPEED SENSOR0005357833 SPEED SENSORX00E50207196 PRESSURE SENSORX00E50207217 PRESSURE SENSOR0005358133 SPEED SENSOR5241420057 SEALING RINGX54707700072 RELIEF VALVE FOR 4-CYL HP PUMP0005357633 SPEED SENSORX59417200010 STARTER ELECTRIC5249900705 BOLT HEX FLG11506101 NUT23524783 SEAL5244920181 SEALING RING5240382550 BUSHING CONROD SIZE 0XP59612300047 INSULATIONX54920200040/87 WATER PUMP HIGH-TEMPX52499100022 GASKETX54999100010 GASKETX59399100031 GASKETX00008172 GROMMETX59399100033 GROMMETX59414100022 RESTRICTOR5240111480 GASKET5241880180 GASKETX00004135 GASKETX00038531 HOSE TURBO OIL SUPPL000125013012 WASHER0001800015 PRESSURE REDUCING VA LVE ASSYX52408100007 LINK915005020001 SEALING CONE000912010014 BOLT HEX SOC HD700223010000 BOLT BANJO A125319970245 SEALING RING000908030002 THREAD PLUG5249900605 BOLT HEX CAPXP52799101135 SEAL RING0000160119 SEALING RING5240160153 TUBE INJECTORXP56918300055 OVERFLOW VALVE0005357533 SPEED SENSORX59407700023 HP FUEL LINE5240780824 CONN FUEL RAIL REARX52808100014 FUEL DELIVERY PUMPX52404200043 GASKET FOR CYLINDER HEAD0035352231 PRESSURE SENSOR0049976736 VALVE DRAINX00007116 V-BAND CLAMPX59399100141 BELLOWSX00E50207213 PRESSURE SENSORX57508300091 FUEL FILTER SPIN-ON5240530830 VALVE GUIDEX52404200010 VALVE GUIDEEX52407500064 INJECTORX54799101554 NON-RETURN VALVE WITH BAFFLEX52414700025 INSULATING MAT FOR EXH PIPEX52414100123 GASKET F.EXHAUST MANIFOLDX52412400138 GASKET0090374419 KEYSTONE COMPR RING5260160153 SLEEVEX00011779 GASKETXP52414800015 SEALING RINGX00E50203606/S0002 KNOCKING MODULEX52404200071 GASKET FOR CYLINDER HEADS-20056163 SEALING RINGX52607700009 ADAPTER JACKETEDEX59403700072 PISTONX59403800071/42 CONNECTING ROD5241420780 GASKET23540304/A1 GASKET KIT5240384210 CONROD BEARING SIZE 0-1X00043219 CONROD BEARING SIZE 0-15240332730 CRANKSHAFT BEARING DRIVINGX00016599 BEARING BUSHINGX59301300049 CYLINDER LINER STAGE 0XP59501800123 FILTER ELEMENT5260200305 HOUSING+ROTATING ASM5272010505 SHAFT WAT PUMPX59607700020 ADAPTER FOR HP LINEEX00035690 PISTONEX00008371 PISTONX00E50201372 TEMPERATURE SENSORX52404500056 SPARKPLUGX00E50200176 CONNECTION INTERFACE0001424957 RING EXH MANIFX52408300025 FUEL HAND PUMP5240980281 HOSEX52420300037 THERMAL ACTUATOR5240333407 BEARING THRUST/0-1/LO/SPT5240332608 BEARING THRUST/0-1/UP/RIL5110850960 PISTON RING X52499100815 4/2-WAY SOL. VALVEXP52712100006 FILTER ELEMENTXP52712100005 FILTER ELEMENTXP52712100003 FILTER ELEMENTXP52712100002 FILTER ELEMENT5205304069 SPEED TRANSMITTERX52421300004 ALTERNATOR0219976547 SEAL RING CRANKSHAFT FRONT0219976647 SEAL RING CRANKSHAFT REARXP59408300054 FILTER CARTRIDGEXP59400600004 GASKET KITXP52718300064 GASKET KITXP52718300065 CIRCLIP KITXP52718300060 PAPER INSERTX52808100004 FUEL DELIVERY PUMP8691840027 ROTOR COMPLETE5240530905 EXHAUST VALVE5240531101 INLET VALVE5240550550 BUSHINGX52499100259 ADJUSTING SCREWX52405400013 PUSHROD0000530926 VALVE KEEPER WEDGE5240530120 VALVE SPRING OUTER5240530122 VALVE SPRING INNER5240530805 EXHAUST VALVEX52404100226 INLET VALVEX52404200037 GASKET FOR CYLINDER HEADX52404200052 SEAL RING5240380471 CONROD BOLT0120373618 OIL CONTROL RING0090375019 TAPER FACE COMP RINGX00009806 RECTANGLR-SECT RING5240336702 CRANKSHAFT BEARING SIZE 0-15110804420 TURBINE WHEELX52403100003 CRANKSHAFT BEARING SIZE 0-15240336602 CRANKSHAFT BEARING LOWER HALFX00016024 CRANKSHAFT BEARING SIZE 0-05240332630 CRANKSHAFT BEARING AUX PTO END5240111380 GASKETX00027830 CYLINDER LINER SIZE 0 C235240510110 BEARING CAMSHAFT STD23540455 CENTRIFUGAL OIL FILTER ASM5240114210 CYLINDER LINER SIZE 0X59620600007 THERMAL ACTUATORX59699101095 BANJO SCREWX59620700004 SEAL CARRIERXP00A36400005 FILTER ELEMENT0299976748 O-RINGX52499100774 SUPPORT PLATEX52420200075 ROTARY SEALX51699100327 SHAFT SEAL RINGXP59420700027 IMPELLERX59407700014 ADAPTER5272010153 SPACER SLEEVEX00040012 SPEED SENSORX59610100061 BEARING BODY5110251976 WASHERX59610100101 THRUST BEARING8695860572 GASKET KITXP59420300091 SEAL RING5241870380 GASKETX52414100132 GASKET FOR EXHAUST PIPEX56912300043 ACTUATING CYLINDERX59420200235 RESTRICTORX59420200234 RESTRICTORX59420200233 RESTRICTORX59420200238 RESTRICTOR5240384110 CONROD BEARING UPPER HALFXP58420400009 GASKETX00041552 COOLER PLATE X52403800001 CONROD BEARINGXP52618300032 OIL FILTER ELEMENTX00008369 PISTON5410180233 DIAPHRAGM700429038003 O-RINGXP59307500002 O-RINGX52405500190 PROFILE GASKET F CYLINDX00044065 SLEEVE RUBBER
PART NUMBER X52407800004
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION FLOW RESTRICT VALVE
DIMENSIONS VTO-U310V2
UNIT WEIGHT 0.410 KG
HS CODE 84818059
NATO-VERS.-NR. 2910123783252
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 4000 PARTS X52407800004 FLOW RESTRICT VALVE

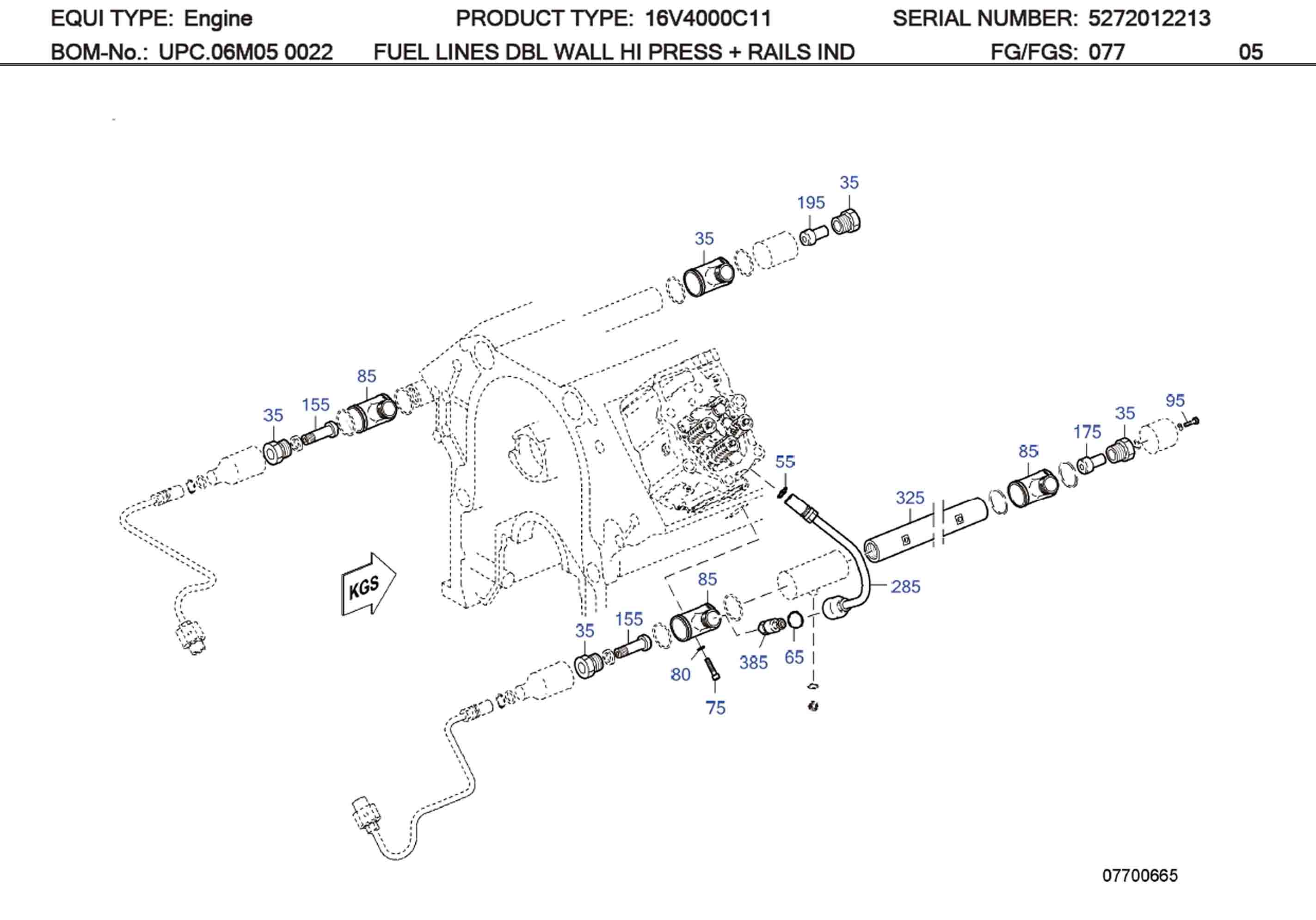

MTU X52407800004 Technical Engineering Exploded View MTU 700325022114 Technical Engineering Exploded View

MTU 4000 PARTS X52407800004 FLOW RESTRICT VALVE

C/N Description Part-Number Qty
35 NUT HEX FUEL RAIL M42 X 1.5 5240780171 004
55 O-RING 700429024000 016
65 O-RING 700429036001 016
70 BOLT HEX SOC HD 000912010014 008
75 SCREW 000912010057 008
80 WASHER 200433010500 016
85 CONNECTING PIECE X52499100586 016
95 HEX SCREW 304017008085 001
115 BRACKET 5801533240 001
135 GROMMET 5249970081 001
155 THRUST MEMBER 5240781024 002
175 PLUG HIGH PRESSURE FUEL RAIL RB REAR 5240780524 001
195 PLUG HP W/SAFETY VALVE 0000786649 001
235 GROMMET 5249970081 002
255 TUBE ASM 23540110 001
275 TUBE ASM DBL WALL FUEL HP PMP TO LB RAIL 23540449 001
285 TUBE HIGH PRESS FUEL DBL WALL JUMPER 5240700833 016
305 CLAMP HALF TUBE 1/1 D9-22 700325022100 002
325 RAIL FUEL HIGH PRESSURE COMMON 5270780590 002
345 CLIP SPR .880DIA HOSE SZ 10 3/8 BOLT CTD 23509141 002
375 CLAMP HALF TUBE 1/1 D11-22 700325022114 004
385 FLOW RESTRICT VALVE X52407800004 016

X52407800004 SUPERSEDED PART AND EFFECTIVE DATE

X52407800004 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 X52407800004 0000785249 N/A
02 X52407800004 X52407800001 2007/05/01
03 X52407800004 0000787949 2007/06/01
04 X52407800004 X52407800004 2007/07/01

MTU 4000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
12V 4000 C11R 1193 1900 165/190 (6.5/7.5)
12V 4000 C11 1286 1900 165/190 (6.5/7.5)
16V 4000 C11 1715 1900 165/190 (6.5/7.5)
12V 4000 C21R 1398 1900 165/190 (6.5/7.5)
16V 4000 C21R 1492 1900 165/190 (6.5/7.5)
12V 4000 C21 1510 1900 165/190 (6.5/7.5)
16V 4000 C21 1864 1900 165/190 (6.5/7.5)
16V 4000 C21L 2013 1900 165/190 (6.5/7.5)
16V 4000 C31 2125 1900 165/190 (6.5/7.5)
12V 4000 C33R 1150 1800 170/210 (6.7/8.3)
12V 4000 C13R 1193 1800 170/210 (6.7/8.3)
12V 4000 C13L 1425 1800 170/210 (6.7/8.3)
12V 4000 C33 1450 1800 170/210 (6.7/8.3)
16V 4000 C13R 1492 1800 170/210 (6.7/8.3)
16V 4000 C13 1750 1800/1900 170/210 (6.7/8.3)
16V 4000 C13L 1865 1800/1900 170/210 (6.7/8.3)
12V 4000 C23R 1510 1800/1900 170/210 (6.7/8.3)
20V 4000 C23 2800 1800 170/210 (6.7/8.3)
