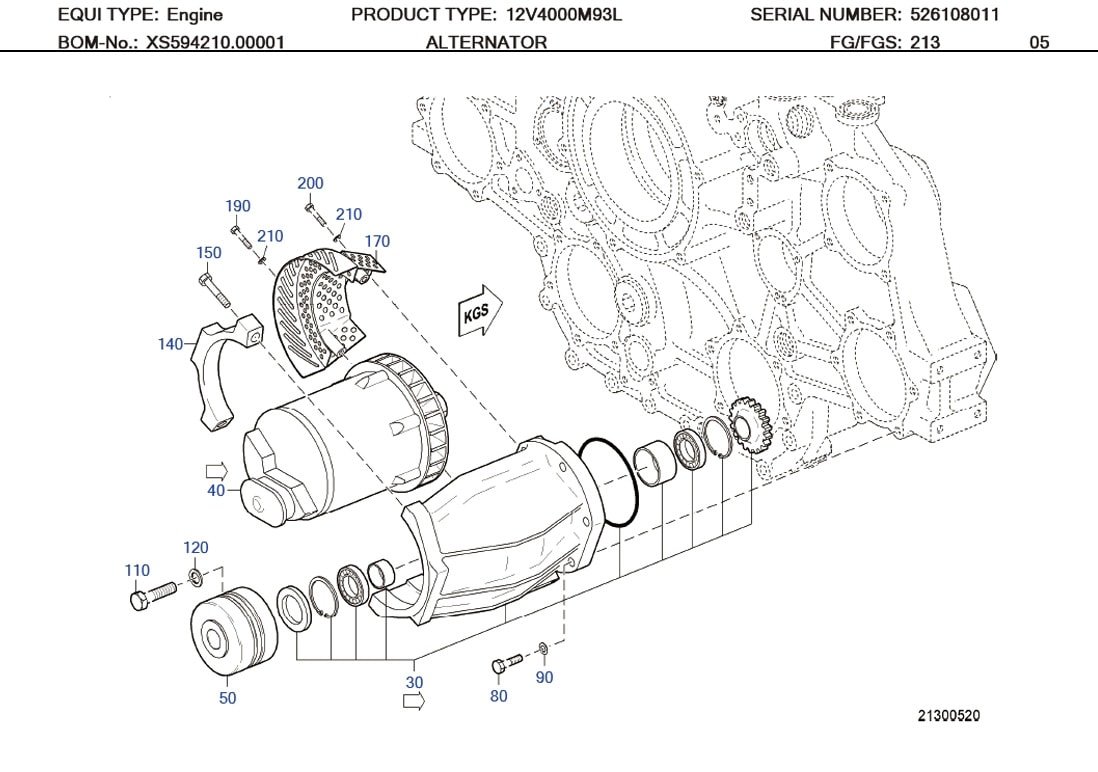

C/N | Description | Part-Number | Qty |
---|---|---|---|
30 | ALTERNATOR DRIVE | 5241500152 | 001 |

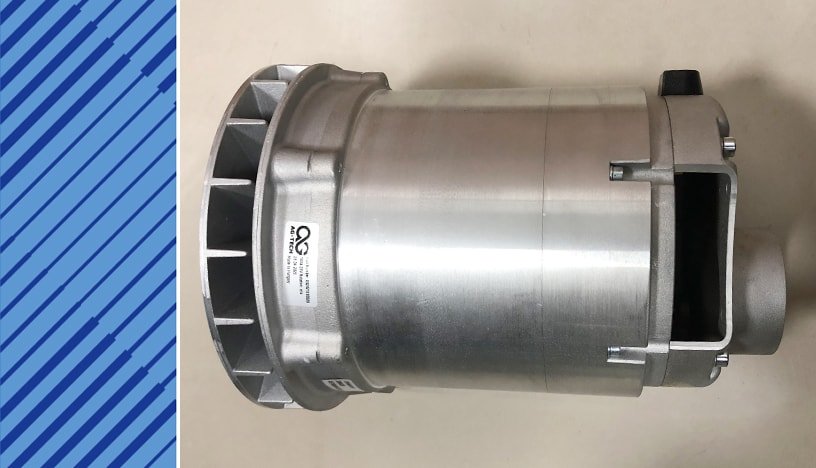

40 | ALTERNATOR | X52421300004 | 001 |
50 | COUPLING | X52421300003 | 001 |
80 | HEX SCREW | 000931012033 | 006 |
90 | SPACER S2000/4000 | 735151012100 | 006 |
110 | HEX SCREW | 000931016133 | 001 |
120 | WASHER | 200433017000 | 001 |
140 | CLAMP ALTERNATOR U 200MM ID | 5241510211 | 002 |
150 | HEX SCREW | 000931012137 | 004 |
170 | SHIELD ALTERNATOR HEAT ASM | X00044396 | 001 |
190 | HEX SCREW | 304017008089 | 002 |
200 | HEX SCREW | 304017008077 | 001 |
210 | WASHER | 000125008427 | 001 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | EX52421300029 | X52421300004 | N/A |
02 | EX52421300029 | EX52421300029 | 2023/09/16 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 4000 R43 | 1000 | 1800 | 170/210 (6.7/8.3) |
8V 4000 R43L | 1200 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43L | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43R | 2000 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43 | 2200 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43L | 2400 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43 | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43L | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63R | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63 | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63L | 3300 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R54 | 1800 | 1800 | 130/150 (5.1/5.9) |
16V 4000 M73L | 2832 | 2050 | 170/190 (6.7/7.5) |
16V 4000 R54 | 2400 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R64 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R84 | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R64 | 2000 | 1800 | 170/210 (6.7/8.3) |
