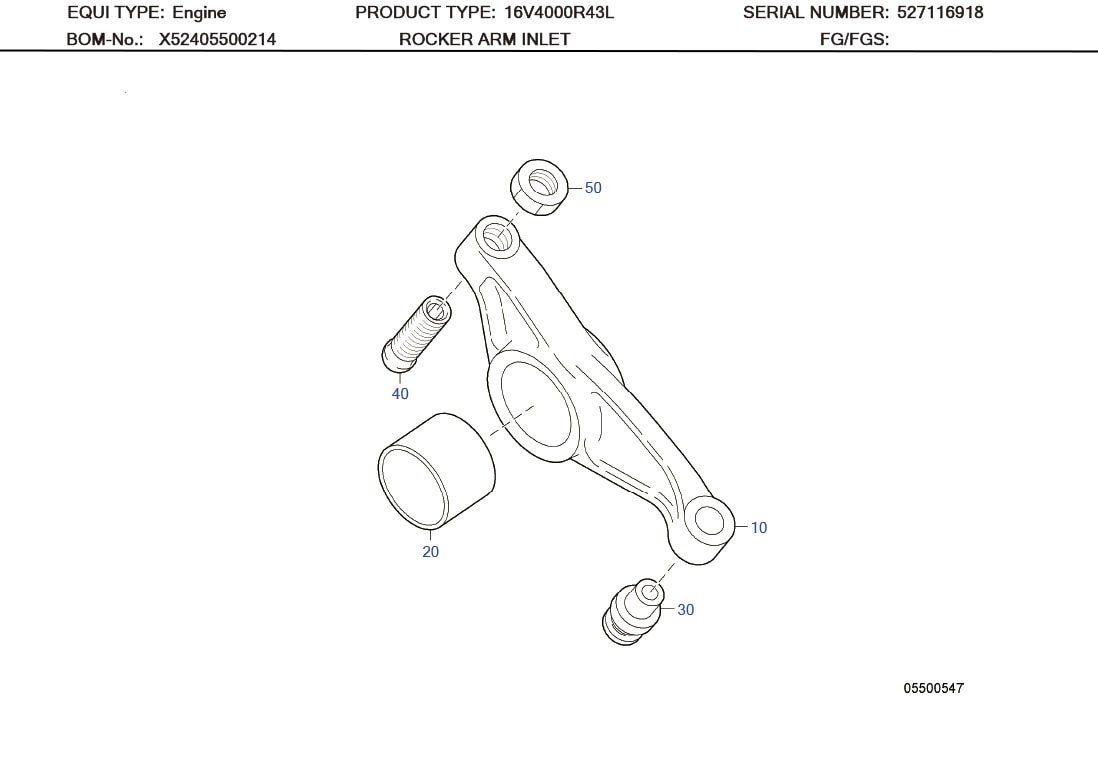

MTU 5240550550 Technical Engineering Exploded View

MTU 5240550550 Technical Engineering Exploded View

MTU 5240550550 Technical Engineering Exploded View

C/N Description Part-Number Qty
10 ROCKER ARM INLET X52405500205 001

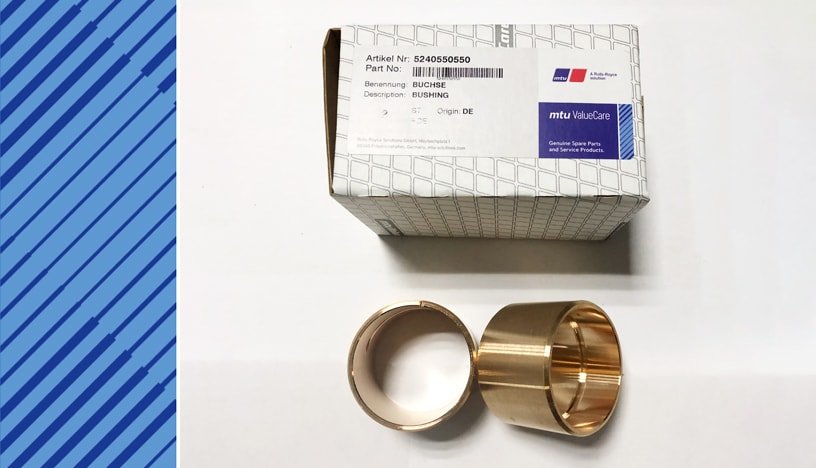

20 BUSHING 5240550550 001
30 THRUST MEMBER FOR ROCKER ARM X52405200015 001
40 ADJUSTING SCREW FOR ROCKER ARM X52499100259 001
50 NUT ADEC 000000000403 001

X52499100259 SUPERSEDED PART AND EFFECTIVE DATE

X52499100259 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5240550550 5240550150 N/A
02 5240550550 X52499100176 2012/01/01
03 5240550550 5240550550 2012/02/01

MTU 4000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 4000 R43 1000 1800 170/210 (6.7/8.3)
8V 4000 R43L 1200 1800 170/210 (6.7/8.3)
12V 4000 R43 1500 1800 170/210 (6.7/8.3)
12V 4000 R43L 1800 1800 170/210 (6.7/8.3)
16V 4000 R43R 2000 1800 170/210 (6.7/8.3)
16V 4000 R43 2200 1800 170/210 (6.7/8.3)
16V 4000 R43L 2400 1800 170/210 (6.7/8.3)
20V 4000 R43 2700 1800 170/210 (6.7/8.3)
20V 4000 R43L 3000 1800 170/210 (6.7/8.3)
20V 4000 R63R 2700 1800 170/210 (6.7/8.3)
20V 4000 R63 3000 1800 170/210 (6.7/8.3)
20V 4000 R63L 3300 1800 170/210 (6.7/8.3)
12V 4000 R54 1800 1800 130/150 (5.1/5.9)
16V 2000 M93 1790 2450 170/210 (6.7/8.3)
16V 4000 R54 2400 1800 170/210 (6.7/8.3)
12V 4000 R64 1500 1800 170/210 (6.7/8.3)
12V 4000 R84 1800 1800 170/210 (6.7/8.3)
16V 4000 R64 2000 1800 170/210 (6.7/8.3)
