PART NUMBER 5240333407
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION BEARING THRUST/0-1/LO/SPT/
DIMENSIONS LOWER HALF
UNIT WEIGHT 1.170 KG
HS CODE 84833080
NATO-VERS.-NR. 3120123731879
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

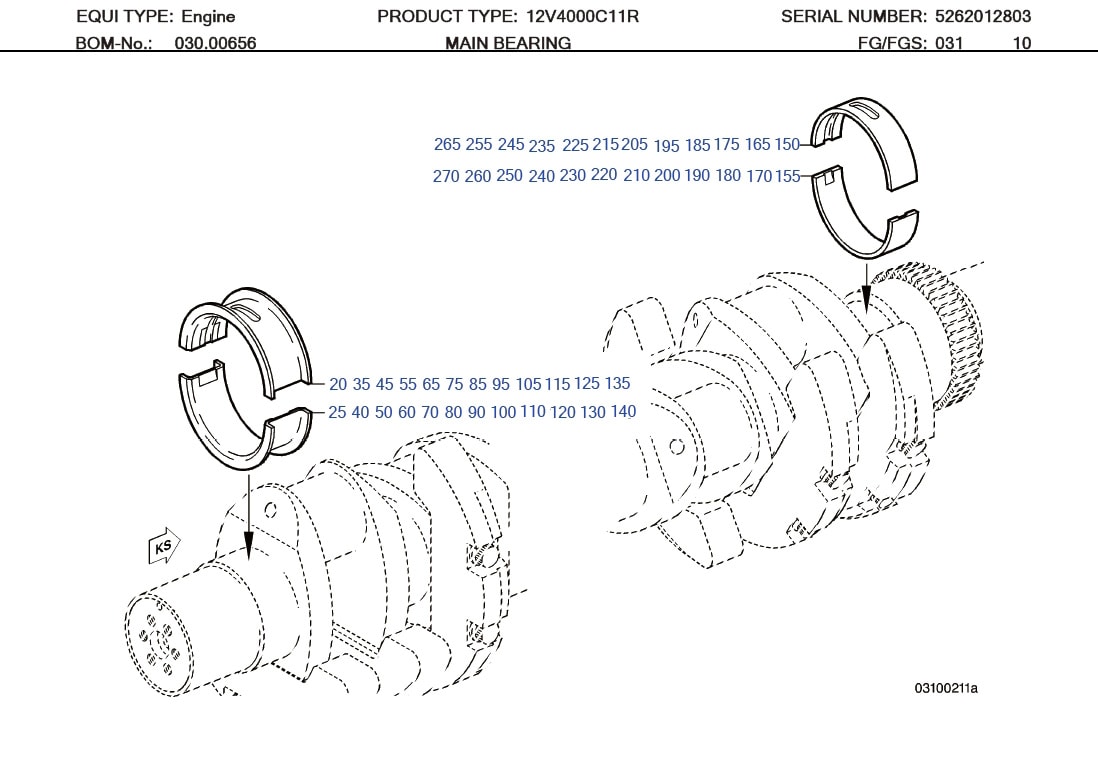

MTU 5240333407 Technical Engineering Exploded View

MTU 5240333407 Technical Engineering Exploded View

MTU 5240333407 Technical Engineering Exploded View

C/N Description Part-Number Qty
20 BEARING THRUST/0-0/UP/RIL/ 5240332508 001
25 BEARING THRUST/0-0/LO/SPT/ 5240333307 001
35 BEARING THRUST/0-1/UP/RIL/ 5240332608 001
40 BEARING THRUST/0-1/LO/SPT/ 5240333407 001
45 BEARING THRUST/0-2/UP/RIL/ 5240332708 001
50 BEARING THRUST/0-2/LO/SPT/ 5240333507 001
55 CRANKSHAFT ALIGN BRG SIZE 0-3 5240332808 001
60 CRANKSHAFT ALIGN BRG SIZE 0-3 5240333607 001
65 BEARING THRUST/1-0/UP/RIL/ 5240332908 001
70 BEARING THRUST/1-0/LO/SPT/ 5240333707 001
75 BEARING THRUST/1-1/UP/RIL/ 5240333008 001
80 BEARING THRUST/1-1/LO/SPT/ 5240333807 001
85 BEARING THRUST/1-2/UP/RIL/ 5240333108 001
90 BEARING THRUST/1-2/LO/SPT/ 5240333907 001
95 BEARING THRUST/1-3/UP/RIL/ 5240333208 001
100 BEARING THRUST/1-3/LO/SPT/ 5240334007 001
105 BEARING THRUST/2-0/UP/RIL/ 5240334408 001
110 BEARING THRUST/2-0/LO/SPT/ 5240335207 001
115 BEARING THRUST/2-1/UP/RIL/ 5240334508 001
120 BEARING THRUST/2-1/LO/SPT/ 5240335307 001
125 BEARING THRUST/2-2/UP/RIL/ 5240334608 002
130 BEARING THRUST/2-2/LO/SPT/ 5240335407 001
135 BEARING THRUST/2-3/UP/RIL/ 5240334708 001
140 BEARING THRUST/2-3/LO/SPT/ 5240335507 001
150 CRANKSHAFT BEARING SIZE 0-0 X00016024 001
155 CRANKSHAFT BEARING LOWER HALF 5240336602 001
165 CRANKSHAFT BEARING SIZE 0-1 X52403100003 001
170 CRANKSHAFT BEARING SIZE 0-1 5240336702 001
175 CRANKSHAFT BEARING SIZE 0-2 X52403100004 001
180 CRANKSHAFT BEARING SIZE 0-2 5240336802 001
185 CRANKSHAFT BEARING SIZE 0-3 X52403100005 001
190 CRANKSHAFT BEARING SIZE 0-3 5240336902 001
195 CRANKSHAFT BEARING SIZE 1-0 X52403100006 001
200 CRANKSHAFT BEARING SIZE 1-0 5240337002 001
205 CRANKSHAFT BEARING SIZE 1-1 X52403100007 001
210 CRANKSHAFT BEARING SIZE 1-1 5240337102 001
215 CRANKSHAFT BEARING SIZE 1-2 X52403100008 001
220 CRANKSHAFT BEARING SIZE 1-2 5240337202 001
225 CRANKSHAFT BEARING SIZE 1-3 X52403100009 001
230 CRANKSHAFT BEARING SIZE 1-3 5240337302 001
235 CRANKSHAFT BEARING SIZE 2-0 X52403100010 001
240 CRANKSHAFT BEARING SIZE 2-0 5240337402 001
245 CRANKSHAFT BEARING SIZE 2-1 X52403100011 001
250 CRANKSHAFT BEARING SIZE 2-1 5240337502 001
255 CRANKSHAFT BEARING SIZE 2-2 X52403100012 001
260 CRANKSHAFT BEARING SIZE 2-2 5240337602 001
265 CRANKSHAFT BEARING SIZE 2-3 X52403100013 001
270 CRANKSHAFT BEARING SIZE 2-3 5240337702 001

5240333407 SUPERSEDED PART AND EFFECTIVE DATE

5240333407 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5240333407 5240330107 N/A
02 5240333407 5240330707 2006/08/01
03 5240333407 5240331607 2006/09/01
04 5240333407 5240332507 2006/10/01
05 5240333407 5240333407 2006/11/01

MTU 4000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 4000 R43 1000 1800 170/210 (6.7/8.3)
8V 4000 R43L 1200 1800 170/210 (6.7/8.3)
12V 4000 R43 1500 1800 170/210 (6.7/8.3)
12V 4000 R43L 1800 1800 170/210 (6.7/8.3)
16V 4000 R43R 2000 1800 170/210 (6.7/8.3)
16V 4000 R43 2200 1800 170/210 (6.7/8.3)
16V 4000 R43L 2400 1800 170/210 (6.7/8.3)
20V 4000 R43 2700 1800 170/210 (6.7/8.3)
20V 4000 R43L 3000 1800 170/210 (6.7/8.3)
20V 4000 R63R 2700 1800 170/210 (6.7/8.3)
20V 4000 R63 3000 1800 170/210 (6.7/8.3)
20V 4000 R63L 3300 1800 170/210 (6.7/8.3)
12V 4000 R54 1800 1800 130/150 (5.1/5.9)
12V 4000 C11 1715 1900 165/190 (6.5/7.5)
16V 4000 R54 2400 1800 170/210 (6.7/8.3)
12V 4000 R64 1500 1800 170/210 (6.7/8.3)
12V 4000 R84 1800 1800 170/210 (6.7/8.3)
16V 4000 R64 2000 1800 170/210 (6.7/8.3)
