MTU 4000 PARTS | 5240780824 | CONN FUEL RAIL REAR

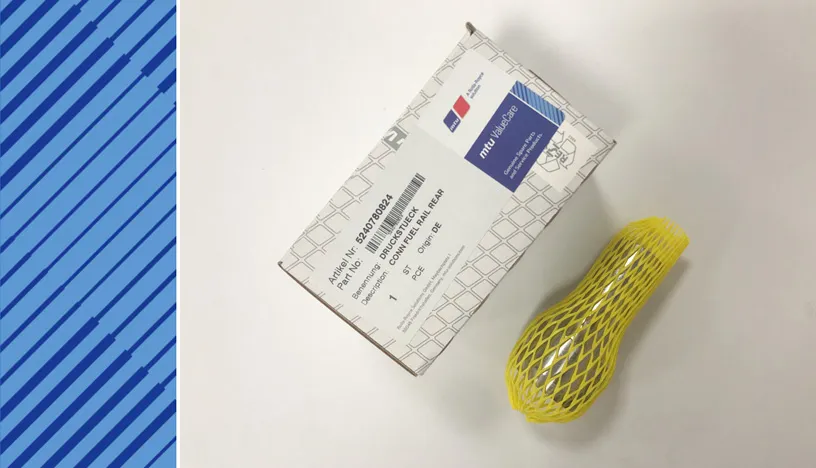

5240780824 CONN FUEL RAIL REAR

Other
Other X59407700023 HP FUEL LINE X52808100014 FUEL DELIVERY PUMP X52404200043 GASKET FOR CYLINDER HEAD 0035352231 PRESSURE SENSOR 0049976736 VALVE DRAIN X00007116 V-BAND CLAMP X59399100141 BELLOWS X00E50207213 PRESSURE SENSOR X57508300091 FUEL FILTER SPIN-ON 5240530830 VALVE GUIDE X52404200010 VALVE GUIDE EX52407500064 INJECTOR X54799101554 NON-RETURN VALVE WITH BAFFLE X52414700025 INSULATING MAT FOR EXH PIPE X52414100123 GASKET F.EXHAUST MANIFOLD X52412400138 GASKET 0090374419 KEYSTONE COMPR RING 5260160153 SLEEVE X00011779 GASKET XP52414800015 SEALING RING X00E50203606/S0002 KNOCKING MODULE X52404200071 GASKET FOR CYLINDER HEAD S-20056163 SEALING RING X52607700009 ADAPTER JACKETED EX59403700072 PISTON X59403800071/42 CONNECTING ROD 5241420780 GASKET 23540304/A1 GASKET KIT 5240384210 CONROD BEARING SIZE 0-1 X00043219 CONROD BEARING SIZE 0-1 5240332730 CRANKSHAFT BEARING DRIVING X00016599 BEARING BUSHING X59301300049 CYLINDER LINER STAGE 0 XP59501800123 FILTER ELEMENT 5260200305 HOUSING+ROTATING ASM 5272010505 SHAFT WAT PUMP X59607700020 ADAPTER FOR HP LINE EX00035690 PISTON EX00008371 PISTON X00E50201372 TEMPERATURE SENSOR X52404500056 SPARKPLUG X00E50200176 CONNECTION INTERFACE 0001424957 RING EXH MANIF X52408300025 FUEL HAND PUMP 5240980281 HOSE X52420300037 THERMAL ACTUATOR 5240333407 BEARING THRUST/0-1/LO/SPT 5240332608 BEARING THRUST/0-1/UP/RIL 5110850960 PISTON RING X52499100815 4/2-WAY SOL. VALVE XP52712100006 FILTER ELEMENT XP52712100005 FILTER ELEMENT XP52712100003 FILTER ELEMENT XP52712100002 FILTER ELEMENT 5205304069 SPEED TRANSMITTER X52421300004 ALTERNATOR 0219976547 SEAL RING CRANKSHAFT FRONT 0219976647 SEAL RING CRANKSHAFT REAR XP59408300054 FILTER CARTRIDGE XP59400600004 GASKET KIT XP52718300064 GASKET KIT XP52718300065 CIRCLIP KIT XP52718300060 PAPER INSERT X52808100004 FUEL DELIVERY PUMP 8691840027 ROTOR COMPLETE 5240530905 EXHAUST VALVE 5240531101 INLET VALVE 5240550550 BUSHING X52499100259 ADJUSTING SCREW X52405400013 PUSHROD 0000530926 VALVE KEEPER WEDGE 5240530120 VALVE SPRING OUTER 5240530122 VALVE SPRING INNER 5240530805 EXHAUST VALVE X52404100226 INLET VALVE X52404200037 GASKET FOR CYLINDER HEAD X52404200052 SEAL RING 5240380471 CONROD BOLT 0120373618 OIL CONTROL RING 0090375019 TAPER FACE COMP RING X00009806 RECTANGLR-SECT RING 5240336702 CRANKSHAFT BEARING SIZE 0-1 5110804420 TURBINE WHEEL X52403100003 CRANKSHAFT BEARING SIZE 0-1 5240336602 CRANKSHAFT BEARING LOWER HALF X00016024 CRANKSHAFT BEARING SIZE 0-0 5240332630 CRANKSHAFT BEARING AUX PTO END 5240111380 GASKET X00027830 CYLINDER LINER SIZE 0 C23 5240510110 BEARING CAMSHAFT STD 23540455 CENTRIFUGAL OIL FILTER ASM 5240114210 CYLINDER LINER SIZE 0 X59620600007 THERMAL ACTUATOR X59699101095 BANJO SCREW X59620700004 SEAL CARRIER XP00A36400005 FILTER ELEMENT X52407800004 FLOW RESTRICT VALVE 0299976748 O-RING X52499100774 SUPPORT PLATE X52420200075 ROTARY SEAL X51699100327 SHAFT SEAL RING XP59420700027 IMPELLER X59407700014 ADAPTER 5272010153 SPACER SLEEVE X00040012 SPEED SENSOR X59610100061 BEARING BODY 5110251976 WASHER X59610100101 THRUST BEARING 8695860572 GASKET KIT XP59420300091 SEAL RING 5241870380 GASKET X52414100132 GASKET FOR EXHAUST PIPE X56912300043 ACTUATING CYLINDER X59420200235 RESTRICTOR X59420200234 RESTRICTOR X59420200233 RESTRICTOR X59420200238 RESTRICTOR 5240384110 CONROD BEARING UPPER HALF XP58420400009 GASKET X00041552 COOLER PLATE X52403800001 CONROD BEARING XP52618300032 OIL FILTER ELEMENT X00008369 PISTON 5410180233 DIAPHRAGM 700429038003 O-RING XP59307500002 O-RING X52405500190 PROFILE GASKET F CYLIND X00044065 SLEEVE RUBBER
PART NUMBER 5240780824
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION CONN FUEL RAIL REAR
DIMENSIONS N/A
UNIT WEIGHT 0.340 KG
HS CODE 84099900
NATO-VERS.-NR. 2910123731848
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 4000 Engine Parts 5240780824 CONN FUEL RAIL REAR

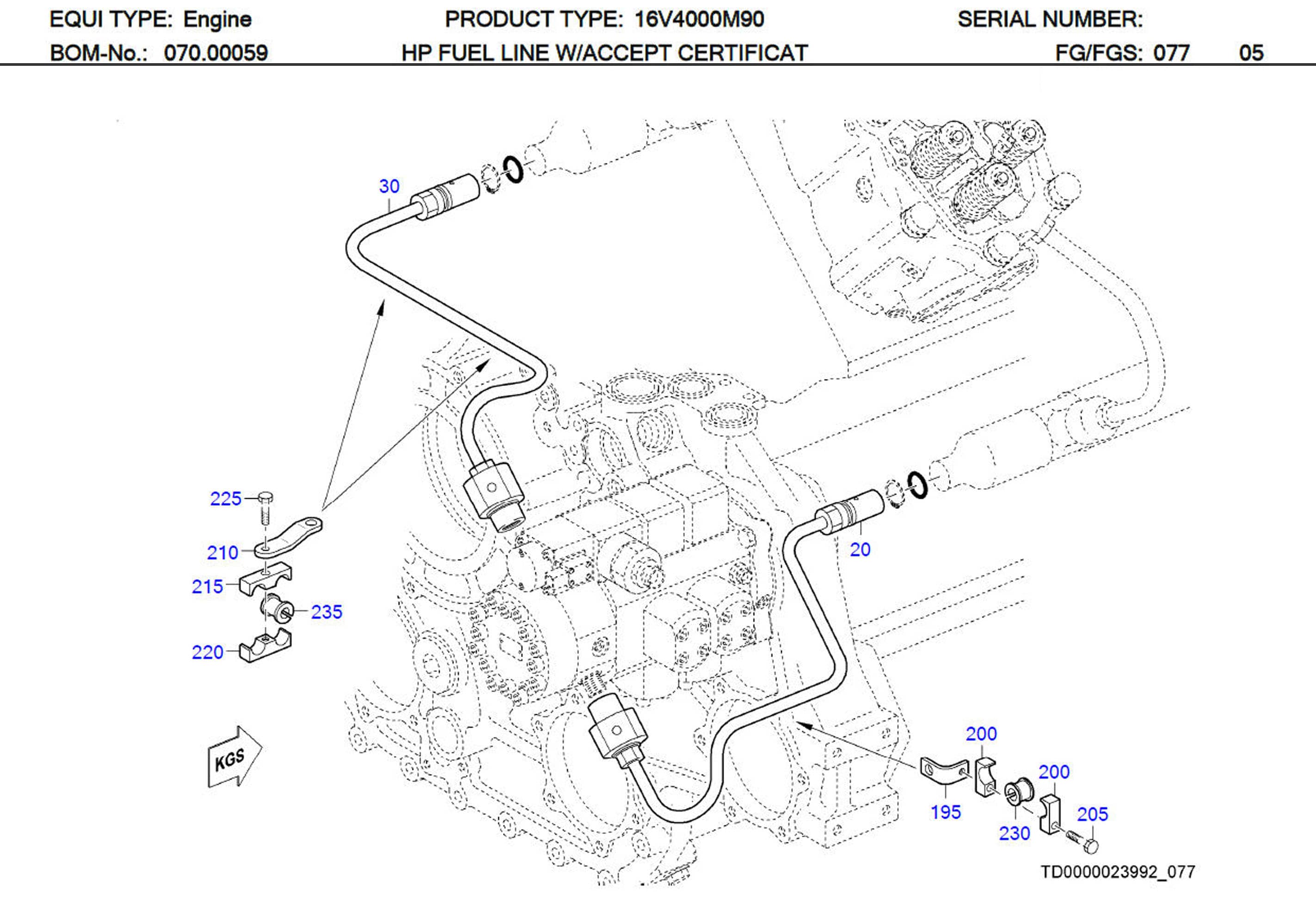

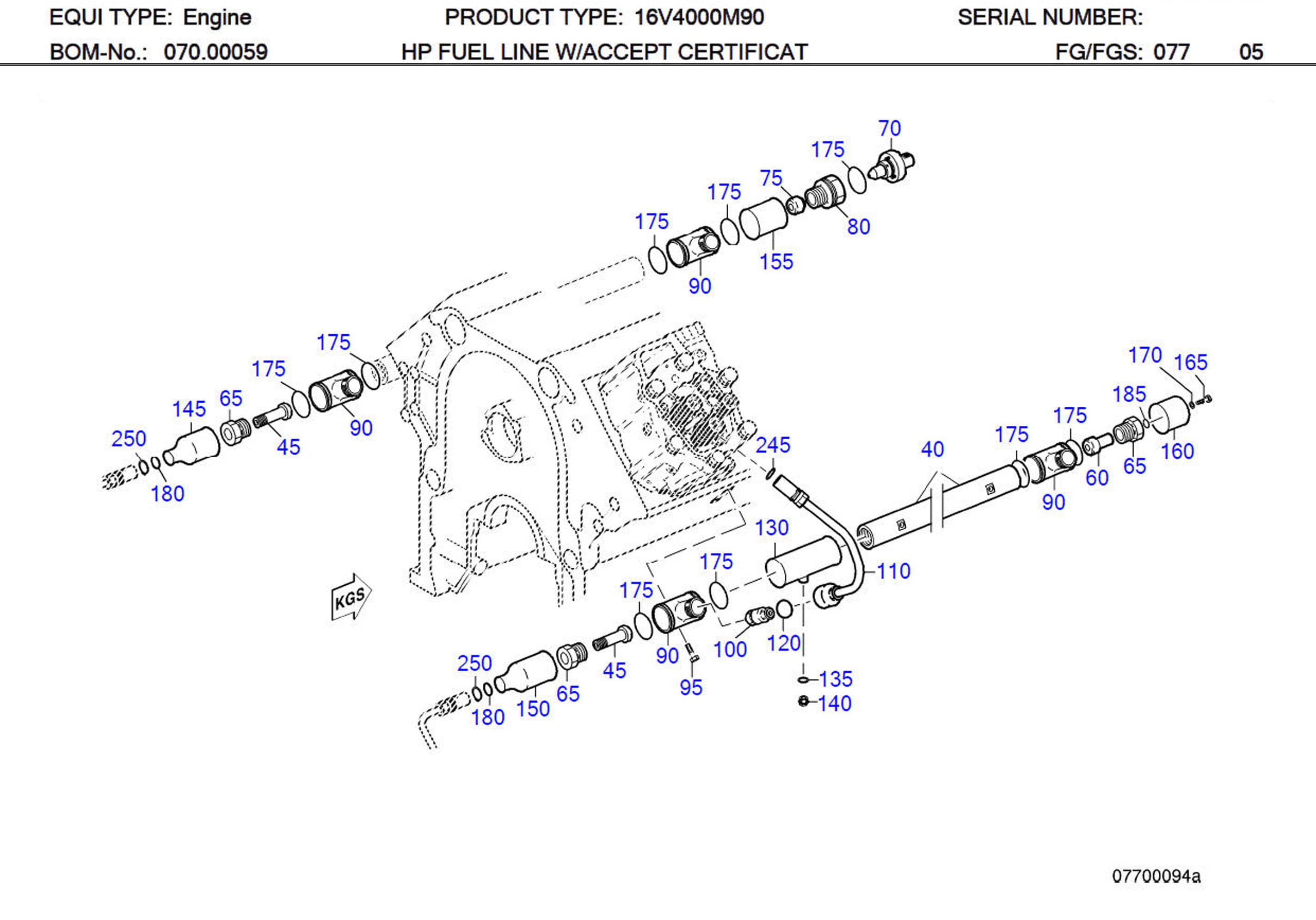

MTU 5260900376 Technical Engineering Exploded View MTU 5240780824 Technical Engineering Exploded View

MTU 4000 Engine Parts 5240780824 CONN FUEL RAIL REAR

C/N Description Part-Number Qty
20 TUBE ASM DBL WALL FU EL HP PMP TO LB RAI 5260900376 001
30 TUBE FUEL DBL WALL H P PMP TO RB RAIL 5260900876 001
40 RAIL FUEL HIGH PRESSURE COMMON 5270780590 002
45 THRUST MEMBER 5240781024 002
60 CONN FUEL RAIL REAR 5240780824 001
65 NUT HEX FUEL RAIL M42 X 1.5 5240780171 003
70 PRESS RELIEF VALVE 5240700146 001
75 ADAPTER 5240780047 001
80 BOLT THRUST 5240780271 001
90 CONNECTING PIECE 5240780768 016
95 HEX SCREW 000933010194 016
100 VALVE FLOW RESTRICTOR 0000787949 016
110 TUBE HIGH PRESS FUEL DBL WALL JUMPER 5240700833 016
120 O-RING 700429036001 016
130 PLUG-IN PIPE 5240709932 014
135 COPPER SEALING RING 007603012111 014
140 PLUG 007604012102 014
145 PLUG-IN PIPE END PCE, DR.END, RT 5240781853 001
150 PLUG-IN PIPE END PCE, FR.END, RT 5240781653 001
155 TUBE PLUG IN END MEMBER 5240782253 001
160 PLUG-IN PIPE END PCE,DR.END,LEFT 5240782053 001
165 HEX SCREW 304017008081 001
170 WASHER 200433008400 001
175 O-RING 700429060002 033
180 O-RING 700429024000 002
185 O-RING 700429016003 001
195 RETAINER 5801533240 001
200 CLAMP HALF TUBE 1/1 D9-22 700325022100 002
205 HEX SCREW 304017008085 001
210 BRACKET 5240781241 002
215 CLAMP HALF TUBE 2/1 D9-22 700325022104 002
220 CLAMP HALF TUBE 2/1 G8-22 700325022203 001
225 HEX SCREW 304017008083 002
230 GROMMET 700327018000 002
235 GROMMET 5249970081 003
245 O-RING 700429024000 016
250 RING SNAP HV ZNPH R5 F 000471032000 002

5240780824 SUPERSEDED PART AND EFFECTIVE DATE

5240780824 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5240780824 5240780624 N/A
02 5240780824 5240780824 2000/07/01

MTU 4000 Diesel Engine Models & Specifications

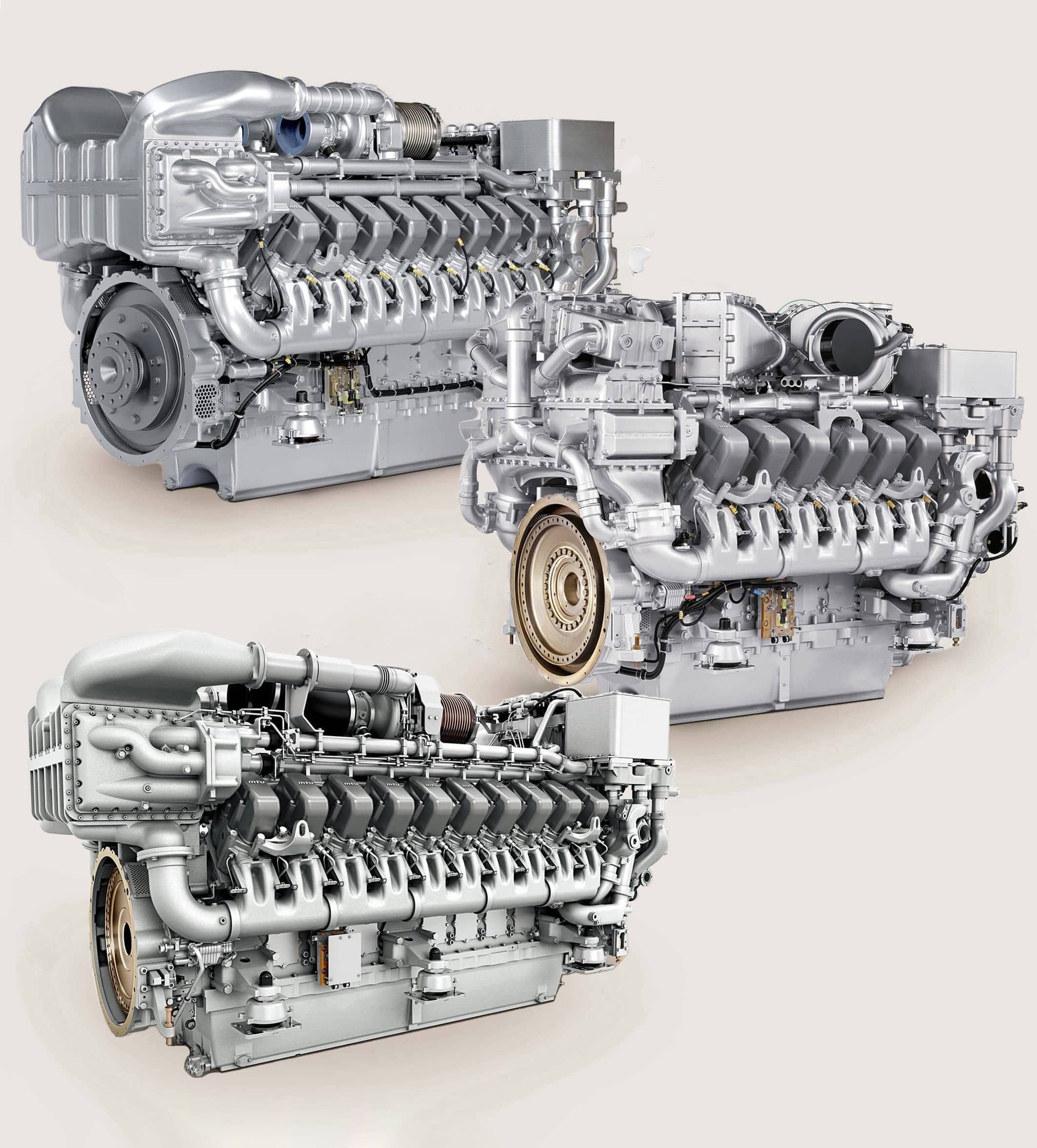

MTU 2000 M96 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 4000 M63 1000 1800 170/210 (6.7/8.3)
16V 4000 M53R 1520 1600 170/210 (6.7/8.3)
12V 4000 M64 1398 1800 170/210 (6.7/8.3)
12V 4000 M65R 1492 1600 170/210 (6.7/8.3)
16V 4000 M55RN 1492 1600 170/210 (6.7/8.3)
16V 4000 M54 1685 1800 170/210 (6.7/8.3)
16V 4000 M65R 2000 1600 170/210 (6.7/8.3)
20V 4000 M65L 3200 1800 170/210 (6.7/8.3)
20V 4000 M73 3200 1970 170/210 (6.7/8.3)
16V 4000 M93L 3440 2100 170/210 (6.7/8.3)
20V 4000 M73L 3540 2050 170/210 (6.7/8.3)
20V 4000 M93 3900 2100 170/210 (6.7/8.3)
12V 4000 M53R 1140 1600 170/210 (6.7/8.3)
12V 4000 M63 1500 1800 170/210 (6.7/8.3)
16V 4000 M65L 2176 1800 170/210 (6.7/8.3)
16V 4000 M63L 2240 1800 170/210 (6.7/8.3)
8V 4000 M53R 746 1600 170/210 (6.7/8.3)
8V 4000 M55RN 746 1600 170/210 (6.7/8.3)
