PART NUMBER X52499100815
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION 4/2-WAY SOL. VALVE
DIMENSIONS S6VH10G0200016FV
UNIT WEIGHT 1.180 KG
HS CODE 84818059
NATO-VERS.-NR. 4810124106273
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

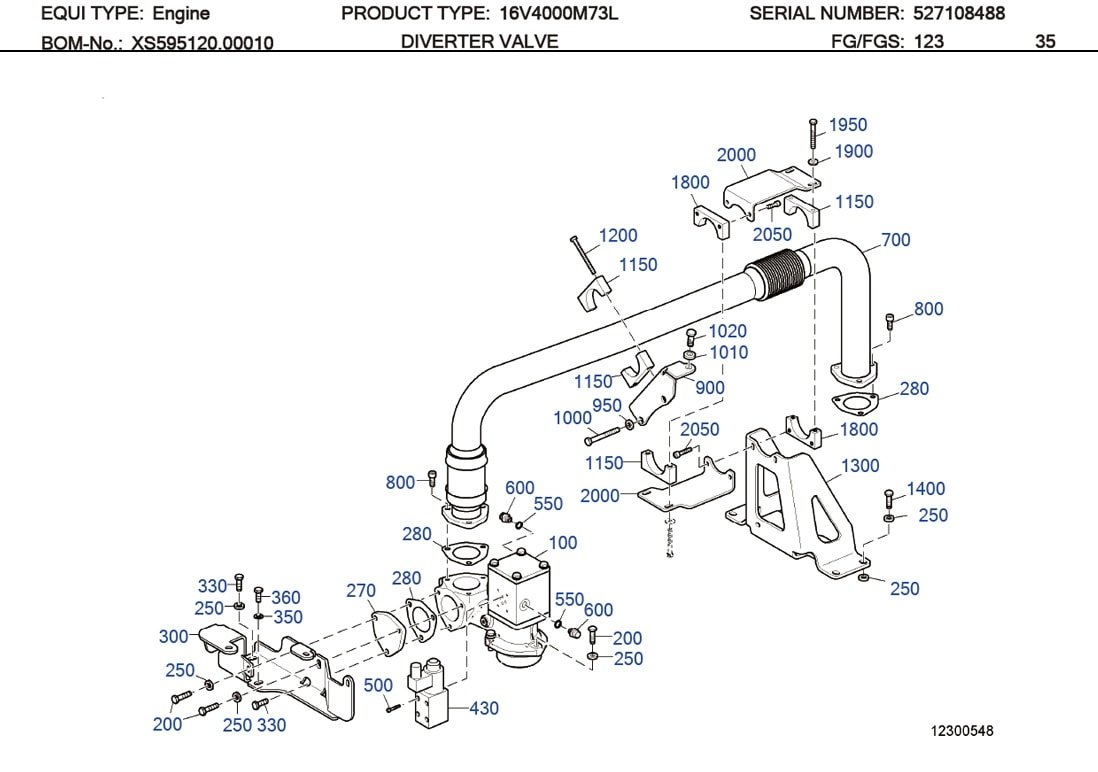

MTU X52499100815 Technical Engineering Exploded View

MTU X52499100815 Technical Engineering Exploded View

MTU X52499100815 Technical Engineering Exploded View

C/N Description Part-Number Qty
100 DIVERTER VALVE X59512300003 001
200 BOLT HEX A3C 000000001039 003
250 SPACER A10.5 A3C 735151010101 003
255 GASKET F/AIR TRANSFER VALV X59512500026 001
270 FLANGE X52812500001 001
280 GASKET 5272030080 001
300 RETAINER X59512300008 001
330 BOLT HEX A3C 000000001464 001
350 WASHER 000125010524 001
360 HEX SCREW 000000003021 001
430 4/2-WAY SOL. VALVE X52499100815 001
500 BOLT HEX SOC ZNPH R5F 000000003558 004
550 WASHER A COP 007603014102 002
600 UNION 915013008002 002
700 AIR PIPING X59512300006 001
800 BOLT HEX SOC HD 000912010065 006
900 RETAINER ON CARRIER HOUSING X52799100041 001
950 SPACER 735151010100 002
1000 HEX SCREW 000000003510 002
1010 SPACER S2000/4000 735151012100 001
1020 BOLT A3C 000000003925 001
1150 PIPE CLAMP HALF 700346065200 002
1200 BOLT HEX A3C 000000003496 002
1300 RETAINER X59599100023 001
1400 HEX SCREW 000000003326 004
1800 PIPE HALF-CLAMP X59312500003 002
1900 WASHER 007349008002 004
1950 HEX SCREW 204017008032 004
2000 RETAINER X59699100042 002
2050 BOLT HEX SOC HD 000912008055 004

X52499100815 SUPERSEDED PART AND EFFECTIVE DATE

X52499100815 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 X52499100815 X52499100725 N/A
02 X52499100815 8593040190 2007/08/01
03 X52499100815 Z=0616704 2007/09/01
04 X52499100815 0616704 2007/10/01
05 X52499100815 0025402297 2007/11/01
06 X52499100815 8690660006 2007/12/01
07 X52499100815 0025402497 2008/01/01
08 X52499100815 0025405497 2008/02/01
09 X52499100815 X00041391 2015/10/10
10 X52499100815 X52499100815 2016/01/12
