MTU 4000 Parts | 0299976748 | O-RING

0299976748 O-RING

Other
Other X59620600007 THERMAL ACTUATOR X59699101095 BANJO SCREW X59620700004 SEAL CARRIER XP00A36400005 FILTER ELEMENT X52407800004 FLOW RESTRICT VALVE 0299976748 O-RING X52499100774 SUPPORT PLATE X52420200075 ROTARY SEAL X51699100327 SHAFT SEAL RING XP59420700027 IMPELLER 5272010153 SPACER SLEEVE X59407700014 ADAPTER 23540455 CENTRIFUGAL OIL FILTER ASM X00040012 SPEED SENSOR 5110251976 WASHER X59610100061 BEARING BODY X59610100101 THRUST BEARING 8695860572 GASKET KIT XP59420300091 SEAL RING 5241870380 GASKET X52414100132 GASKET FOR EXHAUST PIPE X56912300043 ACTUATING CYLINDER X59420200235 RESTRICTOR X59420200234 RESTRICTOR X59420200233 RESTRICTOR X59420200238 RESTRICTOR 5240384110 CONROD BEARING UPPER HALF XP58420400009 GASKET X00041552 COOLER PLATE X52403800001 CONROD BEARING XP52618300032 OIL FILTER ELEMENT X00008369 PISTON 5410180233 DIAPHRAGM 700429038003 O-RING XP59307500002 O-RING X52405500190 PROFILE GASKET F CYLIND EX59403700072 PISTON X59403800071/42 CONNECTING ROD 5241420780 GASKET 23540304/A1 GASKET KIT 5240384210 CONROD BEARING SIZE 0-1 X00043219 CONROD BEARING SIZE 0-1 5240332730 CRANKSHAFT BEARING DRIVING X00016599 BEARING BUSHING X59301300049 CYLINDER LINER STAGE 0 XP59501800123 FILTER ELEMENT 5260200305 HOUSING+ROTATING ASM EX00008371 PISTON X00E50201372 TEMPERATURE SENSOR X52404500056 SPARKPLUG X00E50200176 CONNECTION INTERFACE 0001424957 RING EXH MANIF X52408300025 FUEL HAND PUMP 5240980281 HOSE X00044065 SLEEVE RUBBER X52420300037 THERMAL ACTUATOR 5240333407 BEARING THRUST/0-1/LO/SPT 5240332608 BEARING THRUST/0-1/UP/RIL 5110850960 PISTON RING X52499100815 4/2-WAY SOL. VALVE XP52712100006 FILTER ELEMENT XP52712100005 FILTER ELEMENT XP52712100003 FILTER ELEMENT XP52712100002 FILTER ELEMENT 5205304069 SPEED TRANSMITTER X52421300004 ALTERNATOR 0219976547 SEAL RING CRANKSHAFT FRONT 0219976647 SEAL RING CRANKSHAFT REAR 5240114210 CYLINDER LINER SIZE 0 XP59408300054 FILTER CARTRIDGE XP59400600004 GASKET KIT XP52718300064 GASKET KIT XP52718300065 CIRCLIP KIT XP52718300060 PAPER INSERT X52808100004 FUEL DELIVERY PUMP 8691840027 ROTOR COMPLETE 5240530905 EXHAUST VALVE 5240531101 INLET VALVE 5240550550 BUSHING X52499100259 ADJUSTING SCREW X52405400013 PUSHROD 0000530926 VALVE KEEPER WEDGE 5240530120 VALVE SPRING OUTER 5240530122 VALVE SPRING INNER 5240530805 EXHAUST VALVE X52404100226 INLET VALVE X52404200037 GASKET FOR CYLINDER HEAD X52404200052 SEAL RING 5240380471 CONROD BOLT 0120373618 OIL CONTROL RING 0090375019 TAPER FACE COMP RING X00009806 RECTANGLR-SECT RING 5240336702 CRANKSHAFT BEARING SIZE 0-1 X52403100003 CRANKSHAFT BEARING SIZE 0-1 5240336602 CRANKSHAFT BEARING LOWER HALF X00016024 CRANKSHAFT BEARING SIZE 0-0 5240332630 CRANKSHAFT BEARING AUX PTO END 5240111380 GASKET X00027830 CYLINDER LINER SIZE 0 C23 5240510110 BEARING CAMSHAFT STD
PART NUMBER 0299976748
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION O-RING
DIMENSIONS 184 X 4
UNIT WEIGHT 0.014 KG
HS CODE 40169300
NATO-VERS.-NR. 5331123775472
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 4000 PARTS EXHAUST SYSTEM 0299976748 O-RING

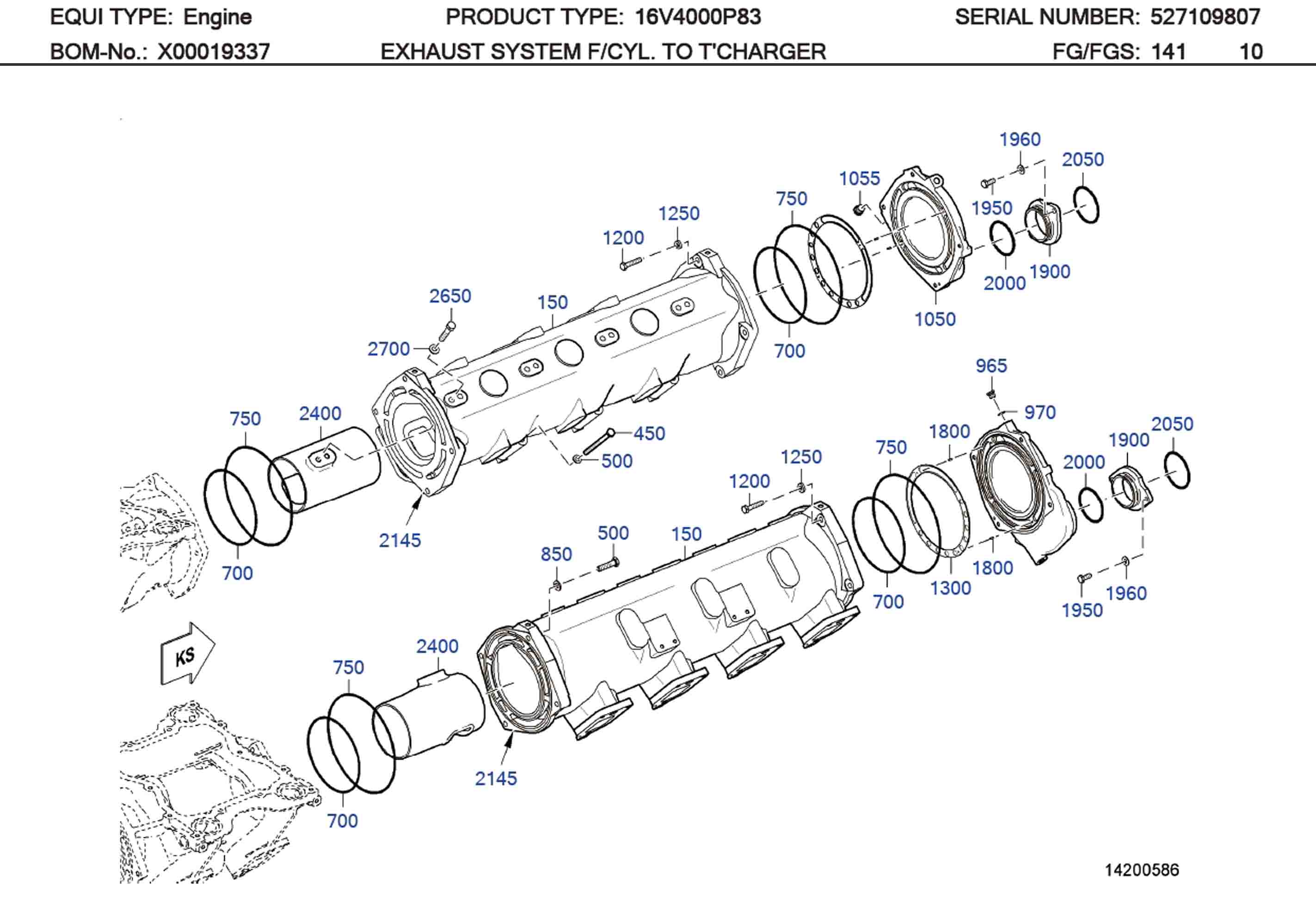

MTU 0299976748 Technical Engineering Exploded View

MTU 4000 PARTS EXHAUST SYSTEM 0299976748 O-RING

C/N Description Part-Number Qty
150 EXHAUST MANIFOLD 4 CYL (ASSEMBLY) 5271401418 002
200 EXHAUST MANIFOLD 2 CYL (ASSEMBLY) 5261400318 002
250 EXHAUST HOUSING X59414100077 002
350 O-RING 700429024000 016
400 BOLT HEX 000933010092 032
450 BOLT HEX 000931010336 016
500 BOLT HEX S2000/4000 000933012051 016
600 COVER END EXHAUST MANIFOLD C23 5261400321 002
700 O-RING 0299976748 003
750 O-RING 700429244000 003
850 WASHER 000125013012 008
900 RESTRICTOR 5262030252 001
950 RESTRICTOR X00001929 001
965 THREAD PLUG 000908014001 004
970 COPPER SEALING RING 007603014102 004
1050 COVER X00010358 001
1055 PLUG 735210018000 001
1200 BOLT HEX A3C 000000001042 004
1250 SPACER 735151010100 004
1300 RESTRICTOR 5262030352 001
1400 COVER EXH END MANIF C23 X00010356 001
1800 PIN SPRING 18-8 000000003948 006
1900 FLANGE X59699100107 002
1950 HEX BOLT 000933010035 004
1960 WASHER 000125010524 004
2000 O-RING 700429080001 002
2050 O-RING 700429083000 002
2400 LINER EXHAUST MANIFOLD 5261420004 012
2450 TUBE EXHAUST MANIFOLD C23 X00009996 002
2500 TUBE EXHAUST MANIFOLD C23 X00010001 002
2550 EXHAUST PIPE TO TURBOCHARGER X52814100016 002
2650 HEX SCREW 204017012032 036
2700 SPACER X59614100003 018

0299976748 SUPERSEDED PART AND EFFECTIVE DATE

0299976748 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 X59499101669 0249974748 N/A
02 X59499101669 0299976748 2002/03/01
03 X59499101669 735252184000 2020/11/13
04 X59499101669 X59499101669 2022/07/29

MTU 4000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 4000 M63 1000 1800 170/210 (6.7/8.3)
12V 4000 M63 1500 1800 170/210 (6.7/8.3)
12V 4000 M65L 1680 1800 170/210 (6.7/8.3)
16V 4000 M63L 2240 1800 170/210 (6.7/8.3)
16V 4000 M65L 2240 1800 170/210 (6.7/8.3)
8V 4000 M54R 746 1600 170/210 (6.7/8.3)
8V 4000 M55RN 746 1600 170/210 (6.7/8.3)
8V 4000 M54 895 1800 170/210 (6.7/8.3)
8V 4000 M53 950 1800 170/210 (6.7/8.3)
12V 4000 M55R 1119 1600 170/210 (6.7/8.3)
12V 4000 M53R 1140 1600 170/210 (6.7/8.3)
12V 4000 M54 1193 1800 170/210 (6.7/8.3)
12V 4000 M64 1398 1800 130/150 (5.1/5.9)
12V 4000 M93 2340 2100 165/190 (6.5/7.5)
12V 4000 M73L 2160 2050 170/210 (6.7/8.3)
16V 4000 M73 2560 1970 170/210 (6.7/8.3)
12V 4000 M93L 2580 2100 170/210 (6.7/8.3)
20V 4000 M65L 2800 1800 170/210 (6.7/8.3)
