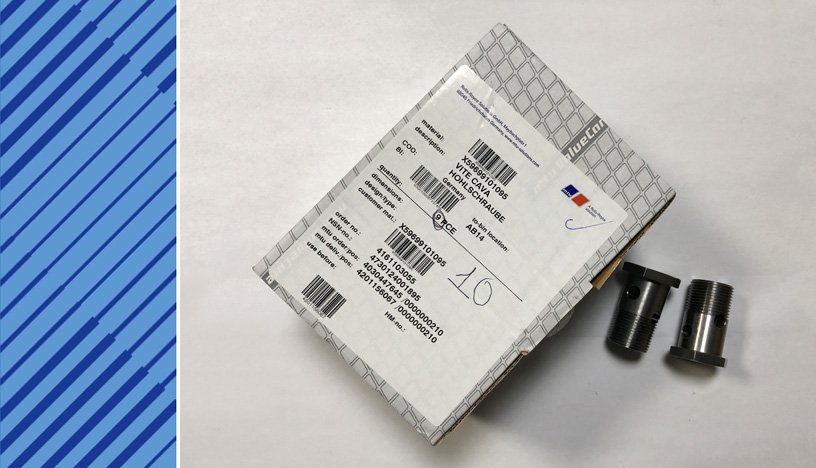

| PART NUMBER | X59699101095 |
| ENGINE TYPE | MTU 4000 ENGINE |
| DESCRIPTION | BANJO SCREW |
| TURBO MODEL | ZR175 |
| UNIT WEIGHT | 0.080 KG |
| HS CODE | 73181595 |
| NATO-VERS.-NR. | 4730124001895 |

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 10 | BEARING HOUSING | X52810100041 | 001 |
| 30 | BEARING BODY | X59610100061 | 001 |
| 40 | O-RING | 700429038002 | 001 |
| 50 | WASHER | 5110251976 | 001 |
| 60 | HOUSING COVER | X52810100043 | 001 |
| 80 | O-RING | 700429185001 | 001 |
| 90 | O-RING | X52810100138 | 002 |
| 100 | HEX SCREW | 000000003496 | 004 |
| 110 | WASHER | 200433008400 | 004 |
| 120 | HEAT SHIELD | X52810100096 | 001 |
| 130 | RING SNAP | 5119940041 | 002 |
| 140 | WASHER | X59599100058 | 002 |
| 150 | BEARING BUSHING | X00016599 | 002 |
| 160 | TURBINE WHEEL | X00004664 | 001 |
| 170 | PISTON RING F/TURBOCHARGER | XT3510100044 | 001 |
| 180 | WASHER | X00010427 | 001 |
| 190 | THRUST BEARING | X59610100101 | 001 |
| 200 | WASHER | X00010428 | 001 |
| 220 | RETAINING RING | X59610100232 | 001 |
| 230 | SCREW | 000912006028 | 003 |
| 240 | WASHER | 200433006400 | 003 |
| 250 | O-RING | 700429105001 | 001 |
| 270 | HEAT SHIELD | X59610100041 | 001 |
| 280 | GROOVED PIN | 001476005001 | 003 |
| 290 | PLATE F/TURBOCHARGER | 700425000235 | 001 |
| 300 | BLIND RIVET | 215977003000 | 002 |
| 320 | HEX SCREW | 000933010026 | 018 |
| 325 | WASHER | 200433010501 | 018 |
| 330 | CLAMP FOR COMPR. HOUSING | X59610100201 | 003 |
| 340 | RING SEAL | 0239978348 | 001 |
| 350 | COMPRESSOR WHEEL | X59610100034 | 001 |
| 360 | COMPRESSOR HOUSING | X59610100058 | 001 |
| 370 | COPPER SEALING RING | 007603042101 | 004 |
| 380 | THREAD PLUG | 000908042001 | 004 |
| 390 | COPPER SEALING RING | 007603030101 | 002 |
| 400 | THREAD PLUG | 000908030002 | 002 |
| 410 | MAGNETIC NUT | X00018307 | 001 |
| 420 | RING CARRIER | X00010426 | 001 |
| 430 | RING SEAL | 5100850060 | 002 |
| 440 | TURBINE HOUSING | X00033650 | 001 |
| 460 | NUT | 5069900251 | 008 |
| 470 | WASHER A16 | 002093016100 | 024 |
| 480 | STUD | 200835008006 | 008 |
| 490 | PISTON RING, COMP. | 234110200000 | 001 |
| 500 | BLIND FLANGE | X52810100005 | 002 |
| 510 | WASHER | 5379900140 | 004 |
| 520 | HEX SCREW | 200933008016 | 004 |
| 530 | PLUG-IN PIPE | X59610100044 | 001 |
| 550 | O-RING | 735252014000 | 001 |
| 580 | COOLANT LINE LEFT | X59610100215 | 001 |
| 590 | BOLT BANJO A15 | 700223013000 | 001 |
| 600 | BANJO SCREW | X59610100045 | 001 |
| 610 | COPPER SEALING RING | 007603022102 | 004 |
| 620 | THREADED BUSHING | X59610100005 | 001 |
| 630 | COPPER SEALING RING | 007603030101 | 001 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | X59699101095 | X59610100045 | N/A |
| 02 | X59699101095 | X59699101095 | 2022/04/01 |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 4000 M63 | 1000 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 M63 | 1500 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 M65L | 1680 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 M63L | 2240 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 M65L | 2240 | 1800 | 170/210 (6.7/8.3) |
| 8V 4000 M54R | 746 | 1600 | 170/210 (6.7/8.3) |
| 8V 4000 M55RN | 746 | 1600 | 170/210 (6.7/8.3) |
| 8V 4000 M54 | 895 | 1800 | 170/210 (6.7/8.3) |
| 8V 4000 M53 | 950 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 M55R | 1119 | 1600 | 170/210 (6.7/8.3) |
| 12V 4000 M53R | 1140 | 1600 | 170/210 (6.7/8.3) |
| 12V 4000 M54 | 1193 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 M64 | 1398 | 1800 | 130/150 (5.1/5.9) |
| 12V 4000 M93 | 2340 | 2100 | 165/190 (6.5/7.5) |
| 12V 4000 M73L | 2160 | 2050 | 170/210 (6.7/8.3) |
| 16V 4000 M73 | 2560 | 1970 | 170/210 (6.7/8.3) |
| 12V 4000 M93L | 2580 | 2100 | 170/210 (6.7/8.3) |
| 20V 4000 M65L | 2800 | 1800 | 170/210 (6.7/8.3) |
