X00016599 BEARING BUSHING

Other
Other X52420200075 ROTARY SEAL X51699100327 SHAFT SEAL RING XP59420700027 IMPELLER 5272010153 SPACER SLEEVE X59407700014 ADAPTER 23540455 CENTRIFUGAL OIL FILTER ASM X00040012 SPEED SENSOR 5110251976 WASHER X59610100061 BEARING BODY X59610100101 THRUST BEARING 8695860572 GASKET KIT XP59420300091 SEAL RING 5241870380 GASKET X52414100132 GASKET FOR EXHAUST PIPE X56912300043 ACTUATING CYLINDER X59420200235 RESTRICTOR X59420200234 RESTRICTOR X59420200233 RESTRICTOR X59420200238 RESTRICTOR 5240384110 CONROD BEARING UPPER HALF XP58420400009 GASKET X00041552 COOLER PLATE X52403800001 CONROD BEARING XP52618300032 OIL FILTER ELEMENT X00008369 PISTON 5410180233 DIAPHRAGM 700429038003 O-RING XP59307500002 O-RING X52405500190 PROFILE GASKET F CYLIND EX59403700072 PISTON X59403800071/42 CONNECTING ROD 5241420780 GASKET 23540304/A1 GASKET KIT 5240384210 CONROD BEARING SIZE 0-1 X00043219 CONROD BEARING SIZE 0-1 5240332730 CRANKSHAFT BEARING DRIVING X00016599 BEARING BUSHING X59301300049 CYLINDER LINER STAGE 0 XP59501800123 FILTER ELEMENT 5260200305 HOUSING+ROTATING ASM EX00008371 PISTON X00E50201372 TEMPERATURE SENSOR X52404500056 SPARKPLUG X00E50200176 CONNECTION INTERFACE 0001424957 RING EXH MANIF X52408300025 FUEL HAND PUMP 5240980281 HOSE X00044065 SLEEVE RUBBER X52420300037 THERMAL ACTUATOR 5240333407 BEARING THRUST/0-1/LO/SPT 5240332608 BEARING THRUST/0-1/UP/RIL 5110850960 PISTON RING X52499100815 4/2-WAY SOL. VALVE XP52712100006 FILTER ELEMENT XP52712100005 FILTER ELEMENT XP52712100003 FILTER ELEMENT XP52712100002 FILTER ELEMENT 5205304069 SPEED TRANSMITTER X52421300004 ALTERNATOR 0219976547 SEAL RING CRANKSHAFT FRONT 0219976647 SEAL RING CRANKSHAFT REAR 5240114210 CYLINDER LINER SIZE 0 XP59408300054 FILTER CARTRIDGE XP59400600004 GASKET KIT XP52718300064 GASKET KIT XP52718300065 CIRCLIP KIT XP52718300060 PAPER INSERT X52808100004 FUEL DELIVERY PUMP 8691840027 ROTOR COMPLETE 5240530905 EXHAUST VALVE 5240531101 INLET VALVE 5240550550 BUSHING X52499100259 ADJUSTING SCREW X52405400013 PUSHROD 0000530926 VALVE KEEPER WEDGE 5240530120 VALVE SPRING OUTER 5240530122 VALVE SPRING INNER 5240530805 EXHAUST VALVE X52404100226 INLET VALVE X52404200037 GASKET FOR CYLINDER HEAD X52404200052 SEAL RING 5240380471 CONROD BOLT 0120373618 OIL CONTROL RING 0090375019 TAPER FACE COMP RING X00009806 RECTANGLR-SECT RING 5240336702 CRANKSHAFT BEARING SIZE 0-1 X52403100003 CRANKSHAFT BEARING SIZE 0-1 5240336602 CRANKSHAFT BEARING LOWER HALF X00016024 CRANKSHAFT BEARING SIZE 0-0 5240332630 CRANKSHAFT BEARING AUX PTO END 5240111380 GASKET X00027830 CYLINDER LINER SIZE 0 C23 5240510110 BEARING CAMSHAFT STD
PART NUMBER X00016599
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION BEARING BUSHING
DIMENSIONS N/A
UNIT WEIGHT 0.068 KG
HS CODE 84833080
NATO-VERS.-NR. 3120123869693
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

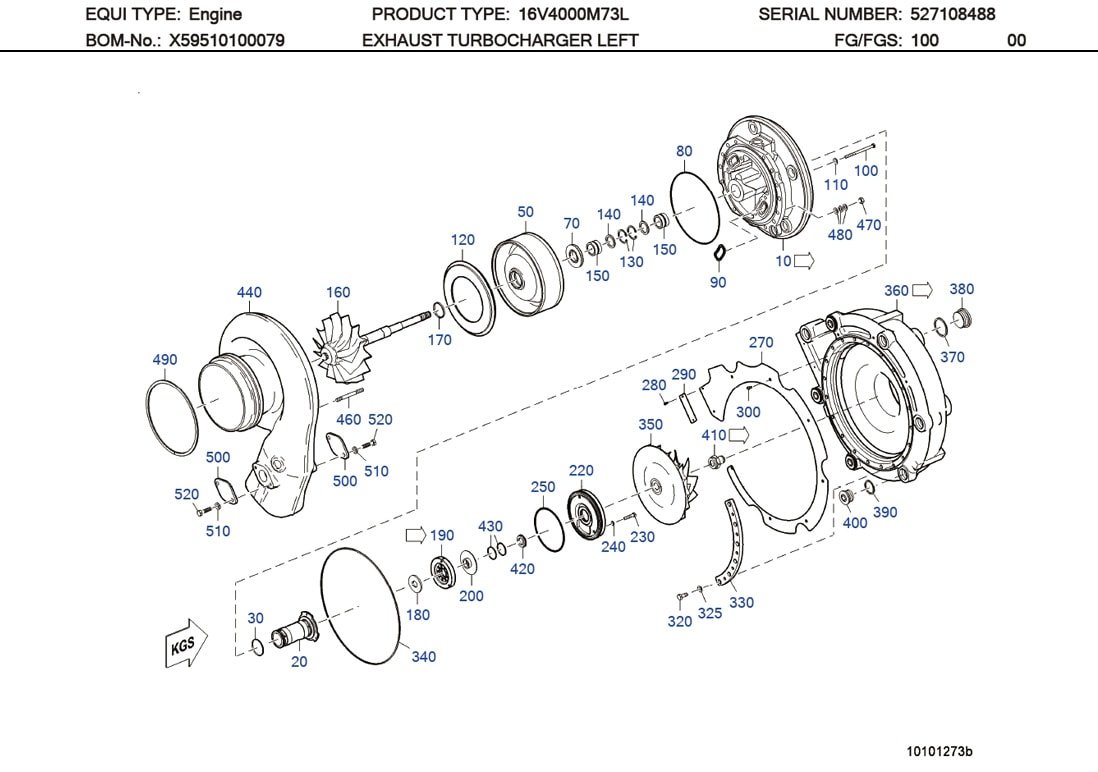

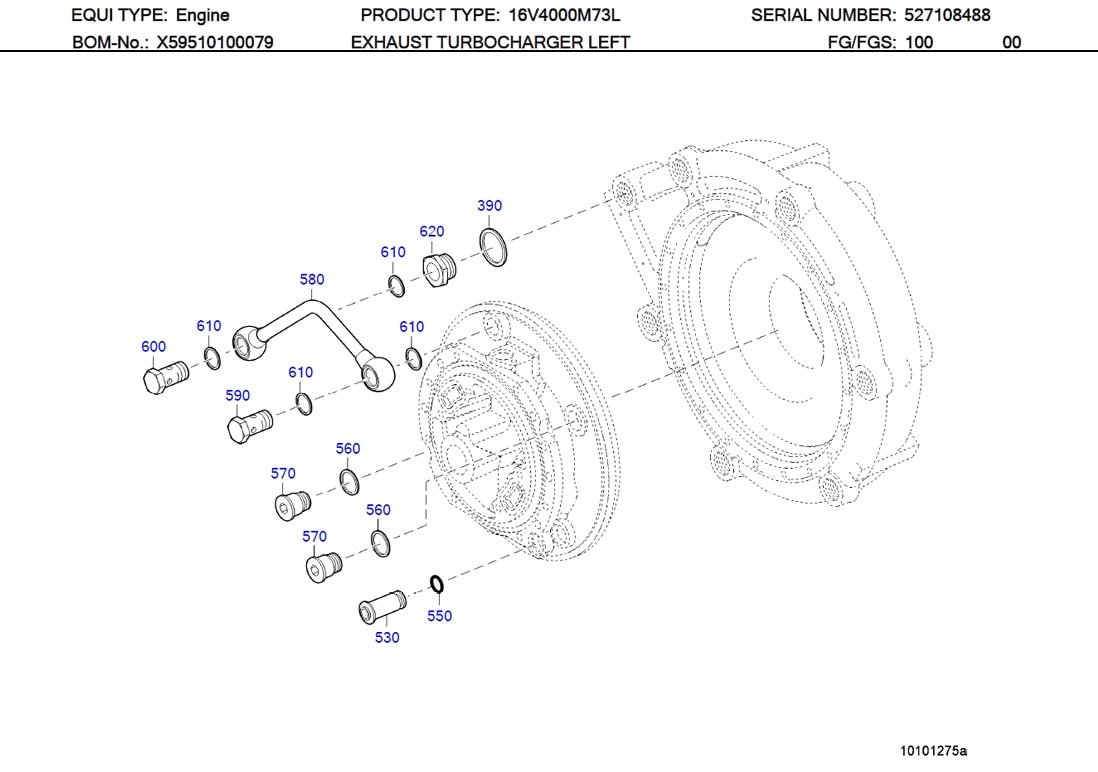

MTU X00016599 Technical Engineering Exploded View

MTU X00016599 Technical Engineering Exploded View MTU X00016599 Technical Engineering Exploded View

MTU X00016599 Technical Engineering Exploded View

C/N Description Part-Number Qty
10 BEARING HOUSING X59510100008 001
20 BEARING BODY X59610100061 001
30 O-RING 700429038002 001
50 HOUSING COVER X52810100043 001
70 WASHER 5110251976 001
80 O-RING 700429185001 001
90 O-RING X52810100138 002
100 BOLT HEX A3C 000000003496 004
110 WASHER 200433008400 004
120 HEAT SHIELD X52810100096 001
130 RING SNAP 5119940041 002
140 WASHER X59599100058 002
150 BEARING BUSHING X00016599 002
160 TURBINE WHEEL X00019436 001
170 RING SEAL 5110850560 001
180 WASHER X00010427 001
190 THRUST BEARING X59610100101 001
200 WASHER X00010428 001
220 RETAINING RING X59610100232 001
230 SCREW 000912006028 003
240 WASHER 200433006400 003
250 O-RING 700429105001 001
270 HEAT SHIELD X59510100033 001
280 GROOVED PIN 001476005001 006
290 LABEL MTU ABGASTURBOLADER ID 39 700425000049 001
300 PIN GROOVED 001476003017 002
320 BOLT HEX 000933010026 018
325 WASHER 200433010501 018
330 CLAMP FOR COMPR. HOUSING X59610100201 003
340 RING SEAL 0239978348 001
350 COMPRESSOR WHEEL X52810100072 001
360 COMPRESSOR HOUSING X59510100035 001
370 WASHER A COP 007603042101 004
380 SCREWED PLUG 000908042001 004
390 WASHER A COP 007603030101 002
400 PLUG 000908030002 002
410 MAGNETIC NUT X00018307 001
420 RING CARRIER X00010426 001
430 RING SEAL 5100850060 002
440 TURBINE HOUSING X59510100030 001
460 STUD 200835008006 008
470 NUT 5069900251 008
480 WASHER A16 002093016100 024
490 PISTON RING, COMP 234110200000 001
500 BLIND FLANGE X52810100005 002
510 WASHER 5379900140 004
520 BOLT AH HEX 200933008016 004
530 PLUG-IN PIPE X59610100044 001
550 O-RING 700429014002 001
560 WASHER A COP 007603026101 002
570 PLUG X52810100094 002
580 COOLANT LINE LEFT X59510100006 001
590 BOLT BANJO A15 700223013000 001
600 BANJO SCREW X59610100045 001
610 WASHER A COP S2000/4000 007603022102 004
620 THREADED BUSHING X59610100005 001

MTU 4000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 4000 R43 1000 1800 170/210 (6.7/8.3)
8V 4000 R43L 1200 1800 170/210 (6.7/8.3)
12V 4000 R43 1500 1800 170/210 (6.7/8.3)
12V 4000 R43L 1800 1800 170/210 (6.7/8.3)
16V 4000 R43R 2000 1800 170/210 (6.7/8.3)
16V 4000 R43 2200 1800 170/210 (6.7/8.3)
16V 4000 R43L 2400 1800 170/210 (6.7/8.3)
20V 4000 R43 2700 1800 170/210 (6.7/8.3)
20V 4000 R43L 3000 1800 170/210 (6.7/8.3)
20V 4000 R63R 2700 1800 170/210 (6.7/8.3)
20V 4000 R63 3000 1800 170/210 (6.7/8.3)
20V 4000 R63L 3300 1800 170/210 (6.7/8.3)
12V 4000 R54 1800 1800 130/150 (5.1/5.9)
16V 4000 M73L 2832 2050 170/190 (6.7/7.5)
16V 4000 R54 2400 1800 170/210 (6.7/8.3)
12V 4000 R64 1500 1800 170/210 (6.7/8.3)
12V 4000 R84 1800 1800 170/210 (6.7/8.3)
16V 4000 R64 2000 1800 170/210 (6.7/8.3)
