| PART NUMBER | X59620600007 |
| ENGINE TYPE | MTU 4000 ENGINE |
| DESCRIPTION | THERMAL ACTUATOR |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 1.150 KG |
| HS CODE | 90329000 |
| NATO-VERS.-NR. | 4820016819565 |

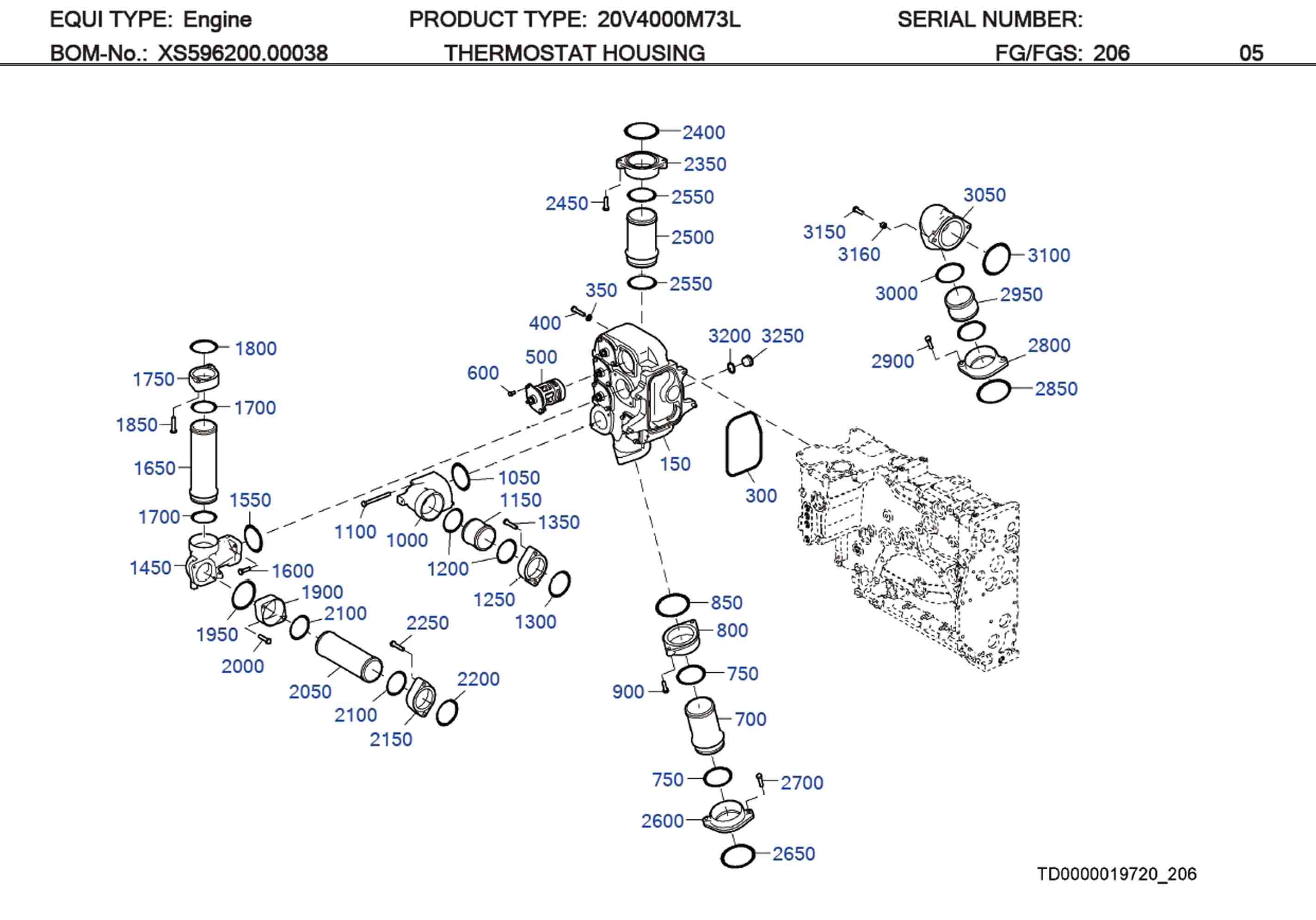

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 150 | THERMOSTAT HOUSING | X59620600005 | 001 |
| 300 | O-RING | 700429205001 | 001 |
| 350 | WASHER | 000125010524 | 004 |
| 400 | HEX SCREW | 000000001039 | 004 |
| 500 | THERMAL ACTUATOR | X59620600004 | 005 |
| 600 | HEX SCREW | 304017008077 | 010 |
| 700 | PLUG-IN PIPE | X52820600003 | 001 |
| 750 | O-RING | 700429085002 | 002 |
| 800 | FLANGE | 5242030139 | 001 |
| 850 | O-RING | 700429105000 | 001 |
| 900 | HEX SCREW | 000000001039 | 002 |
| 1000 | COOLANT ELBOW ON THERMOST. HOUSIN | X52820200157 | 001 |
| 1050 | O-RING | 700429083000 | 001 |
| 1100 | HEX SCREW | 204014010007 | 002 |
| 1150 | PLUG-IN PIPE | X52820600005 | 001 |
| 1200 | O-RING | 700429075001 | 002 |
| 1250 | FLANGE | X52820300003 | 001 |
| 1300 | O-RING | 700429083000 | 001 |
| 1350 | HEX SCREW | 000000001042 | 002 |
| 1450 | COOLANT ELBOW | X00035748 | 001 |
| 1550 | O-RING | 700429083000 | 001 |
| 1600 | HEX SCREW | 000000003326 | 002 |
| 1650 | PLUG-IN PIPE | X59620600001 | 001 |
| 1700 | O-RING | 700429075001 | 002 |
| 1750 | FLANGE | X52820300003 | 001 |
| 1800 | O-RING | 700429083000 | 001 |
| 1850 | HEX SCREW | 000000001042 | 002 |
| 1900 | FLANGE | X52820300003 | 001 |
| 1950 | O-RING | 700429083000 | 001 |
| 2000 | HEX SCREW | 204017010021 | 002 |
| 2050 | PLUG-IN PIPE | X52820600004 | 001 |
| 2100 | O-RING | 700429075001 | 002 |
| 2150 | FLANGE | X52820300003 | 001 |
| 2200 | O-RING | 700429083000 | 001 |
| 2250 | HEX SCREW | 000000001042 | 002 |
| 2350 | FLANGE | 5242030139 | 001 |
| 2400 | O-RING | 700429105000 | 001 |
| 2450 | HEX SCREW | 000000003326 | 002 |
| 2500 | PLUG-IN PIPE | X52820600003 | 001 |
| 2550 | O-RING | 700429085002 | 002 |
| 2600 | FLANGE | 5242030139 | 001 |
| 2650 | O-RING | 700429105000 | 001 |
| 2700 | HEX SCREW | 000000001039 | 002 |
| 2800 | FLANGE | 5242030139 | 001 |
| 2850 | O-RING | 700429105000 | 001 |
| 2900 | HEX SCREW | 000000001039 | 002 |
| 2950 | PLUG-IN PIPE | X52820600002 | 001 |
| 3000 | O-RING | 700429085002 | 002 |
| 3050 | COOLANT ELBOW | X00029114 | 001 |
| 3100 | O-RING | 700429105000 | 001 |
| 3150 | HEX SCREW | 000000003712 | 002 |
| 3160 | SPACER BUSHING | 5511530050 | 002 |
| 3200 | COPPER SEALING RING | 007603030101 | 001 |
| 3250 | THREAD PLUG | 000908030002 | 001 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | X59620600007 | X52820200173 | N/A |
| 02 | X59620600007 | X59620600004 | 2013/07/01 |
| 03 | X59620600007 | X59620600007 | 2020/06/01 |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 4000 M63 | 1000 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 M63 | 1500 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 M65L | 1680 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 M63L | 2240 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 M65L | 2240 | 1800 | 170/210 (6.7/8.3) |
| 8V 4000 M54R | 746 | 1600 | 170/210 (6.7/8.3) |
| 8V 4000 M55RN | 746 | 1600 | 170/210 (6.7/8.3) |
| 8V 4000 M54 | 895 | 1800 | 170/210 (6.7/8.3) |
| 8V 4000 M53 | 950 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 M55R | 1119 | 1600 | 170/210 (6.7/8.3) |
| 12V 4000 M53R | 1140 | 1600 | 170/210 (6.7/8.3) |
| 12V 4000 M54 | 1193 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 M64 | 1398 | 1800 | 130/150 (5.1/5.9) |
| 12V 4000 M93 | 2340 | 2100 | 165/190 (6.5/7.5) |
| 12V 4000 M73L | 2160 | 2050 | 170/210 (6.7/8.3) |
| 16V 4000 M73 | 2560 | 1970 | 170/210 (6.7/8.3) |
| 12V 4000 M93L | 2580 | 2100 | 170/210 (6.7/8.3) |
| 20V 4000 M65L | 2800 | 1800 | 170/210 (6.7/8.3) |
