5240380471 CONROD BOLT

Other
Other 8695860572 GASKET KIT XP59420300091 SEAL RING 5241870380 GASKET X52414100132 GASKET FOR EXHAUST PIPE X56912300043 ACTUATING CYLINDER X59420200235 RESTRICTOR X59420200234 RESTRICTOR X59420200233 RESTRICTOR X59420200238 RESTRICTOR 5240384110 CONROD BEARING UPPER HALF XP58420400009 GASKET X00041552 COOLER PLATE X52403800001 CONROD BEARING XP52618300032 OIL FILTER ELEMENT X00008369 PISTON 5410180233 DIAPHRAGM 700429038003 O-RING XP59307500002 O-RING X52405500190 PROFILE GASKET F CYLIND EX59403700072 PISTON X59403800071/42 CONNECTING ROD 5241420780 GASKET 23540304/A1 GASKET KIT 5240384210 CONROD BEARING SIZE 0-1 X00043219 CONROD BEARING SIZE 0-1 5240332730 CRANKSHAFT BEARING DRIVING X00016599 BEARING BUSHING X59301300049 CYLINDER LINER STAGE 0 XP59501800123 FILTER ELEMENT 5260200305 HOUSING+ROTATING ASM EX00008371 PISTON X00E50201372 TEMPERATURE SENSOR X52404500056 SPARKPLUG X00E50200176 CONNECTION INTERFACE 0001424957 RING EXH MANIF X52408300025 FUEL HAND PUMP 5240980281 HOSE X00044065 SLEEVE RUBBER X52420300037 THERMAL ACTUATOR 5240333407 BEARING THRUST/0-1/LO/SPT 5240332608 BEARING THRUST/0-1/UP/RIL 5110850960 PISTON RING X52499100815 4/2-WAY SOL. VALVE XP52712100006 FILTER ELEMENT XP52712100005 FILTER ELEMENT XP52712100003 FILTER ELEMENT XP52712100002 FILTER ELEMENT 5205304069 SPEED TRANSMITTER X52421300004 ALTERNATOR 0219976547 SEAL RING CRANKSHAFT FRONT 0219976647 SEAL RING CRANKSHAFT REAR 5240114210 CYLINDER LINER SIZE 0 XP59408300054 FILTER CARTRIDGE XP59400600004 GASKET KIT XP52718300064 GASKET KIT XP52718300065 CIRCLIP KIT XP52718300060 PAPER INSERT X52808100004 FUEL DELIVERY PUMP 8691840027 ROTOR COMPLETE 5240530905 EXHAUST VALVE 5240531101 INLET VALVE 5240550550 BUSHING X52499100259 ADJUSTING SCREW X52405400013 PUSHROD 0000530926 VALVE KEEPER WEDGE 5240530120 VALVE SPRING OUTER 5240530122 VALVE SPRING INNER 5240530805 EXHAUST VALVE X52404100226 INLET VALVE X52404200037 GASKET FOR CYLINDER HEAD X52404200052 SEAL RING 5240380471 CONROD BOLT 0120373618 OIL CONTROL RING 0090375019 TAPER FACE COMP RING X00009806 RECTANGLR-SECT RING 5240336702 CRANKSHAFT BEARING SIZE 0-1 X52403100003 CRANKSHAFT BEARING SIZE 0-1 5240336602 CRANKSHAFT BEARING LOWER HALF X00016024 CRANKSHAFT BEARING SIZE 0-0 5240332630 CRANKSHAFT BEARING AUX PTO END 5240111380 GASKET X00027830 CYLINDER LINER SIZE 0 C23 5240510110 BEARING CAMSHAFT STD
PART NUMBER 5240380471
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION CONROD BOLT
DIMENSIONS M20 1.50 X 103. 0 LG 18
UNIT WEIGHT 0.308 KG
HS CODE 73181595
NATO-VERS.-NR. 5306123786011
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

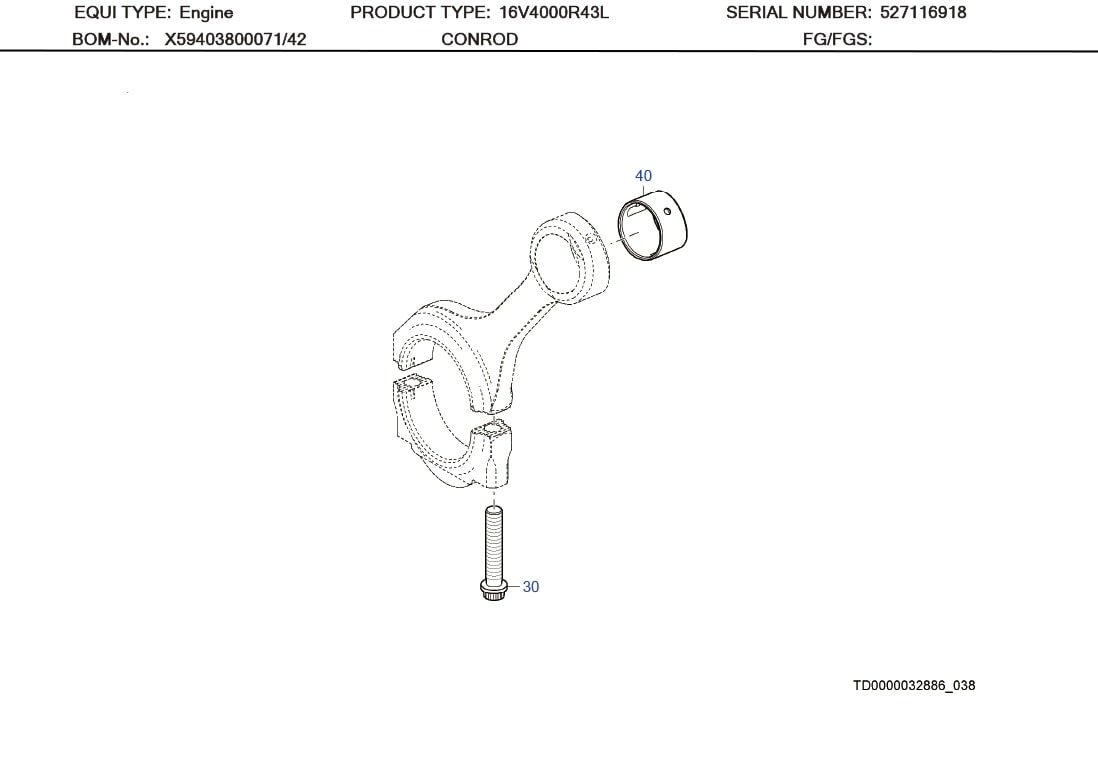

MTU 5240380471 Technical Engineering Exploded View

MTU 5240380471 Technical Engineering Exploded View

MTU 5240380471 Technical Engineering Exploded View

C/N Description Part-Number Qty
30 BOLT M20 1.50 X 103. 0 LG 18 CONROD 5240380471 001
40 BUSHING CONROD SIZE 0 5240382550 001

MTU 4000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 4000 R43 1000 1800 170/210 (6.7/8.3)
8V 4000 R43L 1200 1800 170/210 (6.7/8.3)
12V 4000 R43 1500 1800 170/210 (6.7/8.3)
12V 4000 R43L 1800 1800 170/210 (6.7/8.3)
16V 4000 R43R 2000 1800 170/210 (6.7/8.3)
16V 4000 R43 2200 1800 170/210 (6.7/8.3)
16V 4000 R43L 2400 1800 170/210 (6.7/8.3)
20V 4000 R43 2700 1800 170/210 (6.7/8.3)
20V 4000 R43L 3000 1800 170/210 (6.7/8.3)
20V 4000 R63R 2700 1800 170/210 (6.7/8.3)
20V 4000 R63 3000 1800 170/210 (6.7/8.3)
20V 4000 R63L 3300 1800 170/210 (6.7/8.3)
12V 4000 R54 1800 1800 130/150 (5.1/5.9)
16V 4000 M73L 2832 2050 170/190 (6.7/7.5)
16V 4000 R54 2400 1800 170/210 (6.7/8.3)
12V 4000 R64 1500 1800 170/210 (6.7/8.3)
12V 4000 R84 1800 1800 170/210 (6.7/8.3)
16V 4000 R64 2000 1800 170/210 (6.7/8.3)
