| PART NUMBER | 5410180233 |
| ENGINE TYPE | MTU 4000 ENGINE |

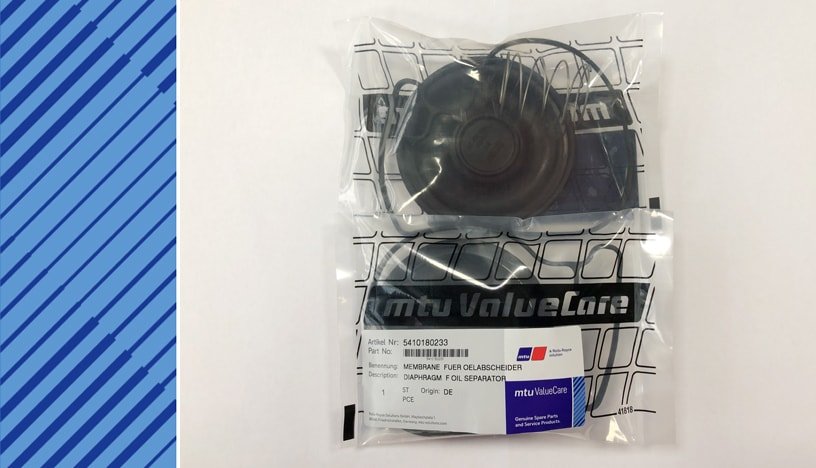

| DESCRIPTION | DIAPHRAGM F OIL SEPARATOR |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.019 KG |
| HS CODE | 84099900 |
| NATO-VERS.-NR. | 4820123595347 |

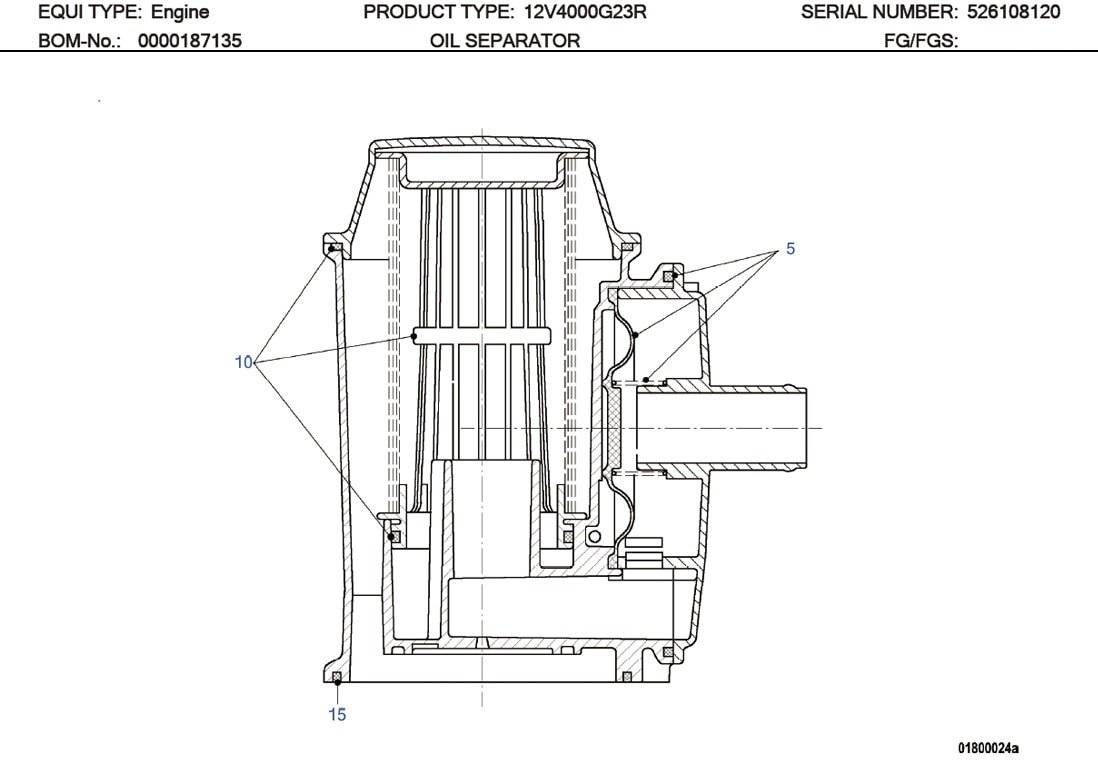

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 5 | DIAPHRAGM F OIL SEPARATOR | 5410180233 | 001 |
| 10 | OIL SEPARATOR | 5200180035 | 001 |
| 15 | GASKET | 0000180680 | 001 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 5410180233 | 5410180033 | N/A |
| 02 | 5410180233 | 5410180333 | 2003/12/01 |
| 03 | 5410180233 | 5410180233 | 2004/01/01 |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 4000 R43 | 1000 | 1800 | 170/210 (6.7/8.3) |
| 8V 4000 R43L | 1200 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R43 | 1500 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R43L | 1800 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 R43R | 2000 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 R43 | 2200 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 R43L | 2400 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R43 | 2700 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R43L | 3000 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R63R | 2700 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R63 | 3000 | 1800 | 170/210 (6.7/8.3) |
| 20V 4000 R63L | 3300 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R54 | 1800 | 1800 | 130/150 (5.1/5.9) |
| 16V 4000 C11 | 1715 | 1500 | 165/190 (6.5/7.5) |
| 16V 4000 R54 | 2400 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R64 | 1500 | 1800 | 170/210 (6.7/8.3) |
| 12V 4000 R84 | 1800 | 1800 | 170/210 (6.7/8.3) |
| 16V 4000 R64 | 2000 | 1800 | 170/210 (6.7/8.3) |
