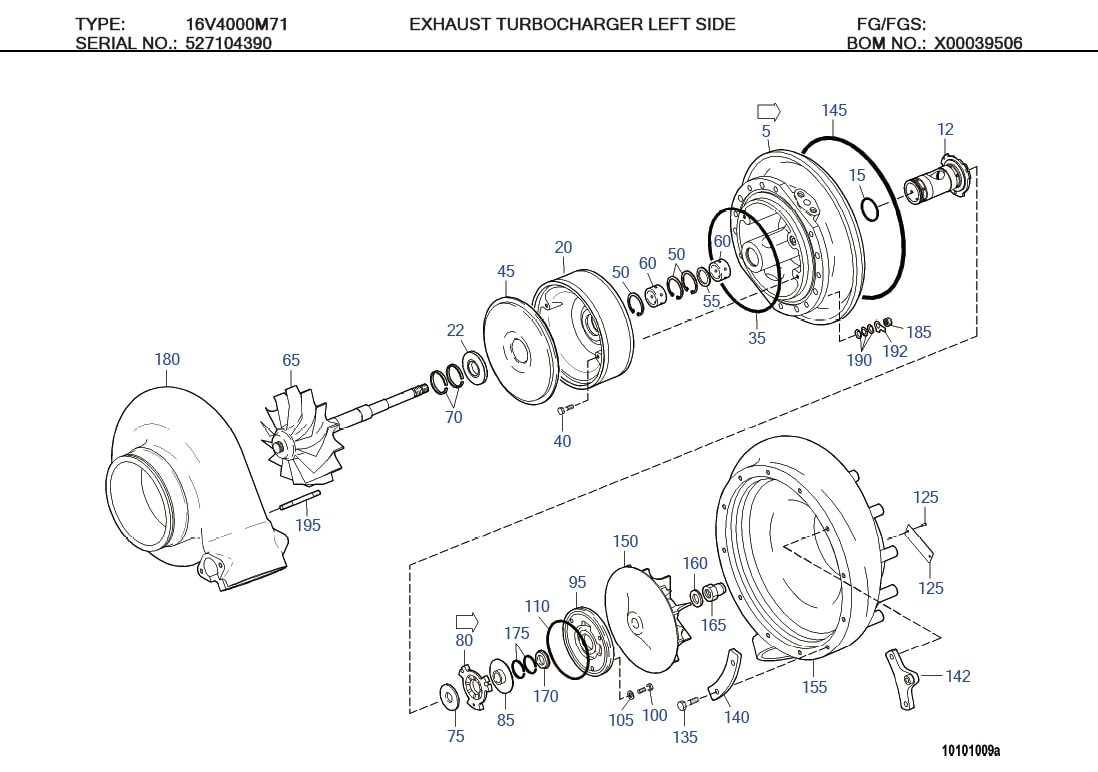

C/N | Description | Part-Number | Qty |
---|---|---|---|
5 | BEARING HOUSING | X00007881 | 001 |
12 | BEARING BODY | X00018410 | 001 |
15 | O-RING | 700429038002 | 001 |
20 | HOUSING COVER | 5110821302 | 001 |
22 | WASHER | 5110251976 | 001 |
35 | O-RING | 700429185001 | 001 |
40 | SCREW | 000000001781 | 002 |
45 | HEAT SHIELD | 5110813403 | 001 |
50 | SNAP RING | 5119940041 | 003 |
55 | WASHER | 5110250052 | 002 |
60 | BEARING BUSHING | X00016599 | 002 |
65 | TURBINE WHEEL | 5110804320 | 001 |
70 | PISTON RING | 5110850960 | 002 |
80 | THRUST BEARING | 5110200612 | 001 |
85 | WASHER | X00010428 | 001 |
95 | RETAINING RING | 5110250241 | 001 |
100 | SCREW | 304017006064 | 003 |
105 | WASHER | 200433006400 | 003 |
110 | O-RING | 700429105001 | 001 |
115 | PLATE | 700425000049 | 001 |
125 | GROOVED PIN | 001476003017 | 002 |
135 | SCREW | 304017008079 | 012 |
140 | CLAMP | 5119950048 | 002 |
142 | CLAMP | X00033211 | 002 |
145 | O-RING | 0239978348 | 001 |
150 | COMPRESSOR WHEEL | 5110250702 | 001 |
155 | COMPRESSOR HOUSING | 5110215414 | 001 |
160 | WASHER | 5110250376 | 001 |
165 | NUT | 5205301471 | 001 |
170 | RING CARRIER | X00010426 | 001 |
175 | PISTON RING | 5100850060 | 002 |
180 | TURBINE HOUSING | 5110813330 | 001 |
185 | HEX NUT | 000934008013 | 008 |
190 | DISHED WASHER | 002093016100 | 024 |
192 | TAB WASHER | 700292008400 | 008 |
195 | STUD | 200835008005 | 008 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | XT3510100044 | 5110850260 | N/A |
02 | XT3510100044 | 5110850560 | 1990/09/01 |
03 | XT3510100044 | 5110850960 | 1990/10/01 |
04 | XT3510100044 | XT3510100044 | 2017/03/23 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 4000 R43 | 1000 | 1800 | 170/210 (6.7/8.3) |
8V 4000 R43L | 1200 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43L | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43R | 2000 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43 | 2200 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43L | 2400 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43 | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43L | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63R | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63 | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63L | 3300 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R54 | 1800 | 1800 | 130/150 (5.1/5.9) |
16V 4000 M71 | 1850 | 2000 | 170/210 (6.7/8.3) |
16V 4000 R54 | 2400 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R64 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R84 | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R64 | 2000 | 1800 | 170/210 (6.7/8.3) |
