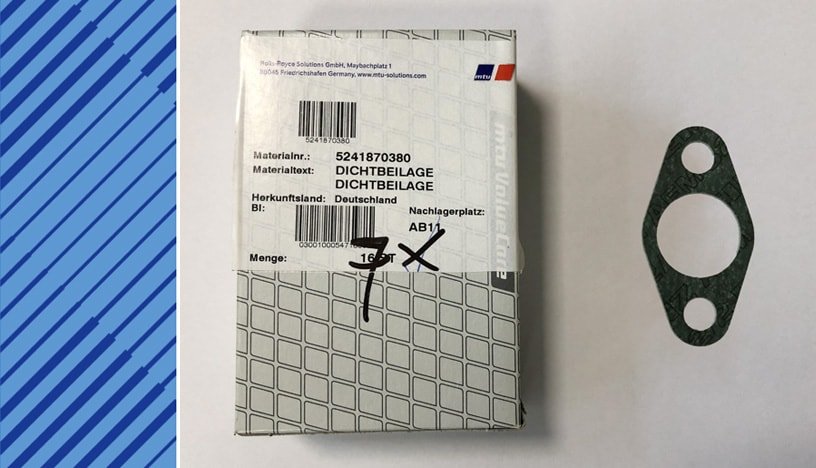

PART NUMBER 5241870380
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION GASKET
DIMENSIONS N/A
UNIT WEIGHT 0.002 KG
HS CODE 84849000
NATO-VERS.-NR. N/A
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

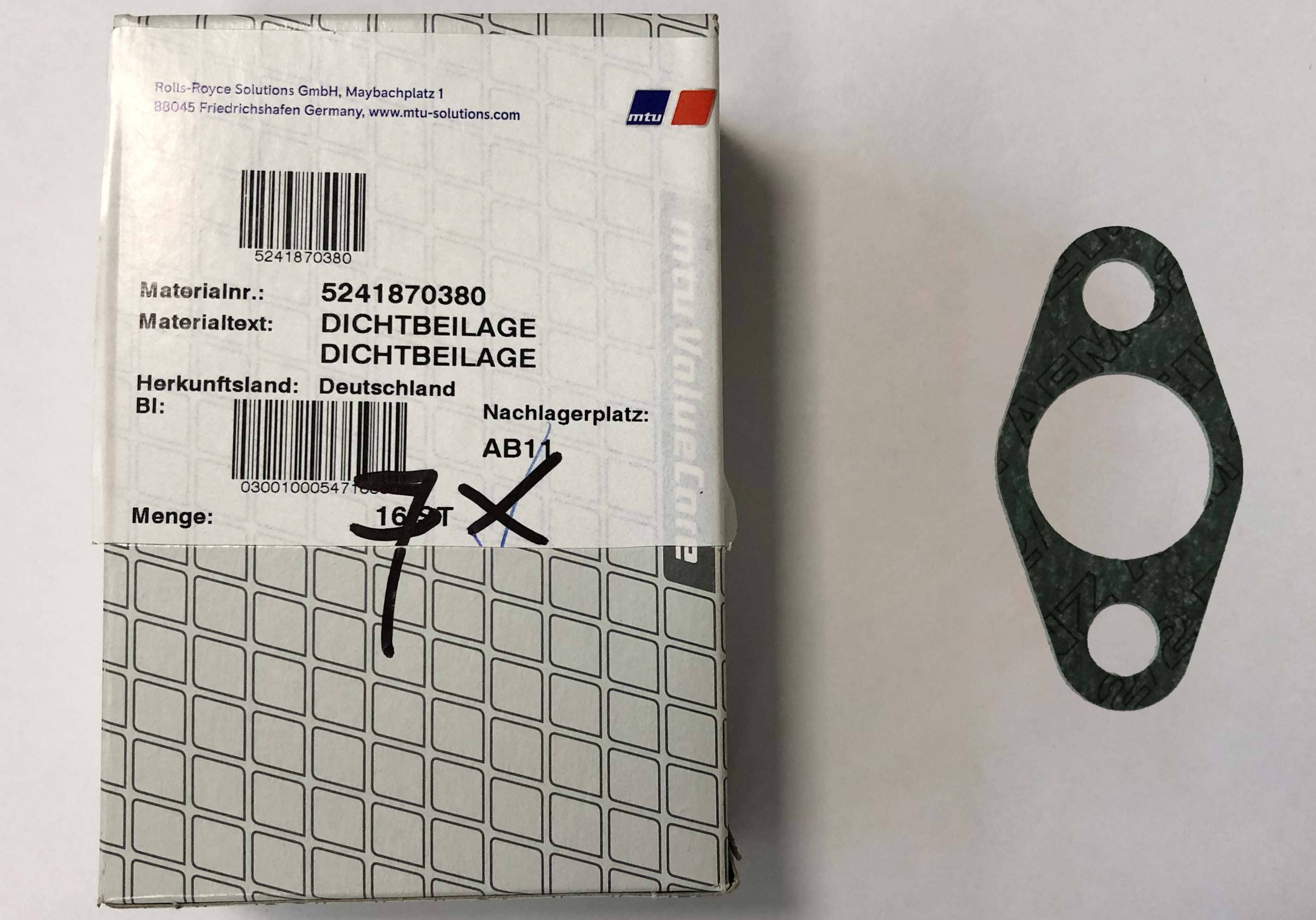

MTU 4000 Parts 5241870380 TURBOCHARGER GASKET

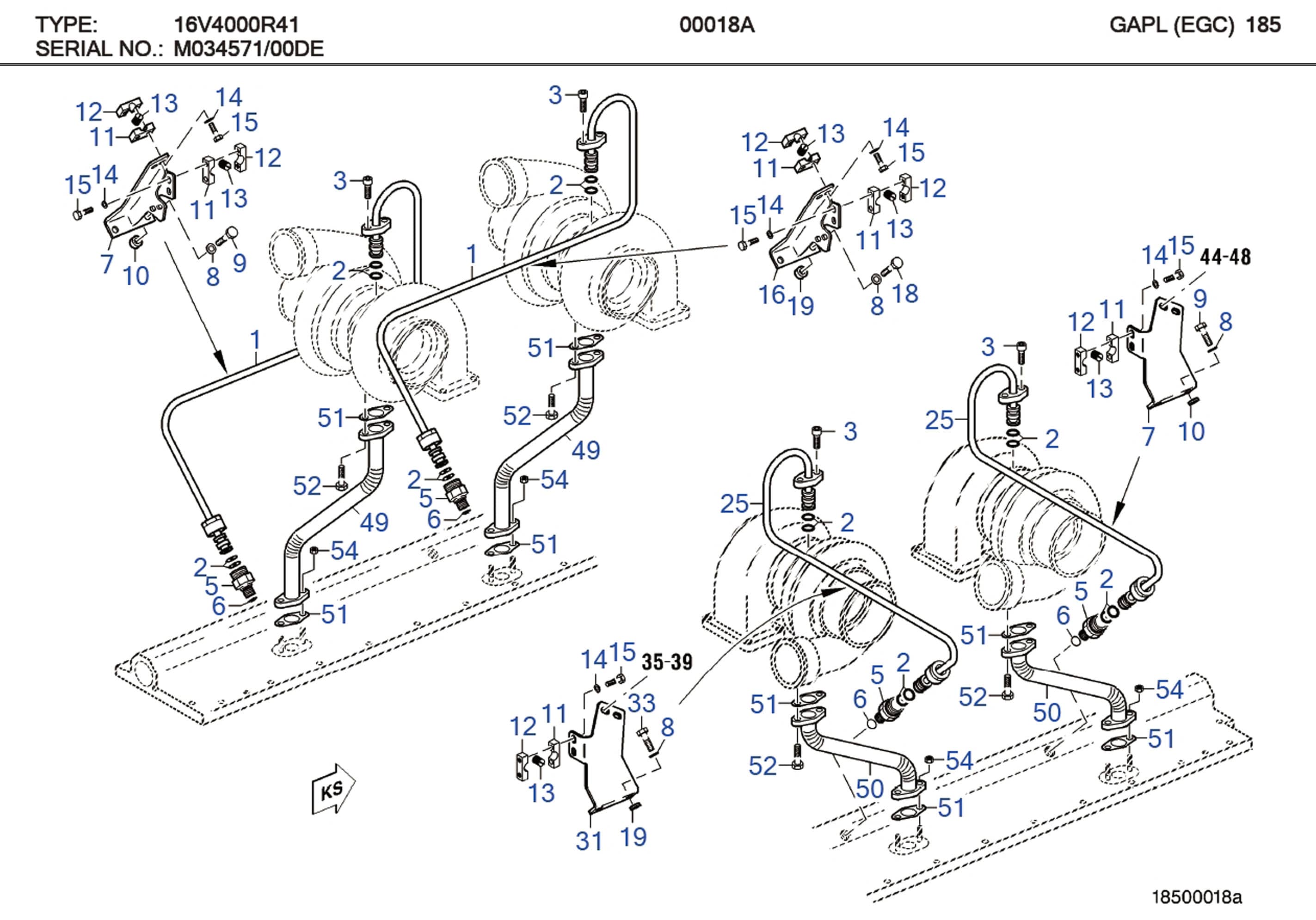

MTU 5241870380 Technical Engineering Exploded View MTU 4000 Parts 5241870380 TURBOCHARGER GASKET

MTU 4000 Parts 5241870380 TURBOCHARGER GASKET

C/N Description Part-Number Qty
01 PRESSURE OIL LINE 5271801720 002
02 O-RING 700429015004 016
03 SCREW 000912010065 008
05 SCREW-FITTING UNION 5249972172 004
06 O-RING 0005333080 004
07 PUNCH HOLDER 5271800640 002
08 COVER DISC 000125010524 008
09 SCREW 000931010292 004
10 COVER DISC 007349010002 004
11 PIPE HALF-CLAMP 5249950468 008
12 PIPE HALF-CLAMP 5249950568 008
13 GROMMET 5249970281 008
14 COVER DISC 000125008427 016
15 SCREW 304017008083 016
16 PUNCH HOLDER 5271800440 001
18 SCREW 000931010158 002
19 COVER DISC 735151010200 004
25 PRESSURE OIL LINE 5271801620 002
31 PUNCH HOLDER 5271800540 001
33 SCREW 000931010237 002
49 PRESSURE OIL LINE 5271801820 002
50 PRESSURE OIL LINE 5271801920 002
51 GASKET 5241870380 008
52 SCREW 000933010035 008
54 HEX NUT 000934010005 008

5241870380 SUPERSEDED PART AND EFFECTIVE DATE

5241870380 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5241870380 5241870180 N/A
02 5241870380 5241420380 1998/03/01

MTU 4000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 4000 M63 1000 1800 170/210 (6.7/8.3)
12V 4000 M63 1500 1800 170/210 (6.7/8.3)
12V 4000 M65L 1680 1800 170/210 (6.7/8.3)
16V 4000 M63L 2240 1800 170/210 (6.7/8.3)
16V 4000 M65L 2240 1800 170/210 (6.7/8.3)
8V 4000 M54R 746 1600 170/210 (6.7/8.3)
8V 4000 M55RN 746 1600 170/210 (6.7/8.3)
8V 4000 M54 895 1800 170/210 (6.7/8.3)
8V 4000 M53 950 1800 170/210 (6.7/8.3)
12V 4000 M55R 1119 1600 170/210 (6.7/8.3)
12V 4000 M53R 1140 1600 170/210 (6.7/8.3)
12V 4000 M54 1193 1800 170/210 (6.7/8.3)
12V 4000 M64 1398 1800 130/150 (5.1/5.9)
12V 4000 M93 2340 2100 165/190 (6.5/7.5)
12V 4000 M73L 2160 2050 170/210 (6.7/8.3)
16V 4000 M73 2560 1970 170/210 (6.7/8.3)
12V 4000 M93L 2580 2100 170/210 (6.7/8.3)
20V 4000 M65L 2800 1800 170/210 (6.7/8.3)
