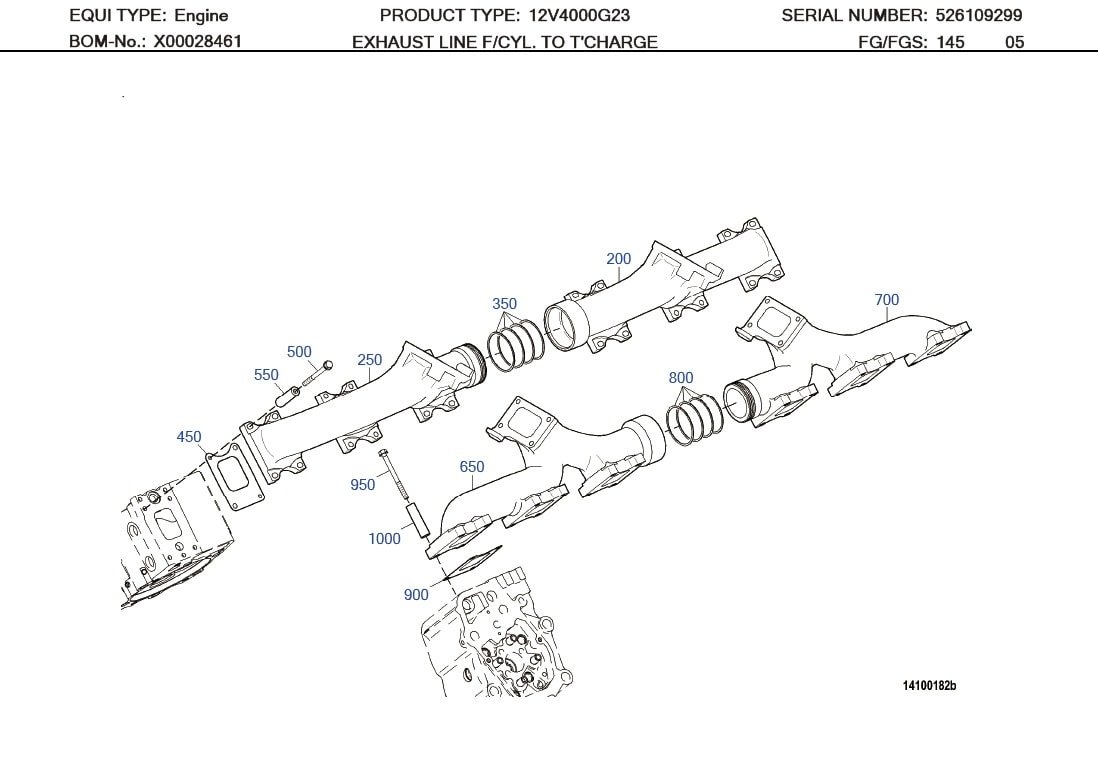

C/N | Description | Part-Number | Qty |
---|---|---|---|
200 | EXHAUST PIPE | X52614100006 | 001 |
250 | EXHAUST PIPE | X52614100007 | 001 |

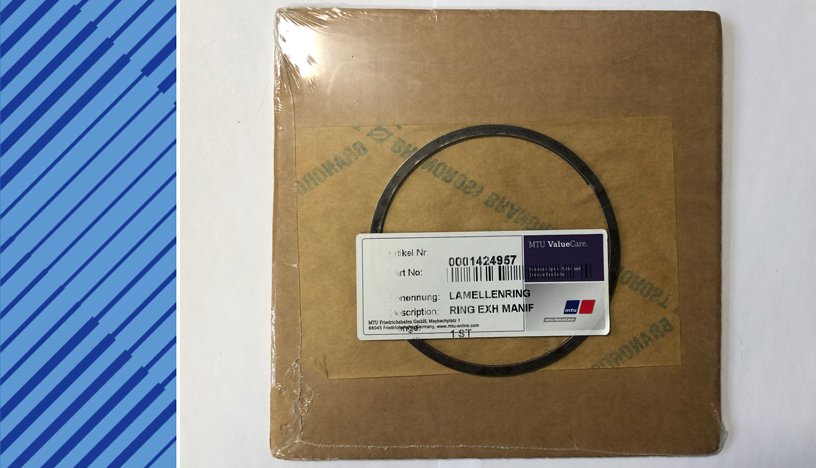

350 | LAMELLAR RING | 0001424957 | 004 |
450 | GASKET | 5241420580 | 006 |
500 | BOLT HEX FLG B16 | 08929357 | 024 |
550 | SPACER SLEEVE | 5241420553 | 024 |
650 | EXHAUST PIPE | X52614100006 | 001 |
700 | EXHAUST PIPE | X52614100007 | 001 |
800 | LAMELLAR RING | 0001424957 | 004 |
900 | GASKET | 5241420580 | 006 |
950 | BOLT HEX FLG B16 | 08929357 | 024 |
1000 | SPACER SLEEVE | 5241420553 | 024 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 0001424957 | 0001420457 | N/A |
02 | 0001424957 | 0001422457 | 1989/09/01 |
03 | 0001424957 | 0001424957 | 1989/10/01 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 4000 R43 | 1000 | 1800 | 170/210 (6.7/8.3) |
8V 4000 R43L | 1200 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R43L | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43R | 2000 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43 | 2200 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R43L | 2400 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43 | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R43L | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63R | 2700 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63 | 3000 | 1800 | 170/210 (6.7/8.3) |
20V 4000 R63L | 3300 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R54 | 1800 | 1800 | 130/150 (5.1/5.9) |
12V 4000 G23 | 1420 | 1500 | 170/210 (6.7/8.3) |
16V 4000 R54 | 2400 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R64 | 1500 | 1800 | 170/210 (6.7/8.3) |
12V 4000 R84 | 1800 | 1800 | 170/210 (6.7/8.3) |
16V 4000 R64 | 2000 | 1800 | 170/210 (6.7/8.3) |
