PART NUMBER X00043219
ENGINE TYPE MTU 4000 ENGINE

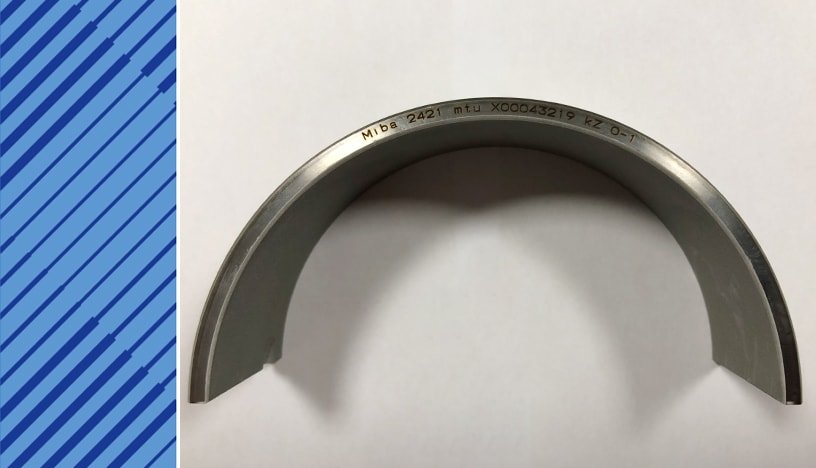

DESCRIPTION CONROD BEARING SIZE 0-1
DIMENSIONS N/A
UNIT WEIGHT 0.280 KG
HS CODE 84833080
NATO-VERS.-NR. N/A
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

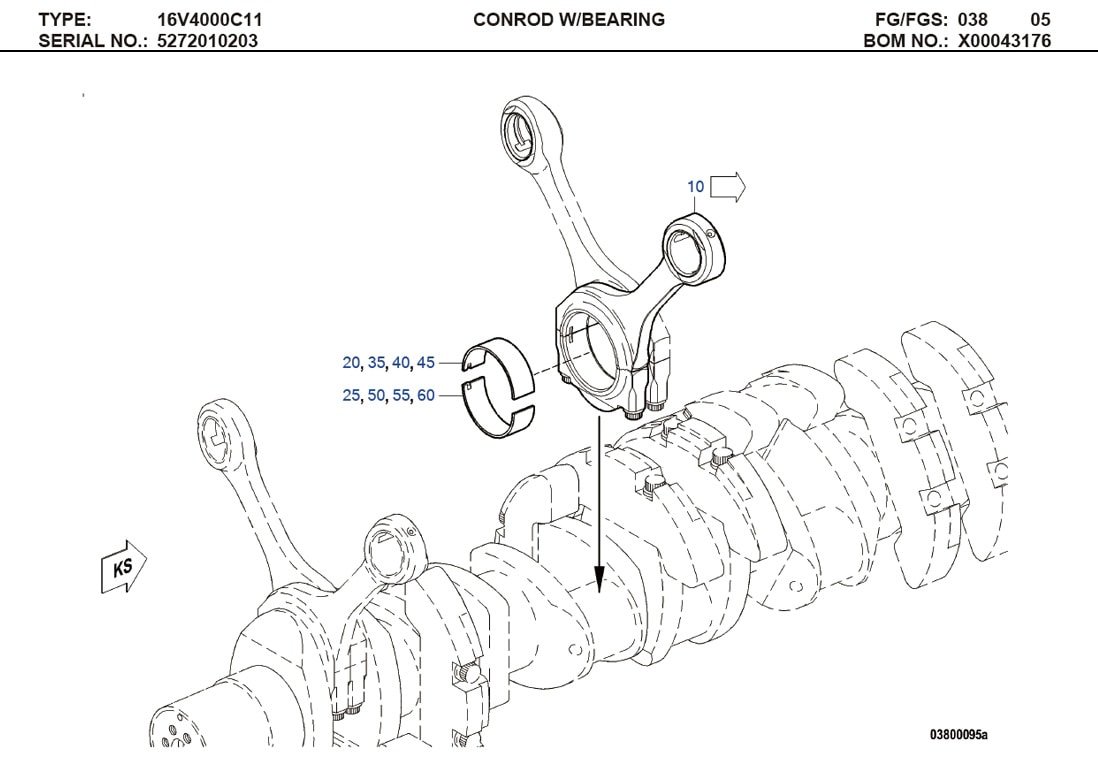

MTU X00043219 Technical Engineering Exploded View

MTU X00043219 Technical Engineering Exploded View

MTU X00043219 Technical Engineering Exploded View

C/N Description Part-Number Qty
10 CONROD ASM X52603800003/42 016
20 CONROD BEARING UPPER HALF 5240332730 016
25 BEARING ROD/0-0/LO/SPUT X00043218 016
35 CONROD BEARING SIZE 0-1 5240384210 001
40 CONROD BEARING SIZE 0-2 5240384310 001
45 CONROD BEARING SIZE 0-3 5240384410 001
50 CONROD BEARING SIZE 0-1 X00043219 001
55 CONROD BEARING SIZE 0-2 X00043220 001
60 CONROD BEARING SIZE 0-3 X00043221 001

X00043219 SUPERSEDED PART AND EFFECTIVE DATE

X00043219 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 X00043219 5240383611 N/A
02 X00043219 X00043219 2006/02/01

MTU 4000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
16V 4000 C11 1715 1900 165/190 (6.5/7.5)
12V 4000 C11R 1193 1900 165/190 (6.5/7.5)
12V 4000 C11 1286 1900 165/190 (6.5/7.5)
12V 4000 C21R 1398 1900 165/190 (6.5/7.5)
16V 4000 C21R 1492 1900 165/190 (6.5/7.5)
12V 4000 C21 1510 1900 165/190 (6.5/7.5)
16V 4000 C21 1864 1900 165/190 (6.5/7.5)
16V 4000 C21L 2013 1900 165/190 (6.5/7.5)
16V 4000 C31 2125 1900 165/190 (6.5/7.5)
20V 4000 R63R 2700 1800 170/210 (6.7/8.3)
20V 4000 R63 3000 1800 170/210 (6.7/8.3)
20V 4000 R63L 3300 1800 170/210 (6.7/8.3)
12V 4000 R54 1800 1800 130/150 (5.1/5.9)
16V 4000 M73L 2832 2050 170/190 (6.7/7.5)
16V 4000 R54 2400 1800 170/210 (6.7/8.3)
12V 4000 R64 1500 1800 170/210 (6.7/8.3)
12V 4000 R84 1800 1800 170/210 (6.7/8.3)
16V 4000 R64 2000 1800 170/210 (6.7/8.3)
