MTU 4000 PARTS | XP56918300055 | OVERFLOW VALVE

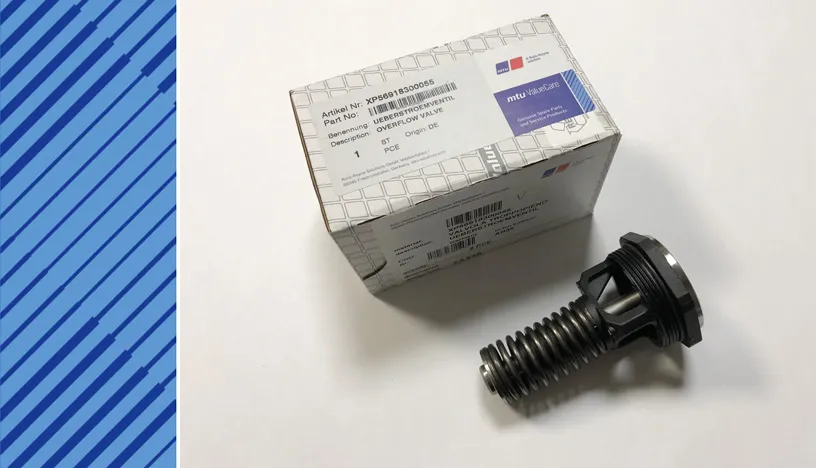

XP56918300055 OVERFLOW VALVE

Other
OtherX52601600011 GASKETX59407700021 ADAPTATEUR P. CONDUITE HPX59499100015 HOSE FOR AIR COMPRESSORX59499100014 HOSE FOR AIR COMPRESSOREX59403800070/42 CONROD0005357333 SPEED SENSOR0005357833 SPEED SENSORX00E50207196 PRESSURE SENSORX00E50207217 PRESSURE SENSOR0005358133 SPEED SENSOR5241420057 SEALING RINGX54707700072 RELIEF VALVE FOR 4-CYL HP PUMP0005357633 SPEED SENSORX59417200010 STARTER ELECTRIC5249900705 BOLT HEX FLG11506101 NUT23524783 SEAL5244920181 SEALING RING5240382550 BUSHING CONROD SIZE 0XP59612300047 INSULATIONX54920200040/87 WATER PUMP HIGH-TEMPX52499100022 GASKETX54999100010 GASKETX59399100031 GASKETX00008172 GROMMETX59399100033 GROMMETX59414100022 RESTRICTOR5240111480 GASKET5241880180 GASKETX00004135 GASKETX00038531 HOSE TURBO OIL SUPPL000125013012 WASHER0001800015 PRESSURE REDUCING VA LVE ASSYX52408100007 LINK915005020001 SEALING CONE000912010014 BOLT HEX SOC HD700223010000 BOLT BANJO A125319970245 SEALING RING000908030002 THREAD PLUG5249900605 BOLT HEX CAPXP52799101135 SEAL RING0000160119 SEALING RING5240160153 TUBE INJECTOR0005357533 SPEED SENSORX59407700023 HP FUEL LINE5240780824 CONN FUEL RAIL REARX52808100014 FUEL DELIVERY PUMPX52404200043 GASKET FOR CYLINDER HEAD0035352231 PRESSURE SENSOR0049976736 VALVE DRAINX00007116 V-BAND CLAMPX59399100141 BELLOWSX00E50207213 PRESSURE SENSORX57508300091 FUEL FILTER SPIN-ON5240530830 VALVE GUIDEX52404200010 VALVE GUIDEEX52407500064 INJECTORX54799101554 NON-RETURN VALVE WITH BAFFLEX52414700025 INSULATING MAT FOR EXH PIPEX52414100123 GASKET F.EXHAUST MANIFOLDX52412400138 GASKET0090374419 KEYSTONE COMPR RING5260160153 SLEEVEX00011779 GASKETXP52414800015 SEALING RINGX00E50203606/S0002 KNOCKING MODULEX52404200071 GASKET FOR CYLINDER HEADS-20056163 SEALING RINGX52607700009 ADAPTER JACKETEDEX59403700072 PISTONX59403800071/42 CONNECTING ROD5241420780 GASKET23540304/A1 GASKET KIT5240384210 CONROD BEARING SIZE 0-1X00043219 CONROD BEARING SIZE 0-15240332730 CRANKSHAFT BEARING DRIVINGX00016599 BEARING BUSHINGX59301300049 CYLINDER LINER STAGE 0XP59501800123 FILTER ELEMENT5260200305 HOUSING+ROTATING ASM5272010505 SHAFT WAT PUMPX59607700020 ADAPTER FOR HP LINEEX00035690 PISTONEX00008371 PISTONX00E50201372 TEMPERATURE SENSORX52404500056 SPARKPLUGX00E50200176 CONNECTION INTERFACE0001424957 RING EXH MANIFX52408300025 FUEL HAND PUMP5240980281 HOSEX52420300037 THERMAL ACTUATOR5240333407 BEARING THRUST/0-1/LO/SPT5240332608 BEARING THRUST/0-1/UP/RIL5110850960 PISTON RING X52499100815 4/2-WAY SOL. VALVEXP52712100006 FILTER ELEMENTXP52712100005 FILTER ELEMENTXP52712100003 FILTER ELEMENTXP52712100002 FILTER ELEMENT5205304069 SPEED TRANSMITTERX52421300004 ALTERNATOR0219976547 SEAL RING CRANKSHAFT FRONT0219976647 SEAL RING CRANKSHAFT REARXP59408300054 FILTER CARTRIDGEXP59400600004 GASKET KITXP52718300064 GASKET KITXP52718300065 CIRCLIP KITXP52718300060 PAPER INSERTX52808100004 FUEL DELIVERY PUMP8691840027 ROTOR COMPLETE5240530905 EXHAUST VALVE5240531101 INLET VALVE5240550550 BUSHINGX52499100259 ADJUSTING SCREWX52405400013 PUSHROD0000530926 VALVE KEEPER WEDGE5240530120 VALVE SPRING OUTER5240530122 VALVE SPRING INNER5240530805 EXHAUST VALVEX52404100226 INLET VALVEX52404200037 GASKET FOR CYLINDER HEADX52404200052 SEAL RING5240380471 CONROD BOLT0120373618 OIL CONTROL RING0090375019 TAPER FACE COMP RINGX00009806 RECTANGLR-SECT RING5240336702 CRANKSHAFT BEARING SIZE 0-15110804420 TURBINE WHEELX52403100003 CRANKSHAFT BEARING SIZE 0-15240336602 CRANKSHAFT BEARING LOWER HALFX00016024 CRANKSHAFT BEARING SIZE 0-05240332630 CRANKSHAFT BEARING AUX PTO END5240111380 GASKETX00027830 CYLINDER LINER SIZE 0 C235240510110 BEARING CAMSHAFT STD23540455 CENTRIFUGAL OIL FILTER ASM5240114210 CYLINDER LINER SIZE 0X59620600007 THERMAL ACTUATORX59699101095 BANJO SCREWX59620700004 SEAL CARRIERXP00A36400005 FILTER ELEMENTX52407800004 FLOW RESTRICT VALVE0299976748 O-RINGX52499100774 SUPPORT PLATEX52420200075 ROTARY SEALX51699100327 SHAFT SEAL RINGXP59420700027 IMPELLERX59407700014 ADAPTER5272010153 SPACER SLEEVEX00040012 SPEED SENSORX59610100061 BEARING BODY5110251976 WASHERX59610100101 THRUST BEARING8695860572 GASKET KITXP59420300091 SEAL RING5241870380 GASKETX52414100132 GASKET FOR EXHAUST PIPEX56912300043 ACTUATING CYLINDERX59420200235 RESTRICTORX59420200234 RESTRICTORX59420200233 RESTRICTORX59420200238 RESTRICTOR5240384110 CONROD BEARING UPPER HALFXP58420400009 GASKETX00041552 COOLER PLATE X52403800001 CONROD BEARINGXP52618300032 OIL FILTER ELEMENTX00008369 PISTON5410180233 DIAPHRAGM700429038003 O-RINGXP59307500002 O-RINGX52405500190 PROFILE GASKET F CYLINDX00044065 SLEEVE RUBBER
PART NUMBER XP56918300055
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION OVERFLOW VALVE
DIMENSIONS N/A
UNIT WEIGHT 0.173 KG
HS CODE 84814010
NATO-VERS.-NR. 4820124168535
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 4000 DIESEL ENGINE PARTS XP56918300055 OVERFLOW VALVE

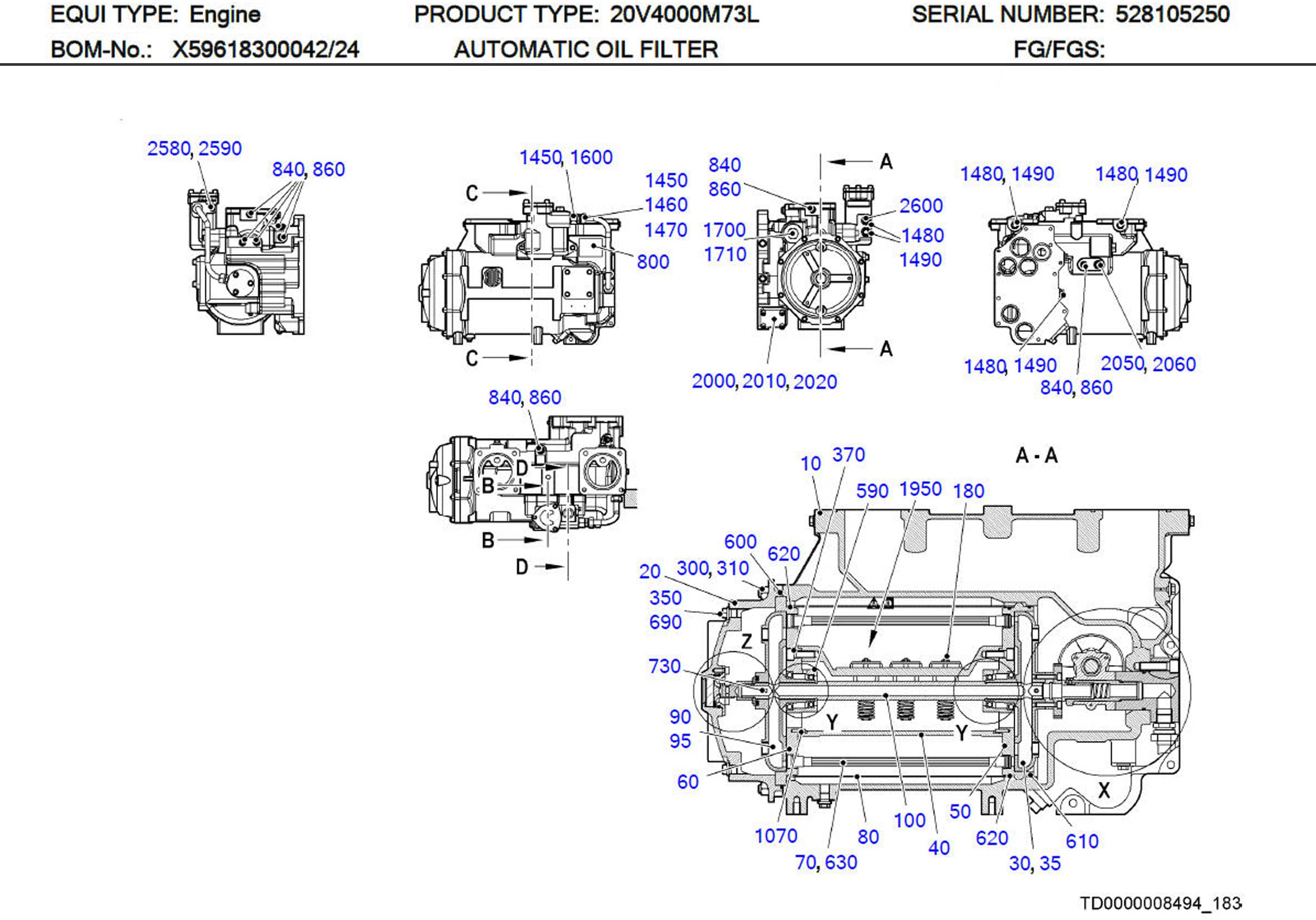

MTU XP56918300055 Technical Engineering Exploded View MTU XP56918300041 Technical Engineering Exploded View

MTU 4000 DIESEL ENGINE PARTS XP56918300055 OVERFLOW VALVE

C/N Description Part-Number Qty
10 FILTER HOUSING XP52818300010 001
20 COVER XP59618300009 001
30 PLUG 000906018000 002
35 OIL DISTRIBUTOR BOTTOM XP52818300006 001
40 CONNECTING PIPE XP59618300034 001
50 STRAINER BOTTOM XP52818300008 001
60 STRAINER TOP XP52818300009 001
70 OIL FILTER ELEMENT X00003620 048
80 STRAINER XP59618300010 001
90 PLUG 000906018000 002
95 OIL DISTRIBUTOR TOP XP52818300011 001
100 DISTRIBUTOR SHAFT XP52818300012 001
120 FLANGE FOR GEARBOX XP52818300022 001
130 WORM GEAR X00031719 001
140 VANE Z=2784402 001
150 GEAR Z=2705519 001
160 BUSHING Z=5300723 001
170 BUSHING Z=5060722 001
180 OVERFLOW VALVE XP56918300055 006
220 PRESSURE SPRING Z=2310058 001
230 GROOVED BALL BEARING XP52899100081 002
250 SCREW 000084004175 001
260 GROOVED PIN Z=2301130 001
270 ADJUSTING SCREW X00005731 001
300 STUD 000939012098 008
310 NUT HEX 000934012008 008
340 COVER Z=6402865 001
350 PLUG Z=2000187 002
360 SCREW XP52899100093 004
370 BOLT HEX SOC HD 000912010010 006
410 STUD X00031764 001
420 SCREW 000912006028 002
430 SCREW XP52899100094 004
470 WASHER Z=5008712 001
590 O-RING XP52899100082 002
600 O-RING XP52899100083 001
610 O-RING XP52899100084 001
620 O-RING XP52899100084 002
630 O-RING 700429015005 096
650 O-RING XP56918300033 001
660 O-RING 700429037001 001
680 O-RING XP56918300035 001
690 SEALING RING X00031805 002
700 SEALING RING X00012358 001
710 O-RING XP56918300032 001
730 ADJUSTING SCREW X00005731 001
740 SPRING WASHER 000127020202 001
750 SPRING WASHER 000127006203 003
760 BOLT HEX SOC HD 000912006084 003
770 NUT Z=30022 001
790 SCREW Z=2000115 001
800 PLATE Z=9402913 001
810 BUSHING COMPLETE XP59699100499 001
820 SLOTTED SPRING PIN XP52899100092 001
830 SIGHT GLASS X00005942 001
840 PLUG 000910014004 009
860 O-RING X00012369 009
1030 WASHER XP59618300011 001
1040 NUT XP59618300012 001
1070 SPRING PIN Z=2300010 002
1130 O-RING XP52718300071 001
1250 O-RING XP59618300013 001
1300 GROOVED BALL BEARING X00004931 002
1430 WASHER XP59618300014 001
1450 SEALING RING X00031897 003
1460 UNION 002353018002 002
1470 PIPE X00012390 001
1480 COPPER SEALING RING 007603022102 006
1490 THREADED PLUG 000910022003 006
1600 NOZZLE XP59618300015 001
1700 PLUG 000000002063 001
1710 SEALING RING 007603060101 001
1950 REMOVAL TOOL XP52699100138 001
2000 COVER XP52618300035 001
2010 SCREW XP52899100091 004
2020 700429069000 700429069000 001
2050 PLUG 000910018003 001
2060 O-RING FOR ON-ENGINE SENSO 0005333080 001
2070 PLUG 000910014004 002
2080 SEALING RING 007603015101 002
2110 VALVE HOUSING XP59618300036 001
2120 PLUG XP59618300037 001
2130 O-RING XP56918300041 001
2140 BALL XP59618300038 001
2150 PRESSURE SPRING XP59618300039 001
2400 PRESSURE SPRING XP52718300044 001
2500 FILTER HOUSING XP59618300018 001
2510 COVER X00005748 001
2520 O-RING 700429069000 001
2530 SCREW XP52899100091 003
2540 FILTERING SCREEN XP52718300043 001
2570 WASHER A33X39 COP METALLIC 007603033100 001
2580 PLUG Z=2000187 001
2590 SEALING RING X00031805 001
2600 SCREW 000912012016 002
2610 O-RING 700429044001 001

XP56918300055 SUPERSEDED PART AND EFFECTIVE DATE

XP56918300055 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 XP56918300055 XP56918300072 N/A
02 XP56918300055 XP56918300055 2021/02/10

MTU 4000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 4000 M63 1000 1800 170/210 (6.7/8.3)
16V 4000 M53R 1520 1600 170/210 (6.7/8.3)
12V 4000 M64 1398 1800 170/210 (6.7/8.3)
12V 4000 M65R 1492 1600 170/210 (6.7/8.3)
16V 4000 M55RN 1492 1600 170/210 (6.7/8.3)
16V 4000 M54 1685 1800 170/210 (6.7/8.3)
16V 4000 M65R 2000 1600 170/210 (6.7/8.3)
20V 4000 M65L 3200 1800 170/210 (6.7/8.3)
20V 4000 M73 3200 1970 170/210 (6.7/8.3)
16V 4000 M93L 3440 2100 170/210 (6.7/8.3)
20V 4000 M73L 3540 2050 170/210 (6.7/8.3)
20V 4000 M93 3900 2100 170/210 (6.7/8.3)
12V 4000 M53R 1140 1600 170/210 (6.7/8.3)
12V 4000 M63 1500 1800 170/210 (6.7/8.3)
16V 4000 M65L 2176 1800 170/210 (6.7/8.3)
16V 4000 M63L 2240 1800 170/210 (6.7/8.3)
8V 4000 M53R 746 1600 170/210 (6.7/8.3)
8V 4000 M55RN 746 1600 170/210 (6.7/8.3)
