X59420200238 RESTRICTOR

Other
Other X52420200075 ROTARY SEAL X51699100327 SHAFT SEAL RING XP59420700027 IMPELLER 5272010153 SPACER SLEEVE X59407700014 ADAPTER 23540455 CENTRIFUGAL OIL FILTER ASM X00040012 SPEED SENSOR 5110251976 WASHER X59610100061 BEARING BODY X59610100101 THRUST BEARING 8695860572 GASKET KIT XP59420300091 SEAL RING 5241870380 GASKET X52414100132 GASKET FOR EXHAUST PIPE X56912300043 ACTUATING CYLINDER X59420200235 RESTRICTOR X59420200234 RESTRICTOR X59420200233 RESTRICTOR X59420200238 RESTRICTOR 5240384110 CONROD BEARING UPPER HALF XP58420400009 GASKET X00041552 COOLER PLATE X52403800001 CONROD BEARING XP52618300032 OIL FILTER ELEMENT X00008369 PISTON 5410180233 DIAPHRAGM 700429038003 O-RING XP59307500002 O-RING X52405500190 PROFILE GASKET F CYLIND EX59403700072 PISTON X59403800071/42 CONNECTING ROD 5241420780 GASKET 23540304/A1 GASKET KIT 5240384210 CONROD BEARING SIZE 0-1 X00043219 CONROD BEARING SIZE 0-1 5240332730 CRANKSHAFT BEARING DRIVING X00016599 BEARING BUSHING X59301300049 CYLINDER LINER STAGE 0 XP59501800123 FILTER ELEMENT 5260200305 HOUSING+ROTATING ASM EX00008371 PISTON X00E50201372 TEMPERATURE SENSOR X52404500056 SPARKPLUG X00E50200176 CONNECTION INTERFACE 0001424957 RING EXH MANIF X52408300025 FUEL HAND PUMP 5240980281 HOSE X00044065 SLEEVE RUBBER X52420300037 THERMAL ACTUATOR 5240333407 BEARING THRUST/0-1/LO/SPT 5240332608 BEARING THRUST/0-1/UP/RIL 5110850960 PISTON RING X52499100815 4/2-WAY SOL. VALVE XP52712100006 FILTER ELEMENT XP52712100005 FILTER ELEMENT XP52712100003 FILTER ELEMENT XP52712100002 FILTER ELEMENT 5205304069 SPEED TRANSMITTER X52421300004 ALTERNATOR 0219976547 SEAL RING CRANKSHAFT FRONT 0219976647 SEAL RING CRANKSHAFT REAR 5240114210 CYLINDER LINER SIZE 0 XP59408300054 FILTER CARTRIDGE XP59400600004 GASKET KIT XP52718300064 GASKET KIT XP52718300065 CIRCLIP KIT XP52718300060 PAPER INSERT X52808100004 FUEL DELIVERY PUMP 8691840027 ROTOR COMPLETE 5240530905 EXHAUST VALVE 5240531101 INLET VALVE 5240550550 BUSHING X52499100259 ADJUSTING SCREW X52405400013 PUSHROD 0000530926 VALVE KEEPER WEDGE 5240530120 VALVE SPRING OUTER 5240530122 VALVE SPRING INNER 5240530805 EXHAUST VALVE X52404100226 INLET VALVE X52404200037 GASKET FOR CYLINDER HEAD X52404200052 SEAL RING 5240380471 CONROD BOLT 0120373618 OIL CONTROL RING 0090375019 TAPER FACE COMP RING X00009806 RECTANGLR-SECT RING 5240336702 CRANKSHAFT BEARING SIZE 0-1 X52403100003 CRANKSHAFT BEARING SIZE 0-1 5240336602 CRANKSHAFT BEARING LOWER HALF X00016024 CRANKSHAFT BEARING SIZE 0-0 5240332630 CRANKSHAFT BEARING AUX PTO END 5240111380 GASKET X00027830 CYLINDER LINER SIZE 0 C23 5240510110 BEARING CAMSHAFT STD
PART NUMBER X59420200238
ENGINE TYPE MTU 4000 ENGINE
DESCRIPTION RESTRICTOR
DIMENSIONS N/A
UNIT WEIGHT 0.011 KG
HS CODE 84099900
NATO-VERS.-NR. 4730124000838
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

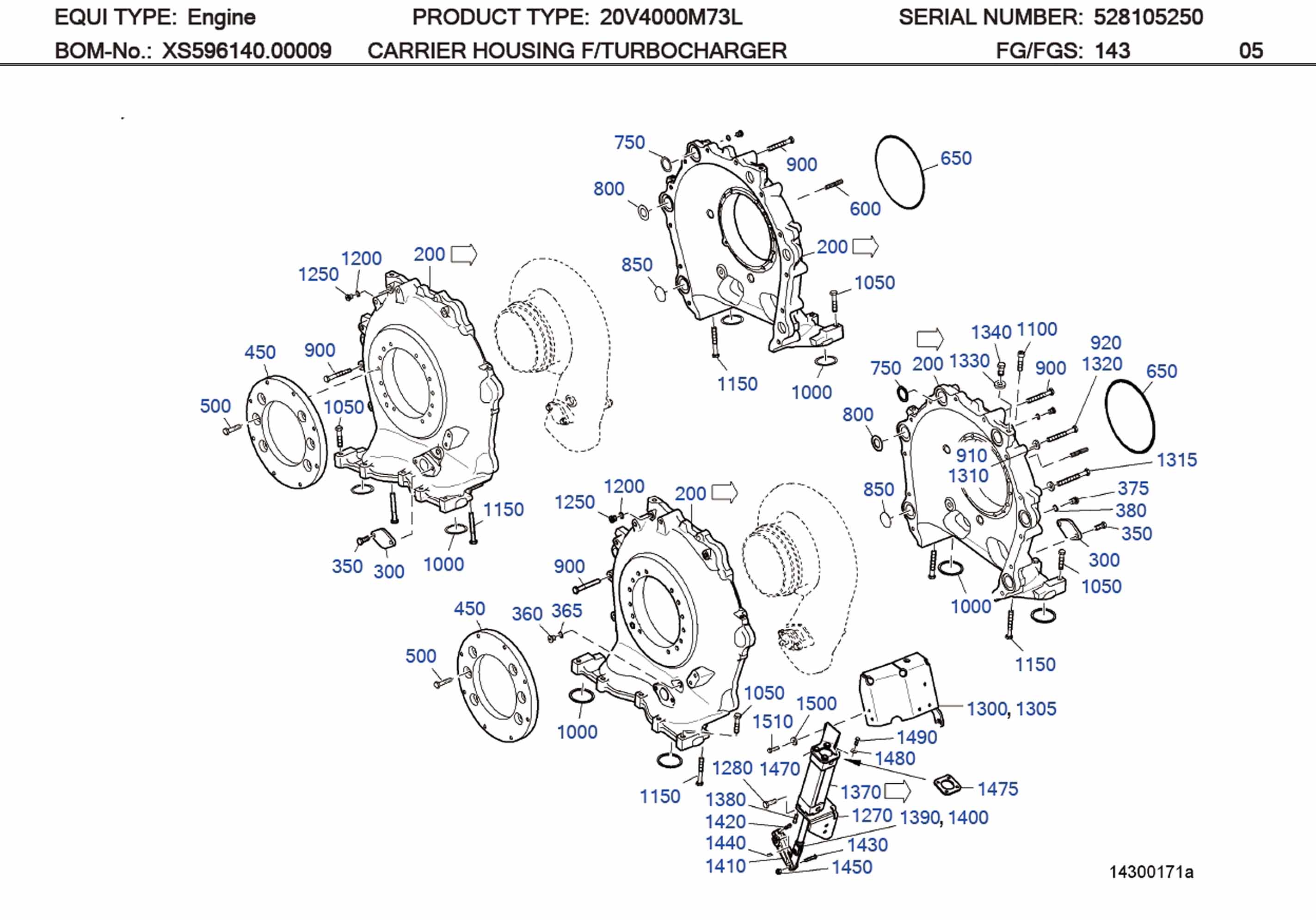

MTU 4000 Parts X59420200238 RESTRICTOR

MTU 4000 Parts X59420200238 RESTRICTOR

MTU 4000 Parts X59420200238 RESTRICTOR

C/N Description Part-Number Qty
200 CARRIER HOUSING X59414300006 008
300 COVER 5261420091 005
350 HEX SCREW 000000003021 010
360 SCREW PLUG 000908014001 004
365 SEAL RING 007603014102 004
375 SCREW PLUG 000908014001 004
380 SEAL RING 007603014102 004
450 INTERMEDIATE FLANGE X52814300005 004
500 HEX SCREW 304017010035 024
600 STUD 000939010115 024
650 O-RING 700429200002 004
750 RESTRICTOR X59420200233 008
800 RESTRICTOR X59420200234 008
850 RESTRICTOR X59420200235 008
900 HEX SCREW 304017010034 039
910 WASHER 007349010002 003
920 HEX SCREW 000000003510 003
1000 RESTRICTOR X59420200238 016
1050 HEX SCREW 000000001042 038
1100 BOLT HEX SOC HD 000912010016 002
1150 HEX SCREW 000000000906 016
1200 WASHER A COP 007603012102 012
1250 THREAD PLUG 000908012003 012
1270 RETAINER F/TURBO OIL SUPPLY X59418500093 003
1280 HEX SCREW 000000003021 006
1300 RETAINER F/TURBO OIL SUPPLY X59418500019 002
1305 RETAINER X59418500032 001
1310 WASHER 007349010002 006
1315 HEX SCREW 204014010006 001
1320 HEX SCREW 000000003510 005
1330 WASHER 007349013002 003
1340 HEX SCREW 000000003925 003
1370 ACTUATING CYLINDER X56912300043 003
1380 HEX SCREW 304017006063 012
1390 CLEVIS X00041795 003
1400 ARTICULATED BEARING FOR FLAP CONTROL X52499100007 003
1410 LEVER F/EXH FLAP CONTROL X52810100084 003
1420 SCREW 000912006018 003
1430 HEX SCREW 304017008084 003
1440 PIN SPRING 001481005030 003
1450 NUT 5069900251 003
1470 RETAINER X59418500052 003
1475 SPACER X59499100117 003
1480 WASHER 007349006004 012
1490 HEX SCREW 304017006065 012
1500 WASHER 007349008002 006
1510 HEX SCREW 204017008011 006

X59420200238 SUPERSEDED PART AND EFFECTIVE DATE

X59420200238 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 X59420200238 X00003043 N/A
02 X59420200238 X59420200238 2011/12/01

MTU 4000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 4000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 4000 M63 1000 1800 170/210 (6.7/8.3)
12V 4000 M63 1500 1800 170/210 (6.7/8.3)
12V 4000 M65L 1680 1800 170/210 (6.7/8.3)
16V 4000 M63L 2240 1800 170/210 (6.7/8.3)
16V 4000 M65L 2240 1800 170/210 (6.7/8.3)
8V 4000 M54R 746 1600 170/210 (6.7/8.3)
8V 4000 M55RN 746 1600 170/210 (6.7/8.3)
8V 4000 M54 895 1800 170/210 (6.7/8.3)
8V 4000 M53 950 1800 170/210 (6.7/8.3)
12V 4000 M55R 1119 1600 170/210 (6.7/8.3)
12V 4000 M53R 1140 1600 170/210 (6.7/8.3)
12V 4000 M54 1193 1800 170/210 (6.7/8.3)
12V 4000 M64 1398 1800 130/150 (5.1/5.9)
12V 4000 M93 2340 2100 165/190 (6.5/7.5)
12V 4000 M73L 2160 2050 170/210 (6.7/8.3)
16V 4000 M73 2560 1970 170/210 (6.7/8.3)
12V 4000 M93L 2580 2100 170/210 (6.7/8.3)
20V 4000 M65L 2800 1800 170/210 (6.7/8.3)
